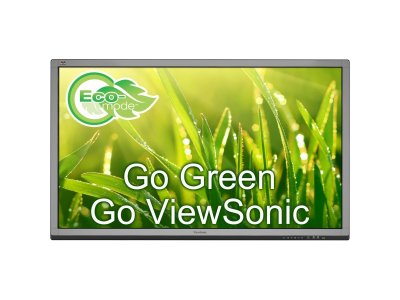

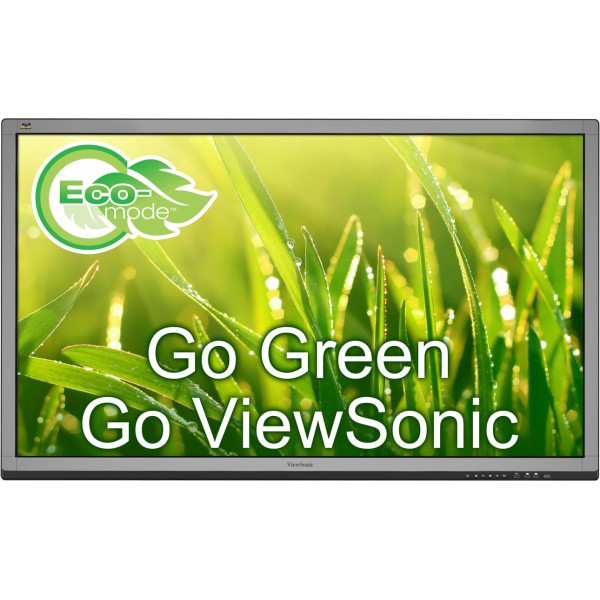

Monitor dotykowy Viewsonic 70’’ Interactive Large Format Display CDE7060T

Name: Monitor dotykowy Viewsonic 70’’ Interactive Large Format Display CDE7060T
Brand: ViewSonic
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

downloadPobierz kartę produktu

SPECIFICATIONS

LCD PANEL
Panel Size : 70” (69.5” viewable)
Type/ Tech : TFT LCD Module with LED Backlight
Display Area (mm) : 1538.88(H) x 865.62(V) (69.5” diagonal)
Aspect Ratio : 16:9
Resolution : 1920x1080
Colors : 1 billion colors
Brightness : 350 nits (typ.)
Contrast Ratio : 4000:1 Typ.
Response Time : 6ms
Viewing Angles : H = 176, V = 176
Backlight : LED
Backlight Life : 50,000 Hours Typ
Hardness : 7H
TOUCH
Type/ Tech : Infrared
Touch Resolution : 32767 x 32767
Touch Point : 10 point for gesture, 5 point for writing
Response Time : 15ms MAX.
System : Windows8/Windows7/WindowsXP/Vista/Linux/Mac/Android/Wince/Chrome
INPUT
HDMI : x3
RGB / VGA : x3
DisplayPort : N/A
DVI : N/A
RF (TV) : N/A
Audio : x3 (PC audio in)
CVBS : x1
YPbPr : N/A
MIC(Microphone) : N/A
RS232 : x1
SD/SDHC : N/A
OPS / ViewSonic PC Module Slot : N/A / x1 (for NMP710)

OUTPUT
RGB / VGA : x1
DisplayPort : N/A
DVI : N/A
Audio : N/A
CVBS : N/A
YPbPr : N/A
SPIDF : x1 (optical)
RS232 : N/A
Remote Control : N/A
LAN
RJ45 : x1
USB
Type A : x3 (2.0); x1 (3.0)
Type B : x1 (for touch)
Mini USB : N/A
Micro USB : N/A
SPEAKERS
10W x 2
BUILT-IN PC
Processor : ARM Cortex A9 Dual Core CPU
Graphic : ARM Mali400 MP4
Sound Card : N/A
Memory : 1.5GB
Storage : 8GB
Networking : Integrated 10/100/1000M Adaption
COMPATIBILITY
RGB PC/HDMI PC : Refer to timing table
CVBS : 480i
S-Video : N/A
YPbPr : N/A
HDMI : 480i, 480p,720p, up to 1080
CONTROLS
Physical- Top OSD : Power, Home, Return, Setting, VOL-, VOL+ INPUT: PC, Android, AV, VGA1, VGA2, VGA3, HDMI1, HDMI2, HDMI3, HDMI4 LIGHT: 1~10 VOLUME: 0~100 VGA: H Position, V Position, Phase, Clock, Zoom, Auto Adjust, Writing Mode PICTURE: Brightness, Contrast, Hue, Sharpness, Color Temp, Zoom, Writing Mode
Embedded Linux OS : SETTING: Ethernet checking, Sound, Display, Apps, Language&input, Date&time, About device ANNOTATION: Annotation menu, Return, Main, Pen, ViewBoard Lit, Open file, Screenshot, close menu INTERFACE: ViewBoard Lit, Folders, Browser, PIP, Settings, Apps
Multimedia : IMAGE: Close, Zoom in, Zoom out, Previous, Play/Pause, Next, Counterclockwise, Clockwise, setting AUDIO: Close, Previous, Play/Pause, Next, Playlist, Loop, Random, Single VIDEO: Close, Previous, Fast backward, Play/Pause, Fast forward, Next, Playlist
POWER
Voltage : 100-240VAC +/- 10% Wide Range
Consumption : "On" 350W(typ), "Power Saving" < 0.5 W, "Off" (Suspend) < 0.5 W
ERGONOMICS
Tilt : N/A
Wall Mount (VESA® ) : 400 x 400 (M8 x 60mm)With Wall Mount Spacer
OPERATING CONDITIONS
Temperature (º C) : 32°F to 104°F (0°C to 40°C)
Humidity : 20% ~ 80% non-condensing
DIMENSIONS (W X H X D)
Physical (inch / Mm) : 65.0 x 39.3 x 3.9 / 1650 x 999 x 98
Packaging (inch / Mm) : 71.7 x 45.1 x 11.0 /1820 x 1145 x 280
WEIGHT
Net (lb / Kg) : 156.53 / 71
Gross (lb / Kg) : 191.80 / 87
WARRANTY
**Warranty offered may differ from market to market
WHAT'S IN THE BOX?
• CDE Interactive Large Format Display Monitor
• VGA cable
• Power cable x 4
• Remote control
• USB cable
• Audio cable
• Touching pen x 3
• User manual CD wizard
• RS232 adapter
• Wall Mount Kit: WMK-047 (in separate box, for Europe only)
