SPECIFICATIONS

• LCD PANEL

  Panel Size : 65"

  Type/ Tech : TFT LCD Module with DLED Backlight

  Display Area (mm) : 1428.48 (H) x 803.52 (V)

  Aspect Ratio : 16:09

  Resolution : 3840x2160 @60Hz

  Colors : 1.07B colors

  Brightness : 350 nits (typ.)

  Contrast Ratio : 4000:1 (typ.)

  Response Time : 8 ms

  Viewing Angles : H = 178, V = 178 (typ.)

  Backlight : DLED

  Backlight Life : 30,000 Hours Min.

  Hardness : 3H

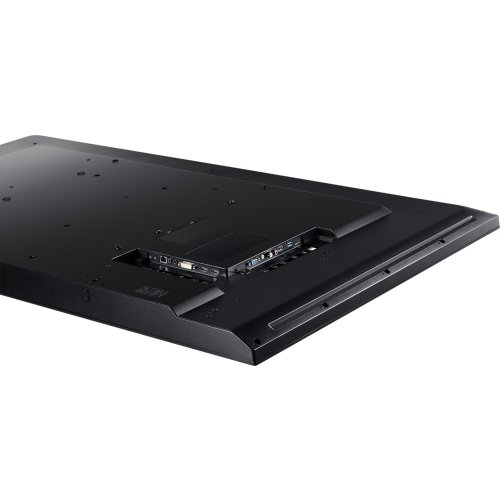

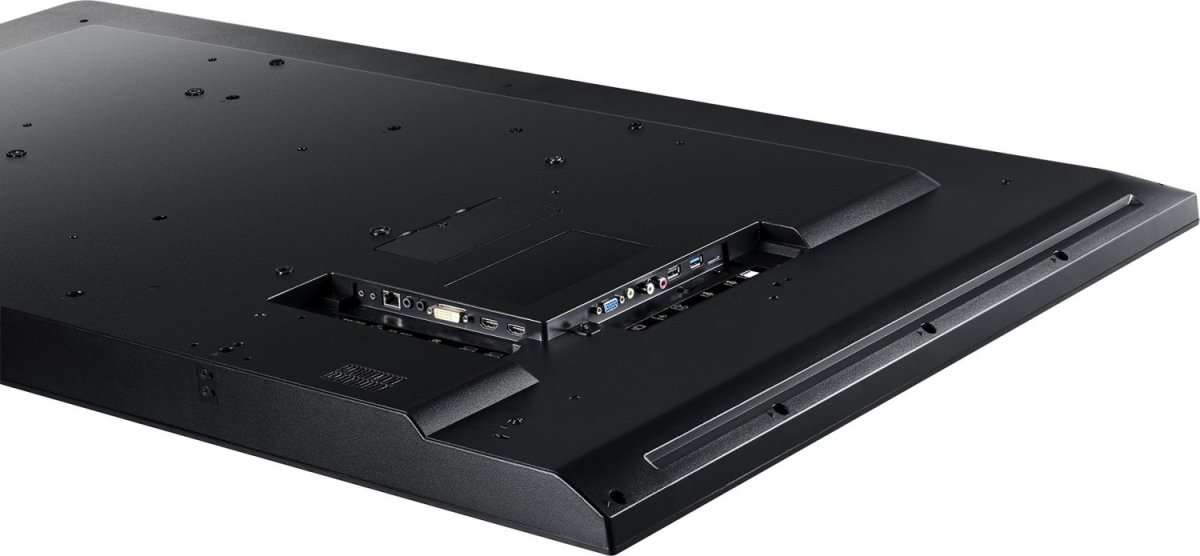

• INPUT

  HDMI : x 4

  RGB / VGA : x 1

  DisplayPort : x 1

  Audio : x1 PC audio (3.5 mm)

  RS232 : x 1

  PC Slot : x 1 (optional VPC12-WPO)

  IR : x 1

• OUTPUT

  RS232 : x 1

  IR : x 1

• LAN

  RJ45 : x 1

• USB

  Type A : x 1 for 5V/2A

  2.0 Type A : x 2 (USB Playback)

  3.0 Type A : x 1 (USB Playback)

• SPEAKERS

  10W x 2

• COMPATIBILITY

  VGA : 1920 x 1080

  DisplayPort : 480i, 480p,720p,1080i,1080p, 4K2K@30Hz

  HDMI : 480i, 480p,720p,1080i,1080p, 4K2K@60Hz

• POWER

  Voltage : 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz

  Consumption : Normal 165 W, Max 295 W

• ERGONOMICS

  Wall Mount (VESA® ) : 400 x 400mm ; Screw: M6*(10+X) mm. (X=thickness of wall mount plate)

• OPERATING CONDITIONS

  Temperature (º C) : 5°C to 40°C

  Humidity : 20% ~ 80% non-condensing

• DIMENSIONS (W X H X D)

  Physical (mm / Inch) : 1458.7 x 938.8 x 540 mm / 57.43 x 36.96 x 21.26 in. (with Stand)

  Physical W/o Stand (mm / Inch) : 1458.7 x 834.7 x 81.6 mm / 57.43 x 32.86 x 3.21 in. (w/o Stand)

  Packaging (mm / Inch) : 1655 x 1078 x 280 mm / 65.16 x 42.44 x 11.02 in

• WEIGHT

  Net (kg / Lb) : 28.9 kg / 63.71 lbs (with Stand)

  Net W/o Stand (kg / Lb) : 24.8 kg / 54.67 lbs (w/o stand)

  Gross (kg / Lb) : 34.84 kg / 76.80 lbs

• REGULATIONS

  Standard : US NRTL with Canada, FCC, Energy star, Mexico CoC and energy , CE, CB, RoHS, ErP, REACH, WEEE, RCM

• WHAT'S IN THE BOX?

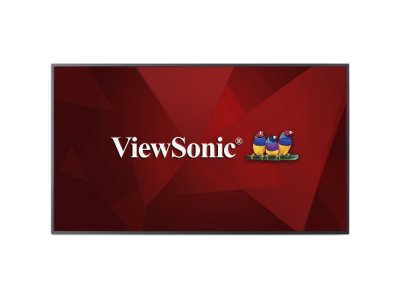

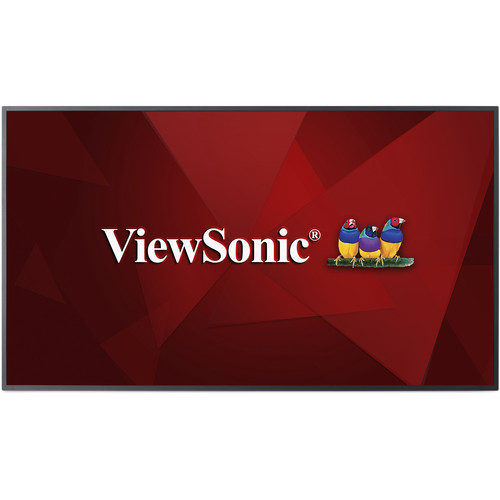

  1. CDE6510 commercial display

  2. Remote Control with batteries

  3. User manual CD wizard

  4. Quick Start Guide

  5. Power Cables

  6. RS232 cable

  7. RS232 daisy chain cable (2.4mm – 2.4mm)

  8. IR sensor cable
