2 ports Signal format: H: 15 kHz to 45 kHz V: 48 Hz to 60 Hz
DC IN connector
DC5V/24V (output impedance 0.05 ohms or less)
Output
Composite output connector
BNC type (×1) Loop-through, with 75 ohms automatic terminal function
Y/C output connector
4-pin mini-DIN (×1) Loop-through, with 75 ohms automatic terminal function
RGB/component output connectors
BNC type (×3) Loop-through, with 75 ohms automatic terminal function
External synchronized output connector
BNC type (×3) Loop-through, with 75 ohms automatic terminal function
General
Power

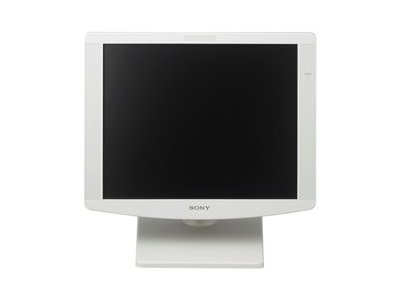

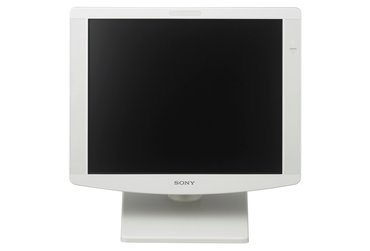

LCD monitor (LMD-1951MD) AC 100-240 V, 50/60 Hz, 0.92 A-0.40 A DC IN: 24 V 3.5 A 5 V 0.030 A (Supplied from AC adaptor) AC Adaptor (Sony, AC-110MD) (optional) AC IN: 100 V-240 V, 50/60 Hz, 1.53 A-0.58 A DC OUT: 24 V 5.0 A 5 V 0.060 A
Power consumption
Maximum: approx. 85 W (when two BKM-229X are installed)
Operating conditions
Temperature
0 °C to 35 °C (32 °F to 95 °F)
Recommended temperature
20 °C to 30 °C (68 °F to 86 °F)
Humidity
30% to 85% (no condensation)
Pressure
700 hPa to 1060 hPa
Storage and transport temperature
–20 °C to +60 °C (–4 °F to +140 °F)
Storage and transport humidity
0% to 90% (no condensation allowed)
Storage and transport pressure
700 hPa to 1060 hPa
Dimensions (W x H x D)
455.8 x 368.3 x 101.7 mm (18 x 14 5/8 x 4 1/8 inches) (without a stand) 455.8 x 435.7 x 302 mm (18 x 17 1/4 x 12 inches) (with SU-560 optional stand)
Mass
6.7 kg (14 lb 12 oz) (when the optional stand and the input adaptor are not installed) 7.1 kg (15 lb 10 oz) (when the optional stand is not installed and two BKM-229X are installed)
Accessories supplied
AC power cord (1), AC plug holder (2), Instructions for Use (1), CD-ROM (1), Using the CD-ROM Manual (1), Quick Reference(1), When you First Use the Monitor (1), Sales Companies Guide (1)
