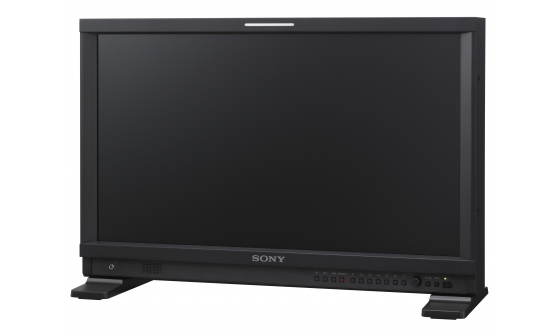

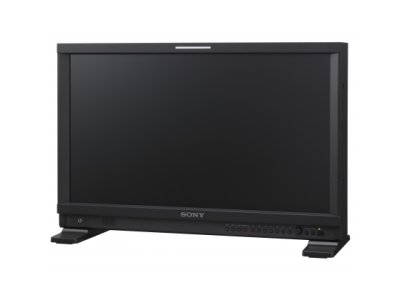

Monitor LCD Sony LMD-2041W

Name: Monitor LCD Sony LMD-2041W
Brand: Sony
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

downloadPobierz kartę produktu

Technical Specifications

Picture Performance

Panel	a-Si TFT Active Matrix LCD
Picture Size (Diagonal)	508 mm 20 inches
Effective Picture Size (H x V)	442.8 x 249.1 mm 17 1/2 x 9 7/8 inches
Resolution (H x V)	1600 x 900 pixels
Aspect	16:9
Pixel Efficiency	0.9999
Backlight	LED
Colors	Approx.16.7 million colors
Viewing Angle (Panel Specification)	89°/89°/89°/89° (typical) (up/down/left/right contrast 10:1)
Normal Scan	0% scan
Over Scan	5% over scan

Input

Composite Input	BNC (x1), 1 Vp-p ±3dB, sync negative
SDI Input	BNC (x2)
HDMI Input	HDMI (x1) (HDCP correspondence)
Audio Input	Stereo mini jack (x1), -5 dBu 47 kΩ or higher
Parallel Remote	Modular connector 8-pin (x1) (Pin-assignable)
Serial Remote (LAN)	RJ-45 (x1) (Ethernet, 10BASE-T/100BASE-TX)
DC Input	XLR-type 4-pin (male) (x1), 12V DC (output impedance 0.05 Ω or less)

Output

Composite Output	BNC (x1), Loop-through, with 75 Ω automatic terminal function
SDI Output	BNC (x1), output signal amplitude: 800 mVp-p ±10%, output impedance: 75 Ω unbalanced
Audio Monitor Output	Stereo mini jack (x1)
Speaker (Built-in) Output	1.0 W (Monaural)
Headphone Output	Stereo mini jack (x1)

General

Power Requirements	100 V to 240 V AC, 0.8 A to 0.4 A, 50/60 Hz 12 V DC, 4.4 A
Power Consumption	Approx. 66 W (max.)
Inrush Current	(1) Maximum possible inrush current at initial switch-on (Voltage changes caused by manual switching): 57 A peak, 0.3 A r.m.s. (240V AC) (2) Inrush current after a mains interruption of five seconds (Voltage changes caused at zero-crossing): 46 A peak, 0.2 A r.m.s. (240V AC)
Operating Temperature	0°C to 35°C (Recommended: 20°C to 30°C) 32°F to 95°F (Recommended: 68°F to 86°F)
Operating Humidity	30% to 85% (no condensation)
Storage/Transport Temperature	-20°C to +60°C -4°F to +140°F
Storage/Transport Humidity	0% to 90%
Operating/Storage/Transport Pressure	700 hPa to 1060 hPa
Dimensions (W x H x D) [*1]	482.6 x 314.8 x 100.2 mm 482.6 x 332.8 x 171.4 mm (with supplied monitor feet) 482.6 x 452.0 x 269.9 mm (with SU-561 optional stand) 19 x 12 1/2 x 4 inches 19 x 13 1/8 x 6 3/4 inches (with supplied monitor feet) 19 x 17 7/8 x 10 3/4 inches (with SU-561 optional stand)
Mass	Approx. 6.7 kg (without a monitor stand) Approx. 14 lb 12 oz (without a monitor stand) Approx. 6.9 kg (with supplied monitor feet) Approx. 15 lb 3 oz (with supplied monitor feet) Approx. 8.8 kg (with monitor stand SU-561) Approx. 19 lb 6 oz (with monitor stand SU-561)
Supplied Accessories	AC power cord (1) AC plug holder (1) Mounting bracket (2) (including 8 screws) Monitor foot (2) (including 6 screws) Operating Instructions (1) CD-ROM (1) Using the CD-ROM Manual (1)
Optional Accessories	SU-561 Monitor Stand
