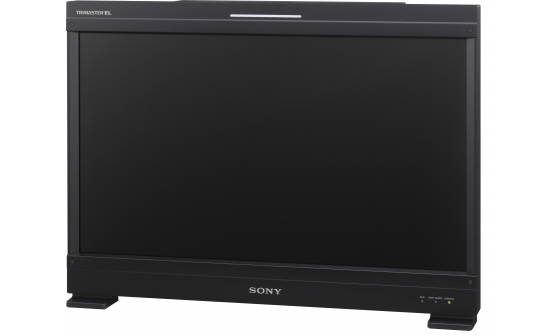

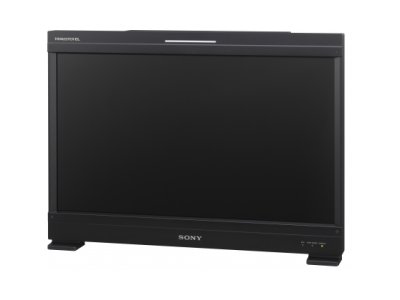

Monitor Full-HD Broadcast OLED Sony BVM-E170A
OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Specyfikacja techniczna
Picture Performance
Panel |
OLED panel |
Picture size (diagonal) |
623.4 mm 24 5/8 inches |
Effective picture size (H x V) |
543.4 x 305.6 mm 21 1/2 x 12 1/8 inches |
Resolution (H x V) |
1920 x 1080 pixels (Full HD) |
Aspect |
16:9 |
Pixel efficiency |
99.99% |
Panel drive |
RGB 10-bit |
Panel frame rate |
48 Hz / 50 Hz / 60 Hz / 72 Hz / 75 Hz (48 Hz, 60 Hz, and 72 Hz are also compatible with 1/1.001 frame rates) |
Viewing angle (panel specification) |
89°/89°/89°/89° (typical) (up/down/left/right contrast >10:1) |
Color temperature |
D65, D93, and user |
Standard luminance |
100 cd/m2 (Preset1 to Preset5) (100% white signal input) |
Color space (color gamut) |
ITU-R BT.709, EBU, SMPTE-C, F250 / F170 Native*1, The BVM-F250 / BVM-F170 individual chromaticity points: R (x = 0.681, y = 0.319) / G (x = 0.189, y = 0.724) / B (x= 0.141, y= 0.051) (typical) |
Input
SDI |
BNC (x2) |
HDMI |
HDMI (x1) (HDCP correspondence, Deep Color correspondence) |
DisplayPort |
DisplayPort connector (x1)*2 |
Option port |
4 ports |
Parallel remote |
D-sub 9-pin (female) (x1) |
Serial remote (LAN) |
Ethernet (10BASE-T/100BASE-TX), RJ-45 (x1) |
Output
SDI |
BNC (x1) |
DC 5 V out |
Circle 4-pin (female) (x1) |
General
Power requirement |
AC 100 V to 240 V, 1.6 A to 0.8 A, 50/60 Hz |
Power consumption |
Approx. 145 W (max.), Approx. 72 W (average power consumption in the default status) |
Operating temperature |
0°C to 35°C (32°F to 95°F), Recommended: 20°C to 30°C (68°F to 86°F) |
Operating humidity |
0% to 90% (no condensation) |
Storage and transport temperature |
-20°C to +60°C (-4°F to +140°F) |
Storage and transport humidity |
0% to 90% |
Operating, storage, and transport pressure |
700 hPa to 1060 hPa |
Dimensions (W x H x D) |
576.0 x 424.0 x 148.0 mm 22 3/4 x 16 3/4 x 5 7/8 inches |
Mass |
13.0 kg 28 lb 11 oz |
Supplied Accessories
|
AC power cord |
|
AC plug holder |
|
bracket |
|
Operation Manual |
|
CD-ROM |
|
Using the CD-ROM |
