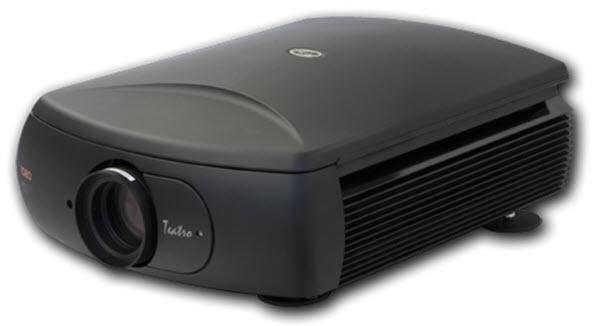

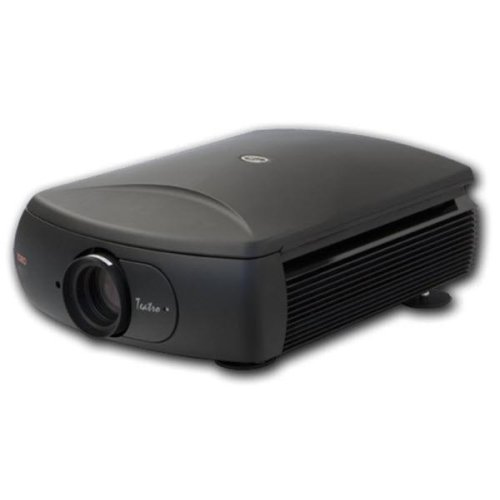

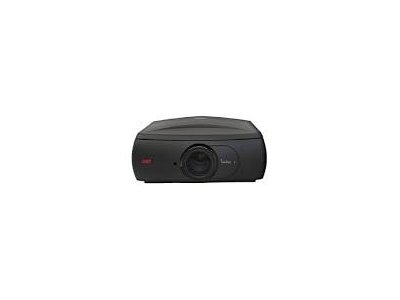

Projektor Sim2 TEATRO 80

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Projektor Sim2 TEATRO 80

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu

LIGHT ENGINE

DLP® type 3 x DMD 0.95” 1080p DarkChip4™
Resolution 1920 x 1080 pixels
Lens High quality, high resolution optics with both motorized zoom and focus adjustments and motorized horizontal/vertical shift
Lamp power & average life time 2 x 300W (dimmable to 250W), 1500 hours* normal mode or 2000 hours* eco mode
Brightness 7000 ANSI lumens with Super High Brightness lenses
  4500 ANSI lumens with Super High Contrast lenses

LENS OPTIONS

Lens Type L0 Throw ratio 0.67:1 (Fixed wide angle)
Lens Type L1 Throw ratio 1.12:1 (Fixed wide angle)
Lens type L2 Throw ratio 1.39 - 1.87:1
Lens type L3 Throw ratio 1.87 - 2.56:1
Lens type L4 Throw ratio 2.56 - 4.16:1
Lens type L5 Throw ratio 4.16 - 6.96:1

Notes Super High-Contrast (SHC) lenses available for 0.67:1, 1.12:1 and all zoom lenses.
  Super High-Brightness (SHB) lenses (all TRs) available upon request.
  With SHB lenses the optical performance changes Brightness: 7000 Lumens Contrast ratio 2500:1

INSTALLATION

Lens shift V+70% / -30%; H +/-15% - not available on lenses type L0 and L1
Digital keystone adjustment V+/-22°
Picture size (inches diagonal) 50-300
Aspect ratio 4:3, 16:9 Anamorphic, LetterBox, panoramic, pixel to pixel + 3 custom-user adjustments

ELECTRONICS

Horiz. & vertical scan freq. 15-80kHz/48-100Hz; 24 Hz (1080p only)
Video and Graphic standards PAL (B,G,H,I,M,N,60); SECAM; NTSC 3,58; NTSC 4,43 automatically selected; HDTV: ATSC (480p, 720p, 1080i, 1080p); EU 576p + 1080i 50Hz + 1080@24Hz;
PC graphic VGA, SVGA, XGA, SXGA, UXGA
Contrast ratio (Full ON/ Full OFF) >8000:1
Format Board 10 Bit
Video processor built in
Special adjustments Dynamic Noise & Spatial Noise Reduction

INPUTS/OUTPUTS

Analog 1 x Composite Video (RCA)
  1 x S-Video (mini Din 4 pin)
  1 x RGBS/YCrCb (4x RCA)
  1 x RGBHV/YCrCb (5x BNC)
Digital 6 x HDMI – HDCP compliant (6x HDMI)
  1 x DVI (1x DVI-D)
  1 x HD-SDI (1x BNC)
  2 x VGA (DB15)
Control 1 x RS232 (DB9)
  1 x USB connector (USB)
  1 x LAN (RJ45)
Miscellaneous 2 x VGA (DB15)
  2 x OUT 12V 100mA (via Jack)

GENERAL SPECIFICATIONS

Software control upgradable via RS232 serial interface, USB and LAN
Mains voltage range 100-240Vac ±10% (48/62Hz) Power consumption
Weight approx. 45 Kg (99.2 lbs)
Dimensions (WxHxD) 570x260x730mm (22.4”x10.24”x28.7”)

ACCESSORIES

Supplied Installation and User Manual
  AC power cords (2m - 6.6 ft)
  Backlit remote control and batteries
  Easy CinemaCalibration software
Optional Ceiling bracket
  2.35:1 Anamorphic lens systems (fixed or
motorized)
(*) Lamp life: the hours quoted have been measured in a lab under ideal test conditions. Lamp life varies depending on usage conditions and the surrounding environment. This is an average value that cannot be guaranteed and is not protected by warranty.
The DLP® logo and DLP® medallion are trademarks of Texas Instruments. Due to constant product development, specifications and design might be subject to change without notice.
