LIGHT ENGINE
| DLP® Type |
3 Chip DMDs 0,95” 1080p DC4 |
| Resolution |
1920x1080 pixels |
| Lens |
High quality, high resolution improved optics for higher contrast and better black level with motorized zoom and focus adj. |
| Special features |
Puremotion 3D technology |
| |
Puremotion 2D for fast action materials |
| |
Puremovie 2D |
| Contrast ratio (Full ON/ Full OFF) |
>10,000:1 |
| Lamp power consumption |
260W dimmable to 230W |
| Brightness(**) |
up to 2,600 Ansi Lumens (in 2D mode) |
| Lamp life expectancy(*) |
2000 hours typical in standard power mode; 3000 hours in ECO mode |
INSTALLATION
| Throw ratio standard lens |
1.75-2.48:1 (type T2) |
| Throw ratio optional lenses |
1.37-1.66:1 (typ. T1) |
| |
2.6-3.9:1 (typ. T3) |
| Optical shift |
Vertical up to +50%, down -10% max. from screen center (based on image height) |
| Digital keystone adjustment |
+/-18˚ |
| Picture size (inches diagonal) |
50-300 |
| Aspect ratio |
4:3, 16:9 Anamorphic, LetterBox, Panoramic, Pixel to Pixel + 3 custom-user adjustments |
ELECTRONICS
| Horizontal & vertical scan freq. |
15-80kHz/24-120Hz |
| SDTV |
PAL (B,G,H,I,M,N,60); SECAM; NTSC autom. selected |
| HDTV |
480p, 720p 50/60, 1080i 50/60, 1080p 24/50/60 + 576p |
| PC graphic standard |
VGA, SVGA, XGA, SXGA, UXGA, WUXGA 10 bit Full Channel Signal Board Video Processing |
INPUTS/OUTPUTS
| Digital |
2 x HDMI-HDCP vers. 1.4a (v.1.4 with Deep Color) |
| Analog |
1x Composite Video |
| |
1 x Graphic RGBVH (VGA-UXGA) (D-sub 15 pin) |
| |
1 x Component - Analog YPbPr/RGBs/RGBHV (RCA) |
| Control |
3D Sync out |
| |
1 x RS232 (D-sub 9 pin) |
| |
1 x USB (B type) |
| Miscellaneous |
3 x 12V 100mA output (via Jack) |
GENERAL SPECIFICATIONS
| Software control |
upgradable via RS232, serial interface or USB |
| Mains voltage range |
100-240 +/-10% (48/62 Hz) |
| Projector Weight |
11 Kg. or 24.3 lbs |

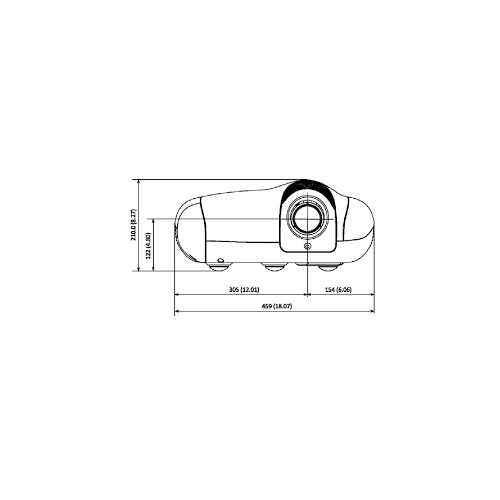

| Projector dimensions (WxHxD) |
458x210x455 mm (18”x8.3”x17.9”) |
ACCESSORIES
| Supplied |
Installation and User Manual |
| |
AC power cords (2m - 6.6 ft) |
| |
Backlit remote control and batteries |
| |
Live Colors Calibration software 2.0 |
| |
Premium SIM2 VISUS Active Glasses (4 pcs.) |
| |
IR Emitter |
| Optional |
Projector ceiling bracket |
| |
Anamorphic lens systems (fixed or motorized) |
| |
Additional VISUS active glasses |
(*) Lamp life: the hours quoted have been measured in a lab under ideal test conditions. Lamp life varies depending on usage conditions and the surrounding environment. This is an average value that cannot be guaranteed and is not protected by warranty.
(2)ANSI Lumen Specification: This is the typical projector brightness specification found in most sales literature. This measurement allows for direct comparison with other manufacturer’s projectors. Measurements are taken in a totally dark test room with T3 type lens (wide angle zoom settings), brand new lamp at full power, lamp’s native white color temperature, internal test pattern (full white) and in compliance with ANSI IT7.228-1997 specification.
The DLP® logo and DLP® medallion are trademarks of Texas Instruments.
Due to constant product development, specifications are subject to change without notice.
