TECH SPECS

Panel

  • Diagonal Size

    75"

  • Type

    240Hz LED BLU

  • Resolution

    1,920 x 1,080 (16:9)

  • Pixel Pitch (mm)

    0.2865(H) x 0.8595(V)

  • Active Display Area

    1,650.24(H) x 928.26(V)

  • Brightness

    550cd/m²

  • Contrast Ratio (Dynamic)

    5,000:1

  • Viewing Angle (Horizontal/Vertical)

    178° / 178°

  • Response Time (G-to-G)

    8ms

  • Display Colour

    10bit Dithering - 1.07Billion

  • Color Gamut

    72%

  • Contrast Ratio

    10,000:1 (AV Mode)

Display

  • H-Scanning Frequency

    30 ~ 81kHz

  • Maximum Pixel Frequency

    148.5MHz

  • V-Scanning Frequency

    56 ~ 85kHz

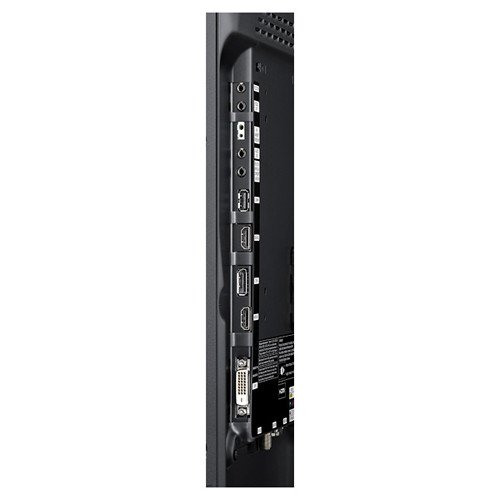

Connectivity

  • Input

    RGB
    Analog D-SUB, DVI-D, Display Port 1.2
    Video
    HDMI1, HDMI2, Component (CVBS Common)
    Audio
    Stereo mini Jack

  • Output

    RGB
    DP1.2 (Loop-out)
    Audio
    Stereo mini Jack

  • External Control

    RS232C (in / out) thru stereo jack, RJ45

  • External Sensor

    IR, Ambient Light

Mechanical Specification

  • Dimension

    Set Dimension (WxHxD)
    1,678.2 x 958.7 x 48.6mm
    Package Dimension (WxHxD)
    1,863 x 1173 x 473mm

  • Weight

    Set Weight
    45.5kg
    Package Weight
    65.6kg

  • VESA Mount

    400 x 400mm

  • Stand Type

    Foot Stand (Optional)

  • Media Player Option Type

    Embbeded, SBB-A( Attadched)

Operation

  • Operating Temperature

    0°C ~ 40°C

  • Humidity

    10 ~ 80%

General Feature

  • Key

    Slim & Light LFD with Built-in MagicInfo Lite

  • Special

    Magic Clone (to USB), Auto Source Switching & Recovery, Lamp Error Detection, Super Clear Coating, Temperature Sensor, RS232C / RJ45 MDC,Plug and Play (DDC2B), PIP / PBP, Video Wall (10 x 10), Pivot Display, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(Supporting 2 x 2 UHD Resolution, HDCP Support), Smart Scheduling, Smart F / W update, Clock Battery(80hrs Clock Keeping)Built In MagicInfo(Lite, Premium-S, Videowall-S)

  • Internal Player

    Processor
    Cortex-A9 1GHz Dual Core CPU
    On-Chip Cache Memory
    L1 (I / D): 32KB / 32KB L2 (Unified): 512KB
    Clock Speed
    1GHz CPU Dual
    Main Memory Interface
    1GB Dual 32bit DDR3-667 (1,333MHz)
    Graphics
    2D & 3D Graphics Engine - Up to 1920 x 1080. 32bpp - Supports OpenGL ES
    Storage (FDM)
    4GB (1.2GB Occupied by O/S, 2.8GB Available, )
    Multimedia
    Video Decoder - MPEG-1/2, H.264 / AVC (Dual) - VC-1, JPEG, PNG Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
    IO Ports
    USB 2.0
    Operating System
    Linux

Power

  • Power Supply

    AC 100 - 240V ~ (+ / - 10%), 50/60Hz

  • Power Consumption

    Off Mode
    Less than 0.5W
    On Mode
    319 (Max) / 290 (Typical) / 1,087.79 (BTU)
    Sleep Mode
    Less than 0.5W

  • Type

    Internal

Embedded PC

  • CPU

    SBB-A (Optional)

  • N/B

    SBB-A (Optional)

  • S/B

    SBB-A (Optional)

  • GPU

    SBB-A (Optional)

  • FDM/HDD

    SBB-A (Optional)

  • Memory

    SBB-A (Optional)

  • Ethernet

    SBB-A (Optional)

  • Connectivity

    USB
    SBB-A (Optional)
    Output
    SBB-A (Optional)
    Others
    SBB-A (Optional)

Certification

  • EMC

    FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024 VCCI (Japan) V-3 (CISPR22) KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22) C-Tick (Australia) : AS/NZS3548 (CISPR22)CCC(China) :GB 9254-2008, GB 17625.1-2003

  • Safety

    CUL (USA + Canada) : UL60950 TUV (Germany) : EN60950 CB (Europe) : IEC60950/EN60950 EK (Korea) : K60950 CCC (China) : GB4943.1 PSB (Singapore ) : IEC60950 GOST (Russia ) : IEC60950, EN55022 SIQ (Slovenia ) : IEC60950, EN55022 PCBC (Poland ) : IEC60950, EN55022 NOM (Mexico ) : NOM-001-SCFI-1993 IRAM (Argentina ) : IRAM SASO (Saudi Arabia ) : IEC60950 BIS(India) : IS13252

Accessory

  • Included

    Quick Setup Guide, Warranty Card, Application CD, D-Sub cable, Power Cord, Remote Controller, Batteries

  • Optional

    Mount
    WMN4675MD
    Stand
    STN-L75D
