Panel
Diagonal Size
75"

Type
ADS
Resolution
3840*2160 (4K UHD)

Pixel Pitch(mm)
429.6 x 429.6
Brightness(Typ.)
3500 nit

Contrast Ratio
1200:1
Viewing Angle(H/V)
178/178

Response Time(G-to-G)
14ms
Color Gamut
NTSC 72%
Operation Hour
24/7

Haze
1%
Display
Dynamic C/R
Mega
H-Scanning Frequency
15~81KHz (HDMI), 30~135KHz (DP)
V-Scanning Frequency
24~75Hz (HDMI), 30~75Hz (DP)
Maximum Pixel Frequency
77MHz

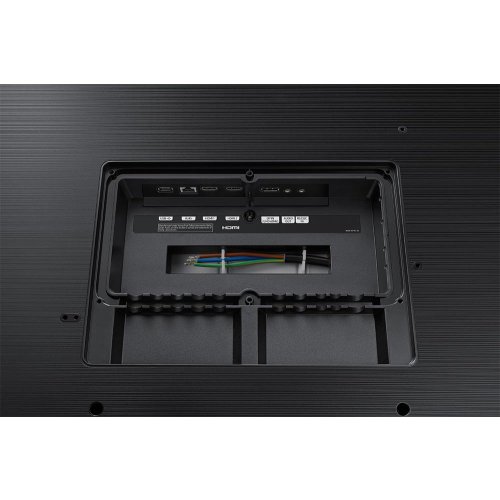

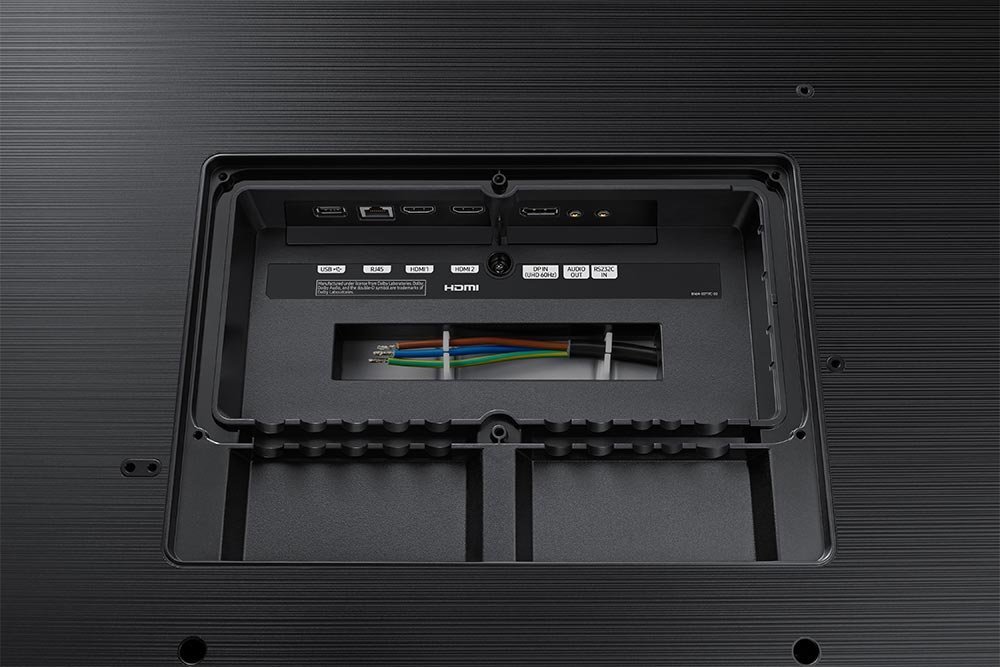

Connectivity
Input
Video
HDMI 2.0 (2)

HDCP
HDCP 2.2
USB
1.0
Output
Audio
Stereo Mini Jack
Power Out
No
External Control
RS232C (In/Out), RJ45(In/Out), HDBaseT

BT/WiFi
No
Power
Power Supply
AC100-240V 50/60Hz
Power Consumption
Max[W/h]
N/A

Typical[W/h]
N/A

Sleep mode
0.5W
Off mode
- W
Mechanical Specification
Dimension (mm)
Set
1774.8 x 1053.4 x 130 mm
Package
1932 x 1251 x 367 mm
Weight (kg)
Set
134 kg
Package
150 kg
Protection Glass
Yes
Bezel Width (mm)
59.8
Operation
Operating Temperature
-30 ℃ ~ 50 ℃

Humidity
10 % ~ 80 % ,non-condensing %
Feature
Key Features
N/A

Orientation
N/A

Remote Control
N/A
Special Features
N/A
Internal Player
Processor
N/A

On-Chip Cache Memory
N/A

Clock Speed
N/A

Main Memory Interface
N/A
Graphics
N/A

Storage (FDM)
8GB

Multimedia
N/A

IO Ports
N/A
Operating System
Tizen 5.0
Certification
Safety
60950-1

EMC
Class A
Accessory
Included
N/A
Optional
Stand
N/A

Mount
N/A

Specialty
N/A
Media Player
Media Player
Media Player
N/A
