Strona głównaMONITORY MULTIMEDIALNESAMSUNGMonitor Samsung Digital Signage Display 460UTN-B
Samsung

Monitor Samsung Digital Signage Display 460UTN-B

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Monitor Samsung Digital Signage Display 460UTN-B

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu

tech specs

Dimension of LH46CBSLBB/XY

Display

  • H-Scanning Frequency

    30kHz ~ 81kHz

  • Maximum Pixel Frequency

    148.5MHz

  • V-Scanning Frequency

    56Hz ~ 85Hz

Panel

  • Diagonal Size

    46"

  • Technology

    S-PVA (DID)

  • Resolution

    1366 x 768

  • Pixel Pitch(mm)

    0.7455 (H) x 0.7455 (V)

  • Active Display Area

    1018.353 (H) x 572.544 (V)

  • Brightness

    450 cd/m2

  • Contrast Ratio (Dynamic)

    10000:1

  • Viewing Angle(Horizontal/Vertical)

    178/178

  • Response Time (G-to-G)

    8ms

  • Display Color

    8 bit - 16.7M

  • Color Gamut

    72%

  • Contrast Ratio

    4500:1


Connectivity

  • Input
    RGB

    Analog D-SUB, DVI-D, Display Port

    Video

    Component, CVBS, HDMI1, HDMI2

    Audio

    RCA (L/R) , Stereo mini Jack

  • Output
    RGB

    DVI-D (Loop-out)

    Audio

    Stereo mini Jack

    Power Out

    5V (for SBB)

  • External Control

    RS232C (in/out), RJ45

  • External Sensor

    Stero mini jack (IR in/out), mini USB (Ext. BR/IR sensor)

Specification

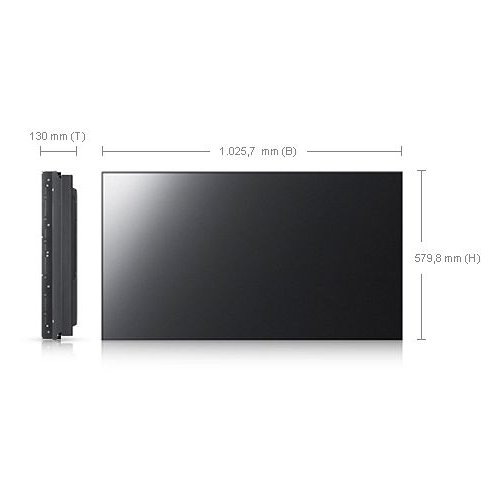

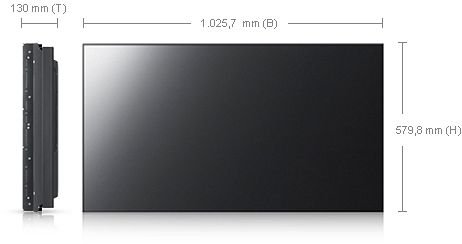

  • Dimension
    Set Dimension (WxHxD) (mm)

    1025.7 x 579.8 x 130mm

    Package Dimension (WxHxD) (mm)

    1148 x 705 x 330mm

  • Weight
    Set Weight (kg)

    20.8kg

    Package Weight (kg)

    26.1kg

  • VESA Mount (mm)

    600 x 400mm

  • Stand Type

    Foot Stand (optional)

  • Media Player Option Type

    Internal

Operation Time

  • Operating Temperature (℃)

    10℃ ~ 40℃

  • Humidity (%)

    10 ~ 80%

General Feature

  • Key

    Super Narrow Bezel (3.3mm)

  • Special

    Lamp Error Detection, Anti Retention, Temperature Sensor, RS232C/RJ45 MDC, Plug and Play (DDC2B), PIP/PBP, Video Wall (10x10), Pivot Display, Button Lock, Digital Daisy Chain, Smart Scheduling, Smart F/W update, MagicInfo S/W, Windows Embedded Standard 2009

Power

  • Power Supply

    AC 100 - 240 V~ (+/- 10 %), 50/60 Hz

  • Power Consumption
    Off Mode

    less than 5W

    On Mode

    270W (max) / 260W (typ)

    Sleep Mode

    less than 5W

  • Technology

    Internal

Accessory

  • Included

    Quick Setup Guide, Warranty Card,Application CD, D-Sub cable, Power Cord,Remote Controller, Batteries

  • Optional
    Mount

    WMN5770D

    Specialty

    CML500D (ceiling mount), STN-520WE (welcome Board) MID462-UT2, MID462K, MID462DS (SamsungID) CY-EBIS (ext.sensor)

    Stand

    STN-L3255D

Embedded PC

  • CPU

    Athlon X2 Dual-Core

  • N/B

    AMD

  • S/B

    AMD

  • GPU

    AMD

  • FDM/HDD

    SSD 32GB

  • Memory▲

    DDR3 1GB

  • Ethernet (LAN)

    Marvell 88E8055 Gigabit LAN

  • Connectivity
    USB

    3

    Output

    RGB OUT, Magicinfo OUT (digital)

    Others

    LAN RJ45

Certification

  • EMC

    FCC (USA) FCC Part 15, Subpart B class A CE (Europe) EN55022, EN55024VCCI (Japan) V-3 (CISPR22)KCC (Korea) :KN22, KN24BSMI (Taiwan) : CNS13438 (CISPR22)C-Tick (Australia) : AS/NZS3548 (CISPR22) CCC(China) :GB 9254-2008, GB 17625.1-2003

  • Safety

    UL (USA) : UL 60950-1CSA (Canada) : CSA C22.2 No. 60950-1 TUV (Germany) : EN60950-1NEMKO (Norway) : EN60950-1 KC (Korea) : K60950-1 CCC (China) : GB 4943-2001PSB (Singapore) : IEC60950-1GOST (Russia) : IEC60950-1, EN55022SIQ (Slovenia) : IEC60950-1, EN55022PCBC (Poland) : IEC60590-1, EN55022NOM (Mexico) : NOM-019-SCFI-1993IRAM (Argentina) :IEC60950-1SASO (Saudi Arabia) : IEC60950-1
