Samsung

Monitor do ścian wideo Samsung SMART Signage UE46D (LH46UEDPLGC/EN)

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt Monitor do ścian wideo Samsung SMART Signage UE46D (LH46UEDPLGC/EN)

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu

Panel

  • Diagonal Size46"
  • Type120Hz E-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.17675(H) X 0.53025(V)
  • Active Display Area(mm)1018.08(H) X 572.67(V)
  • Brightness(Typ.)450 nit
  • Contrast Ratio5000:1
  • Viewing Angle(H/V)178:178
  • Response Time(G-to-G)4ms
  • Display Colors16.7M
  • Color Gamut72%
  • Haze0%

Display

  • Dynamic C/R100,000 : 1(AV Mode)
  • H-Scanning Frequency30 ~ 81kHZ
  • V-Scanning Frequency48 ~ 75HZ
  • Maximum Pixel Frequency148.5MHz

Sound

  • Speaker TypeBuilt in Speaker (10W x 2ch)

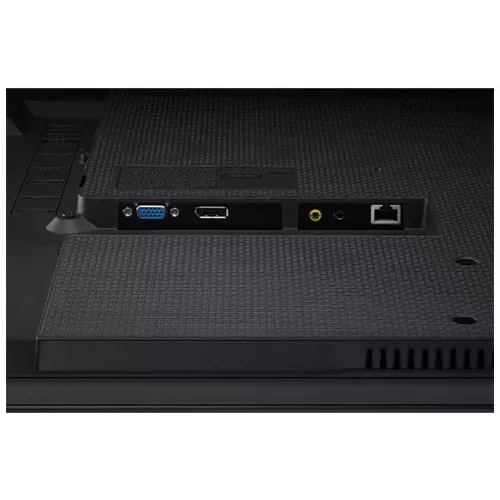

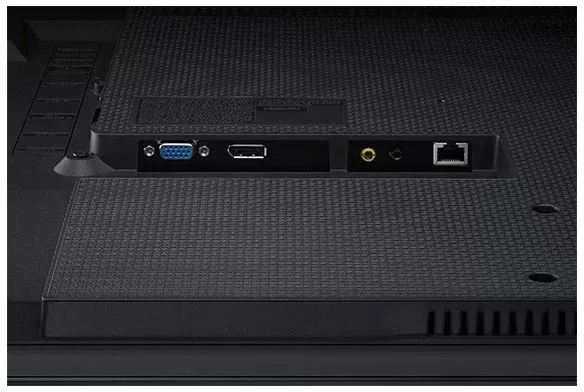

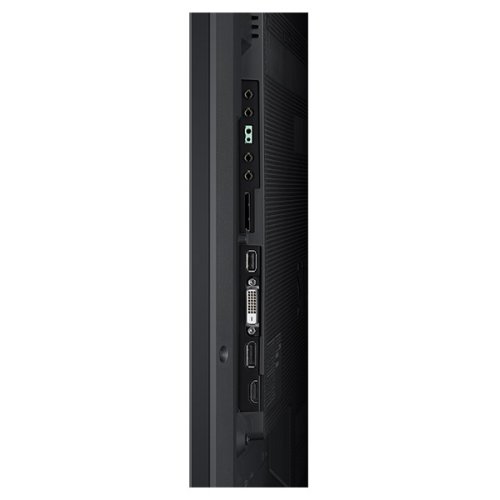

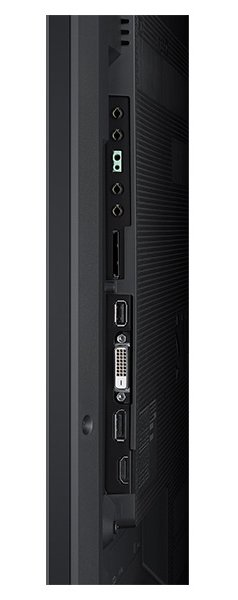

Connectivity

Input
  • RGBAnalog D-SUB, DVI-D, Display Port 1.2
  • VideoHDMI, Component(CVBS Common)
  • AudioStereo mini Jack
  • UsbUSB 2.0 x 1
Output
  • RGBDP1.2(Loop-out)
  • Video-
  • AudioStereo mini Jack
  • Power OutN/A
  • External ControlRS232C(in/out) thru stereo jack, RJ45
  • External SensorN/A
  • TunerN/A

Power

  • TypeInternal
  • Power SupplyAC 100 - 240 V~ (+/- 10 %), 50/60 Hz
Power Consumption
  • Max[W/h]132
  • Typical[W/h]115
  • BTU(Max)450.12
  • Sleep modeless than 0.5W
  • Off modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set1030.9 X 585.4 X 31.3
  • Package1110.0 X 668.0 X 130.0
Weight (kg)
  • Set10.0 kg
  • Package13.0 kg
  • VESA Mount (mm)400*400mm
  • Protection GlassNO
  • Stand TypeFoot Stand (Optional)
  • Media Player Option TypeEmbbeded, SBB-C (Attachable)
  • Bezel Width (mm)5.5mm

Operation

  • Recommended Usage Hours16/7
  • Operating Temperature 0.0  ℃  ~   40.0   ℃
  • Humidity 10  %  ~   80   %

Feature

  • Key FeaturesLED Slim Video wall Built-in MagicInfo Player S2, SSSP 2.0
  • Special Features H/W: WiFi Module Embedded, SD Card Slot, Super Clear Coating, Temperature Sensor, Pivot Display, Clock Battery(80hrs Clock Keeping), Built in Speaker (10W x 2ch)
    S/W:ACM Support(Advanced Color Management), Magic Clone(to USB), Auto Source Switching & Recovery,RS232C/RJ45 MDC,Plug and Play (DDC2B), PIP/PBP, Image Rotation, Button Lock, DP 1.2 Digital Daisy Chain(HDCP Support), Smart Scheduling, Smart F/W update, Built In MagicInfo Player S2, Video Wall (10X10), Firmware Update by Network, LFD New Home Screen, PC-less VideoWall, Predefined Template for Vertical Usage, Multi Channel, Mobile Control, Event Schedule, Backup Player
Internal Player
  • ProcessorCortex-A9 1GHz Quad Core CPU
  • On-Chip Cache MemoryL1 (I/D) : 32KB / 32KB, L2 (Unified) : 1MB
  • Clock Speed1GHz CPU Quad
  • Main Memory Interface1.5GB Dual 48bit DDR3-933 (1866MHz)
  • Graphics2D & 3D Graphics Engine - Up to 1920x1080. 32bpp - Supports OpenGL ES
  • Storage (FDM)8GB (1.2GB Occupied by O/S, 6.8GB Available, )
  • MultimediaVideo Decoder - MPEG-1/2, H.264/AVC (Dual) - VC-1, JPEG, PNG,VP8 Audio DSP (Decoder) - AC3 (DD), MPEG, DTS and etc.
  • IO PortsUSB 2.0
  • Operating SystemSamsung Proprietary OS(VDLinux)
