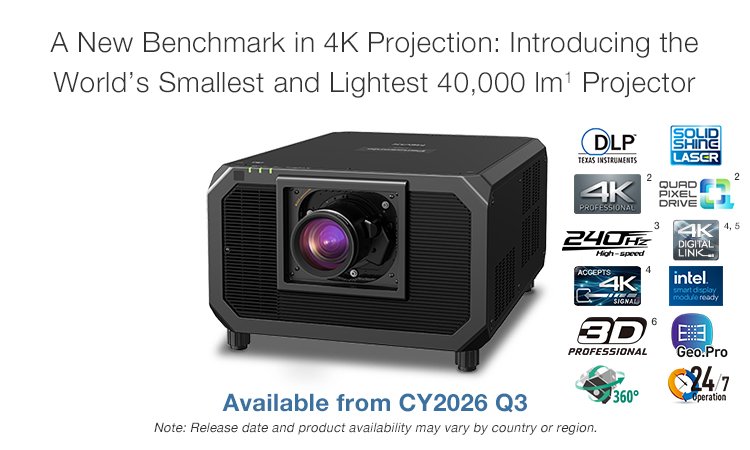

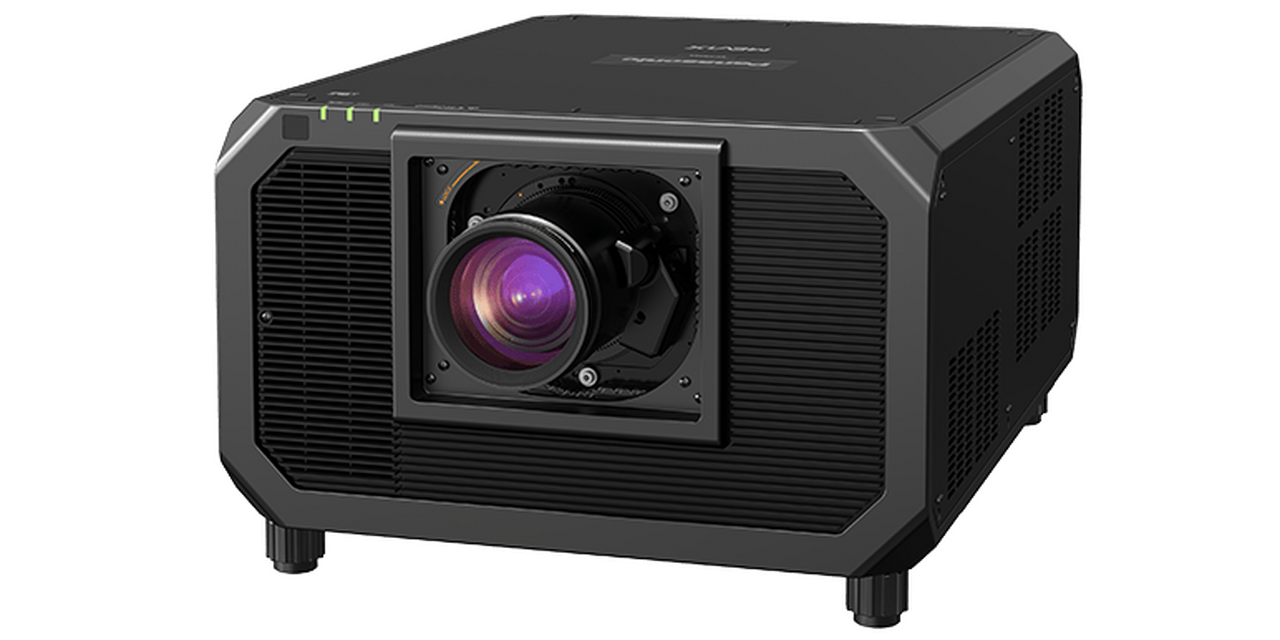

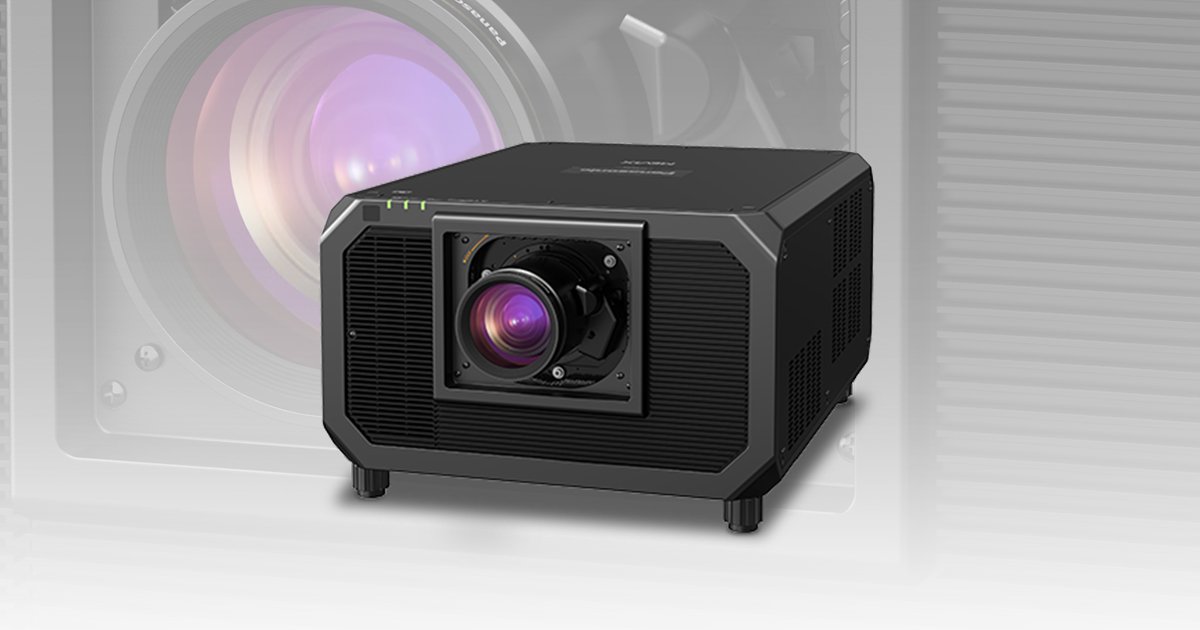

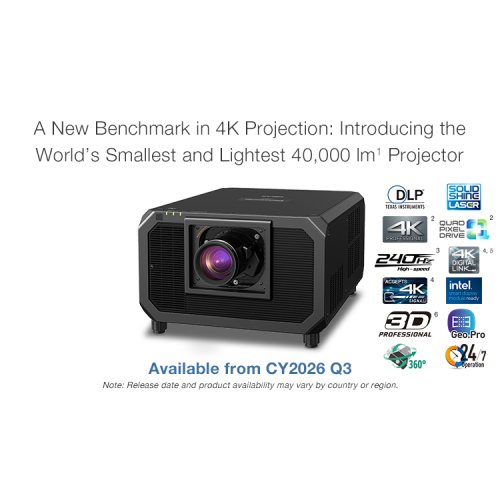

Projector type 3-Chip DLP™ projector
Display method DLP™ chip x 3, DLP™ projection system
Display Device -> Panel size 24.4 mm (0.96 in) diagonal (16:10 aspect ratio)
Display Device -> Number of pixels 2,304,000 (1920 x 1200 pixels) x 3
Light source Laser diodes (Blue LD, Red LD)
Light output *1 *2 *3 40,000 lm*3(TBD)
Light output (ANSI) *4 40,000 lm*4(TBD)
Light output (Center) *5 TBD
Time until light output declines to 50 % -> NORMAL *6 20,000 hours [NORMAL]
Time until light output declines to 50 % -> ECO *6 24,000 hours [ECO]
Time until light output declines to 50 % -> QUIET *6 26,000 hours [QUIET]
Resolution PT-RQ45K: 4K (3840 x 2400 pixels) (Quad Pixel Drive: ON)
PT-RZ44K: WUXGA (1920 x 1200 pixels)
Contrast Ratio (typ.) *3 25,000 : 1(Full On/Full Off, Dynamic Contrast [3]) (TBD)
Screen size (diagonal) 1.78–25.40 m (70–1000 in) (depending on attached lens)
Center-to-corner zone ratio *3 90%
Lens Optional (no lens included with this model)
Lens shift -> Vertical(from center of screen)　 TBD
Lens shift -> Horizontal(from center of screen)　 TBD
Keystone correction range TBD
Installation Ceiling/floor, front/rear, free 360-degree installation
Terminals -> SDI IN BNC x 1 : 3G / SDI input
Terminals -> HDMI™ IN HDMITM x 2 (Deep Color, compatible with HDCP 2.3, 4K/60p signal input*6)
Terminals -> MULTI PROJECTOR SYNC IN BNC x 1
Terminals -> MULTI PROJECTOR SYNC OUT BNC x 1
Terminals -> SERIAL IN D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals -> REMOTE 1 IN M3 stereo mini-jack x 1 for wired remote control
Terminals -> REMOTE 1 OUT M3 stereo mini-jack x 1 for link control (for wired remote control)
Terminals -> LAN RJ-45 x 1 for network connection, PJLinkTM (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible
Terminals -> DC OUT USB Connector Type A x 1 (for power supply, DC 5 V, 2 A)
Terminals -> USB TYPE A USB connector Type A x 1 for optional AJ-WM50 Series Wireless Module/USB memory (dual-use with DC OUT terminal)
Terminals -> SLOT Open slot for function boards, Intel® SDM standard-compatible
Protocol versions IPv4, IPv6*7
Power supply Single Phase AC 100–240 V, 50/60 Hz
Maximum power consumption *9 TBD
On-mode power consumption(Operating mode) -> Normal *9 TBD
On-mode power consumption(Operating mode) -> Eco *9 TBD
On-mode power consumption(Operating mode) -> Quiet *9 TBD
Cabinet materials Molded plastic
Operation noise -> Normal *3 TBD
Dimensions (W x H x D) Approx. 598 x 353 x 780 mm (23 17/32˝ x 13 29/32˝ x 30 23/32˝ ) (not including protruding parts) (TBD)
Weight [kg] *10 70 kg (155 lbs) or less (TBD)
Operating environment -> Operating temperature *11 0–45 °C (32–113 °F)*10
Operating Environment -> Operating humidity (No condensation) 10–80 % (no condensation)
Applicable software Multi Monitoring & Control Software, Projector Network Setup Software, Smart Projector Control for iOS/AndroidTM, NFC Upgrade Kit (TBD)
Control function via LAN Crestron ConnectedTM V2, Crestron XiO CloudTM, Art-Net DMX, AMX® DD, and PJLinkTM (Class 2)
Footnote Description
This is the value when the Zoom Lens (Model No.: ET-D3LES250) is used. The value varies depending on the lens.
When [OPERATING MODE] is set to [NORMAL].
Measurement, measuring conditions, and method of notation all comply with ISO/IEC 21118: 2020 international standards. Value is the average of all products when shipped.
Measurement, measuring conditions, and method of notation all comply with American National Standards Institute standards. Value is the average of all products when shipped.
Around this time, light output will have decreased to approximately 50 % of its original level ([PICTURE MODE] is set to [DYNAMIC], [DYNAMIC CONTRAST] is set to [2]). Estimated time until light output declines to50 % varies depending on environment.
4K signals are converted to WUXGA (1920 x 1200 pixels) only for the PT-RZ44K.
Optional AJ-WM50 Series Wireless Module is not compatible with IPv6.
Measurement, measuring conditions, andmethod of notation all comply with ISO/IEC 21118: 2020 international standards. On-mode power consumption measured at 25 °C (77 °F) operating temperature at an altitude of 700 m (2,297 ft).
Average value. May differ depending on the actual unit.
Do not install the projector at an altitude of 4 200 m (13 780') or higher above sea level. (Altitude of 4 200 m (13 780') above sea level is the maximum height that the performance of this projector is guaranteed.) Using the projector in a location where the altitude is too high or the ambient temperature is too high may reduce the life of the components or result in malfunctions. Upper limit of the operating environment temperature varies depending on the altitude above sea level. When using the projector at an altitude between 0 m (0') and 1 400 m (4 593') above sea level: 0 °C (32 °F) to 45 °C (113 °F) When using the projector at an altitude between 1 400 m (4 593') and 4 200 m (13 780') above sea level: 0 °C (32 °F) to 40 °C (104 °F) Do not use the projector in a location where the ambient temperature exceeds 40 °C (104 °F) regardless of the altitude when the optional Wireless Module (Model No.: AJ‑WM50 Series) is attached to the projector.
Terminals -> MULTI SYNC IN/ 3D SYNC 1 IN/OUT (dual purpose) BNC x1 (MULTI PROJECTOR SYNC IN dual purpose)
Terminals -> MULTI SYNC OUT/ 3D SYNC 2 OUT (dual purpose) BNC x 1 (MULTI PROJECTOR SYNC OUT dual purpose)

Opcjonalne obiektywy

Model nr., Współczynnik projekcji1, Typ obiektywu, Odległość ogniskowa, Numer F

ET-D75LE95, 0.364:1, Stałe, 7,5 mm [9/32"], 2,5
ET-D3LEU1012, 0.370:1, Stałe, 8,0 mm [5/16"], 2,5
ET-D3LEW502, 0.694:1, Stałe, 14,8 mm [19/32"], 2,5
ET-D3LEW2013, 0.645–0.850:1, Zoom, 13,8-18,1 mm [17/32" - 23/32"], 2,5
ET-D3LEW603, 0.924–1.10:1, Zoom, 19.63-23.54 mm [17/32" - 23/32"], 2,5
ET-D3LEW6003, 0.924–1.28:1, Zoom, 19,8-27,5 mm [25/32" - 1-5/64"], 2,5
ET-D3LEW103, 1.26–1.72:1, Zoom, 26,6-36,4 mm [1-1/16" - 1-7/16"], 2,5
ET-D3LES203, 1.67–2.41:1, Zoom, 35,0-50,9 mm [1-3/8" - 2"], 2,5
ET-D3LET303, 2.40–4.66:1, Zoom, 50,4-98,0 mm [1-31/32" - 3-7/8"], 2,5
ET-D3LET403, 4.61–7.41:1, Zoom, 96.6-154.9 mm [3-13/16" - 6-3/32"], 2,5
ET-D3LET803, 7.34–13.8:1, Zoom, 154-289 mm [6-1/16" - 11-3/8"], 2,5
ET-D3LEF702, —, Rybie oko, 9 mm (7/20"), 2,5

Uwaga: Jasność może być ograniczona w zależności od zainstalowanego obiektywu.

1 W przypadku wprowadzania sygnału 4K lub WUXGA.

2 Wyposażony w funkcję automatycznej identyfikacji obiektywu.

3 Obsługuje funkcję automatycznej identyfikacji obiektywu i silnika krokowego.
