- Monitor

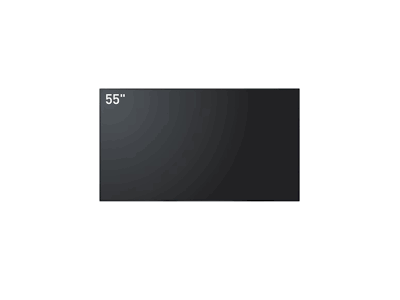

Screen Size (Diagonal): 55-inch (1,387 mm)
Aspect Ratio : 16:9
Panel Type : IPS / Direct-LED
Number of Pixels (H x V) : 1920 x 1080 pixels
Brightness (Typ) : 700 cd/m2
Contrast Ratio : 1200 : 1
Response Time : 12 ms (G to G)
Dynamic Contrast Ratio: 500000 : 1
Viewing Angle (Horizontal/Vertical): 178°/178°
Panel Surface Treatment : Anti-glare treatment (Haze 44%)
- Connection Terminal
VIDEO In : BNC x 1 (Shared with Component Y In)
Audio In (L/R) : Pin Jack x 1 set (Shared with Component In)
HDMI In: HDMI Type A Connector x 1
Component In: BNC x 3 (Y/Pb/Pr)
Audio In (L/R) : Pin Jack x 1 set (Shared with VIDEO In)
DVI-D In : DVI-D 24-pin x 2
Audio In: (L/R) 3.5 mm Stereo Mini Jack x 1 (Shared with PC In)
Display: Port In DisplayPort x 1
PC In: Mini D-Sub 15-pin x 1 (Female)
Audio In (L/R): 3.5 mm Stereo Mini Jack x 1 (Shared with DVI-D In)
USB : USB (Type A) x 1
- Control
Sereial In/Out: D-Sub 9-pin x 1/1, RS-232C Compatible
DIGITAL LINK In: RJ45 x 1
DIGITAL LINK Out: RJ45 x 1
IR In/Out: 3.5 mm Mini Jack x 1/x 1
LAN : RJ45 x 1 (Shared with DIGITAL LINK In)
- Audio
Line Out (L/R) : Pin Jack x 1 set
External Speaker: 8 O, 20 W [10 W + 10 W]
- Electrical
Power Requirements 100-240 V AC, 50/60 Hz
Power Consumption 330 W (340 VA)
Stand-by Conditions 0.5 W
- Mechanical
Dimensios (W x H x D): 1213 x 684 x 95 mm (47.8" x 26.9" x 3.7")
Bezel to Bezel : 3.5 mm (0.14")
Weight: Approx 30 kg (66.1 lbs.)
