DISPLAY PANEL

Screen size (diagonal) (mm) 49.5-inch (1257.3 mm)
Aspect Ratio 16:9
Effective display area (W x H) 1095.8 x 616.4 mm (43.14" x 24.26")
Resolution 3840 x 2160
Brightness (typ.) 500 cd/m2
Contrast Ratio (typ.) 5000:1
Response Time (typ.) 9.5 ms
Viewing angle [(T/B)/(L/R)] 178°/178° (CR>10)
Panel Surface Treatment Anti-glare type (Haze 25%)

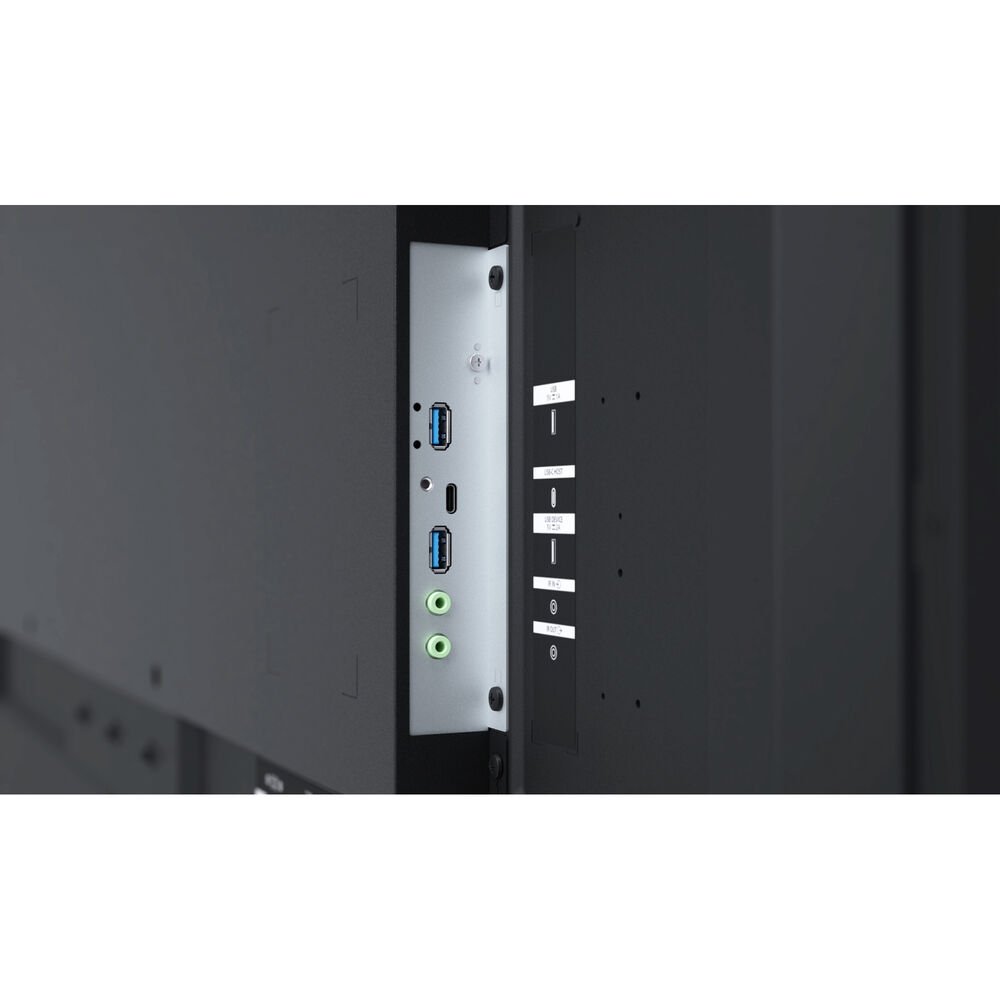

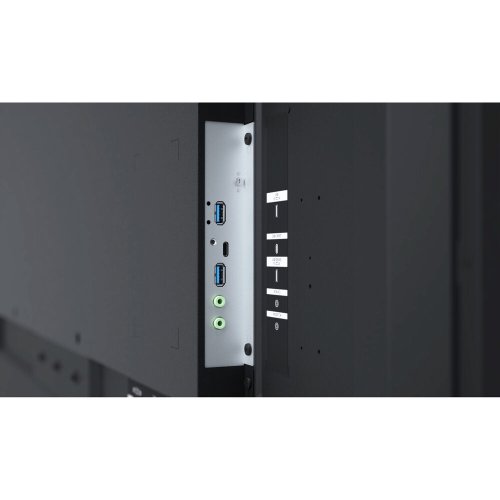

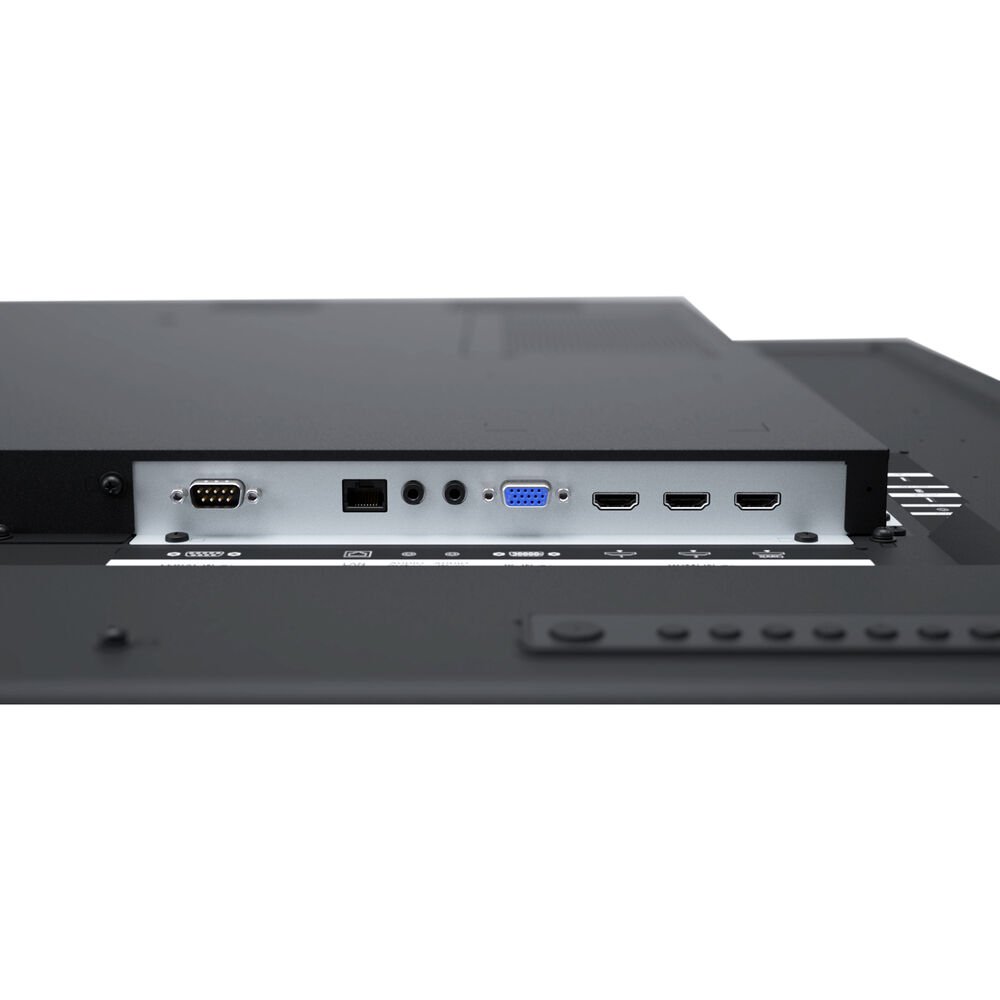

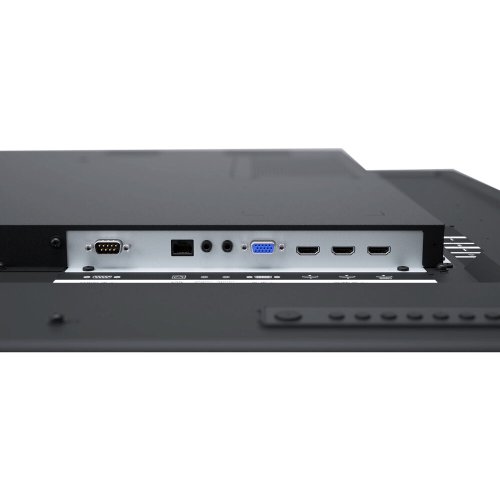

TERMINALS

Terminals | HDMI In TYPE A Connector x 3 (HDCP2.2 supported)
Terminals | PC IN/AUDIO IN (L/R) Mini D-sub 15-pin x 1 (Female)/Stereo Mini Jack (M3) x 1
Terminals | Serial D-sub 9-pin x 1, RS232C Compatible
Terminals | Audio Out Stereo Mini Jack (M3) x 1
Terminals | LAN RJ45 x 1, RJ45 10BASE-T/100BASE-TX
Terminals | USB Type A：DC 5 V/1 A (USB 3.0 is supported),Type A：DC 5 V/2 A (USB 2.0 is supported (TBD)),Type C： (USB2.0 is supported), DP Alt mode compatible (TBD)
Terminals | Slot SDM-S / SDM-L, 3.3 V/max.1.1 A, 12 V/max 5.5 A

Built-in Speaker 20W [10 W + 10 W]
Power Requirements AC 110 - 240 V 50 Hz / 60 Hz
Power Consumption TBD
Power Off Condition Approx. 0.3 W
Standby Condition Approx. 0.5 W
Dimensions (W x H x D) 1129 x 649 x 66 mm(44.43" x 25.56" x 2.60") (TBD) *Not including handles.
Weight 16 kg (34 lbs.) ( TBD)
Bezel width 14.9 mm (0.59") ( T/R/L /B)
Wall-hanging pitch VESA Compliant 400 x 400 mm (15.8" x 15.8"), M6
Orientation Landscape/Portrait
Tilting angle 0 - 20 degrees forward/backward with landscape/portrait setting
Operating Time 18 h/day
Operating Environment Temperature: 0 °C to 40 °C (32 °F to 104 °F)/Humidity: 20-80 % (Non condensation)/for up to 0-1400 m (4593 ft) attitude.Temperature: 0 °C to 35 °C (32 °F to 95 °F)/Altitude 1400-2800 m (4593 ft to 9186 ft)
