Specyfikacja

TECHNICAL SPECIFICATIONS

• 360 Operation: Yes
• Aspect Ratio: 16:10 (native), 16:9, 4:3, LBX, auto compatible
• Audio: 2 x 15W (stereo)
• Brightness: 5,000 ANSI lumens
• Color Wheel: 4 Segment RYGB

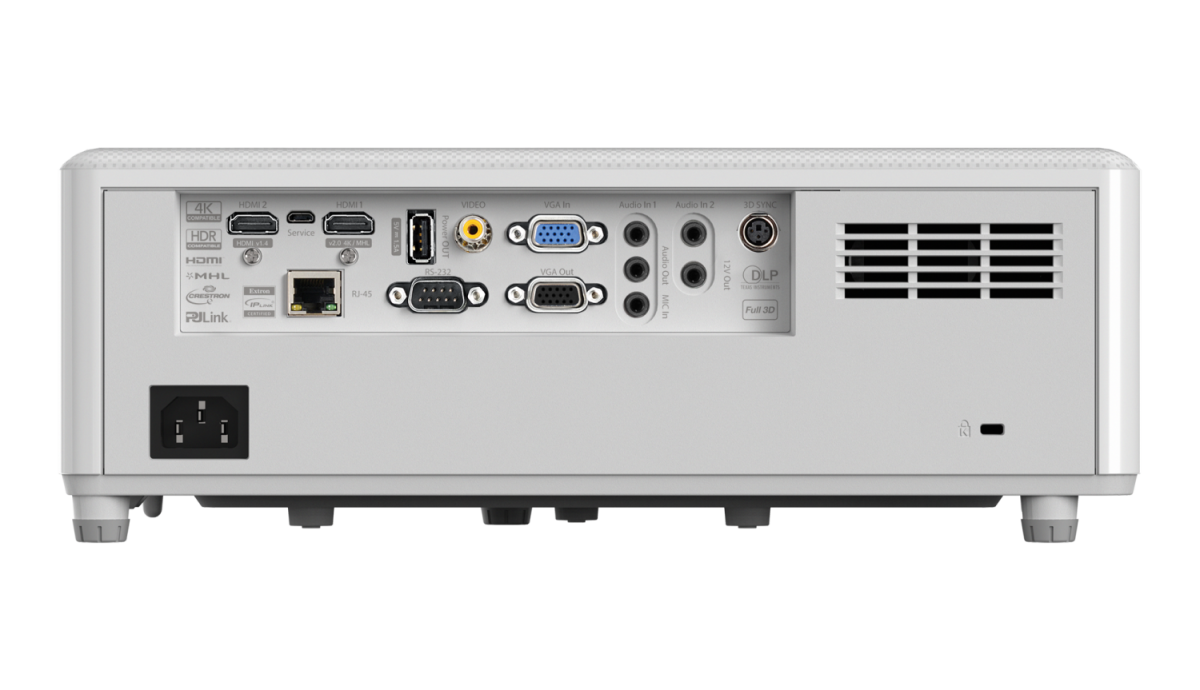

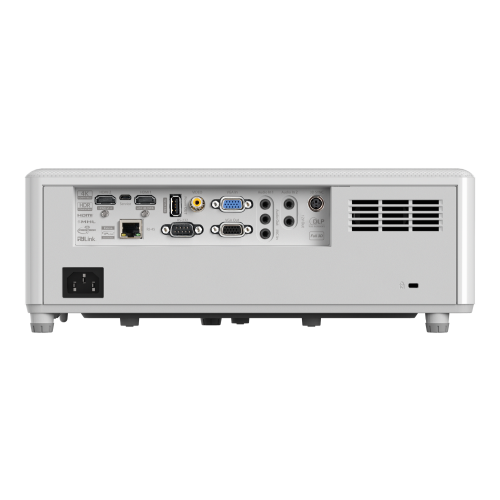

• Connections: 1x HDMI 2.0 (HDCP 2.2, MHL), 1x HDMI 1.4, 1x VGA, 1x composite, 2x audio in (3.5mm), 1x mic in, 1x USB-A, 1x VGA out (VGA 1 only), 1x audio out, 1x 12v trigger, 1x 3D sync, 1x micro USB
• Contrast Ratio: 300,000:1 (Extreme Black enabled) 1,800:1 full on/full off
• Control Unit: 1x RJ-45, 1x RS-232C
• Display Technology: Texas Instruments 0.65″ WXGA DMD
• Displayable Colors: 1.07 billion
• Geometry: Four corner adjustment
• Image Size: 19.7” – 315.8”
• Keystone Correction: ±30° horizontal and vertical
• Light Source Type: DuraCore laser
• Light Source Life: Up to 30,000 hrs
• Lens Shift: 12.4% vertical
• Maximum Resolution: HDMI 2.0: 4K UHD (3840 x 2160 @ 60Hz), 4K (4096 x 2160, 60Hz) HDMI 1.4: WXGA (1920 x 1200)
• Native Resolution: WXGA (1280 x 800)
• Noise Level: 32dB
• Offset: 100%
• Operating Temperature: 41–104°F (5–40°C), 85% max humidity
• Power Consumption: Bright: 277W max
• Power Supply: AC input 100–240V, 50–60Hz, auto-switching
• Projection Distance: 2.3’ – 52.5’ (without zoom)
• Projection Lens: f=20.91~32.62mm, F=2.5~3.26mm
• Projection Method: 360˚, front, rear, ceiling mount, table top, 360˚: auto dims to 60%±5% in 195˚ – 345˚ orientation, Portrait: auto dims to 90%±5%
• Remote Control: Full size remote with laser pointer
• Throw Ratio: 1.47-2.35:1±5%
• Uniformity: 75%
• Zoom Type: 1.6x optical, 0.8 – 2.0x digital

COMPATIBILITY SPECIFICATIONS

• 3D Compatibility: Supports all HDMI 1.4a mandatory 3D formats (Frame pack, side-by-side, top-bottom) and up converts frame rate from 60Hz to 120Hz or 24Hz to 144Hz (i.e 60 or 72 frames per eye).
• Computer Compatibility: VGA, SVGA, HDTV(720P), WXGA, WXGA+, SXGA, SXGA+, UXGA, HDTV(1080p), WXGA, 4K, 4K UHD
• Horizontal Scan Rate: 15.375 – 91.146 KHz
• Vertical Scan Rate: 24 – 85 Hz (120 Hz for 1080p 3D feature)
• Video Compatiblity: PAL, SECAM, 576i/p, NTSC, 480i/p, HDTV 720p/1080i/1080p, 4K UHD 2160p (24/50/60 Hz), 4K

PHYSICAL SPECIFICATIONS

• Dimensions: 13.26” x 4.8” x 10.5”
• Security: Kensington® lock port, password (OSD)
• Weight: 10 lbs

OTHER

• What's in the Box?: ZW502, AC power cable, remote control, batteries, quick start guide
• Optional Accessories: Ceiling mount
• UPC: 796435 44 433 4
• Warranty Info: 5-year or 12,000 hour light source warranty (whichever comes first), 3-year Optoma Express advance exchange warranty on the projector.
