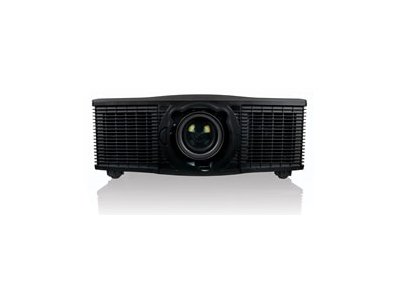

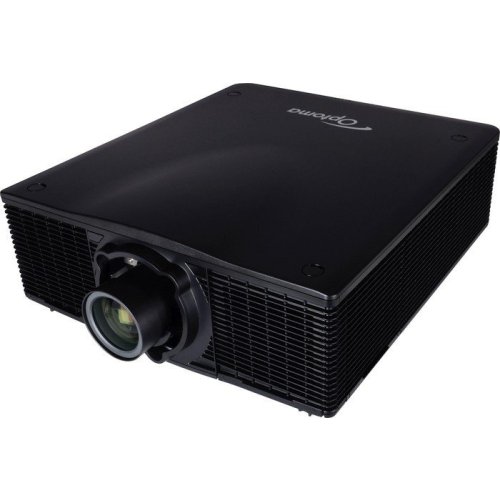

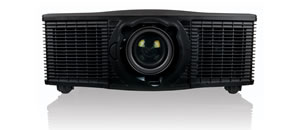

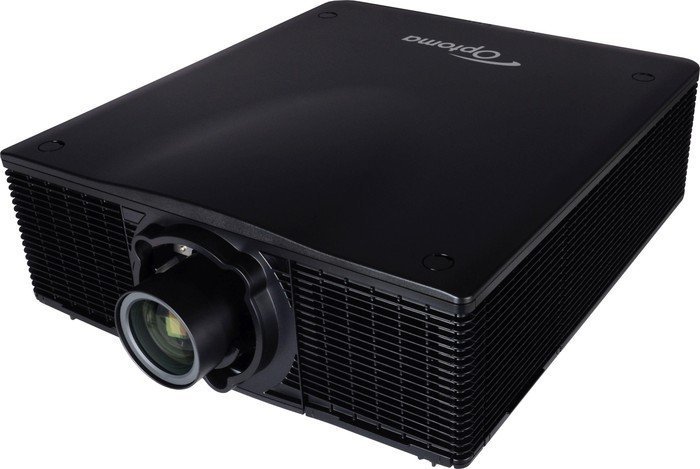

Projektor Optoma WU1500

Name: Projektor Optoma WU1500
Brand: Optoma
Price: 79000 PLN
Availability: InStock

79 000,00 zł ~~109 870,70 zł~~

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

(0 opinii)

Produkt dostępny

downloadPobierz kartę produktu

Lens options


Optoma model name	A18	A19	A20	A21	A22	A23
Lens name	Short zoom	Wide zoom	Semi-Wide zoom	Standard	Long zoom	Extra-Long zoom
Throw ratio	0.84 ~ 1.02	1.02 ~ 1.36	1.2 ~ 1.5	1.5 ~ 2.0	2.0 ~ 4.0	4.0 ~ 7.2
Zoom ratio	1.2x	1.33x	1.25x	1.33x	2.0x	1.8x
F number	2.0	2.0	2.2	2.0	2.2	2.2
Focal length (f) mm	21.5 ~ 28.7mm	21.5 ~ 28.7mm	25.5 ~ 31.8mm	31.8 ~ 42.1mm	42.4 ~ 84.5mm	84.1 ~ 149.8mm
Zoom and Focus adjustment			Motorised zoom, motorised focus
Throw distance (m)	0.9m ~ 11.0m	1.1m ~ 14.7m	1.3m ~ 16.2m	1.6m ~ 21.5m	2.2m ~ 43.1m	4.3m ~ 77.6m
Projected image size		50" - 500" diagonal (108 x 67cm to 1077 x 673cm)
Motorised lens shift	Limited range		Vertical: +/-60% offset, Horizontal: +/- 25% offset
Brightness ratio	85%	90%	95%	100%	90%	90%

Throw distance chart

Diagonal image size	Image width	Image height	Short Zoom		Wide Zoom		Semi-wide Zoom		Standard		Long Zoom		Extra-Long Zoom
(Inch)	(m)	(m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)	Min (m)	Max (m)
50	1.08	0.67	0.90	1.10	1.10	1.46	1.29	1.62	1.62	2.15	2.15	4.31	4.31	7.75
80	1.72	1.08	1.45	1.76	1.76	2.34	2.07	2.58	2.58	3.45	3.45	6.89	6.89	12.41
100	2.15	1.35	1.81	2.20	2.20	2.93	2.58	3.23	3.23	4.31	4.31	8.62	8.62	15.51
120	2.58	1.62	2.17	2.64	2.64	3.52	3.10	3.88	3.88	5.17	5.17	10.34	10.34	18.61
150	3.23	2.02	2.71	3.30	3.30	4.39	3.88	4.85	4.85	6.46	6.46	12.92	12.92	23.26
200	4.31	2.69	3.62	4.39	4.39	5.86	5.17	6.46	6.46	8.62	8.62	17.23	17.23	31.02
250	5.38	3.37	4.52	5.49	5.49	7.32	6.46	8.08	8.08	10.77	10.77	21.54	21.54	38.77
300	6.46	4.04	5.43	6.59	6.59	8.79	7.75	9.69	9.69	12.92	12.92	25.85	25.85	46.52
400	8.62	5.38	7.24	8.79	8.79	11.72	10.34	12.92	12.92	17.23	17.23	34.46	34.46	62.03
500	10.77	6.73	9.05	10.98	10.98	14.65	12.92	16.15	16.15	21.54	21.54	43.08	43.08	77.54

For guidance only

WU1500 Specification

Display Technology	1 x 0.96" DLP® chip, DarkChip3™
Native Resolution	WUXGA 1920 x 1200
Brightness¹ (Bright Mode)	12000 centre lumens (11000 ANSI)
Contrast	5000:1 (1200:1 full on / full off)
ANSI Contrast	250:1
Lamp Life² Eco/Bright	2000/1500 (hrs)
Lens Options	A18 - Short zoom, 0.84 - 1.02 (1.2x zoom), F/2.0 A19 - Extra-wide zoom, 1.02 - 1.36 (1.3x zoom), F/2.0 A20 - Wide zoom, 1.20 - 1.50 (1.25x zoom), F/2.2 A21 - Standard, 1.50 - 2.0 (1.3x zoom), F/2.0 A22 - Long zoom, 2.0 - 4.0 (2.0x zoom), F/2.2 A23 - Extra-long zoom, 4.0 - 7.2 (1.8x zoom), F/2.2
Throw Ratio ³	0.84 to 7.2 (dependent upon lens)
Zoom Type	Motorised
Lens Shift	Vertical: ±60%, Horizontal: ±25%

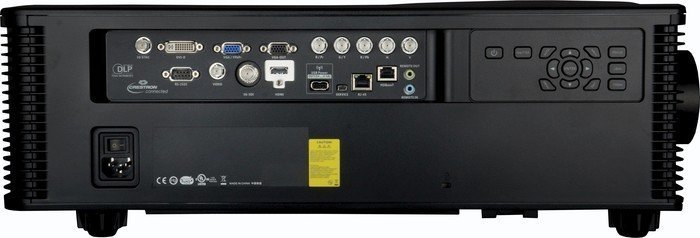

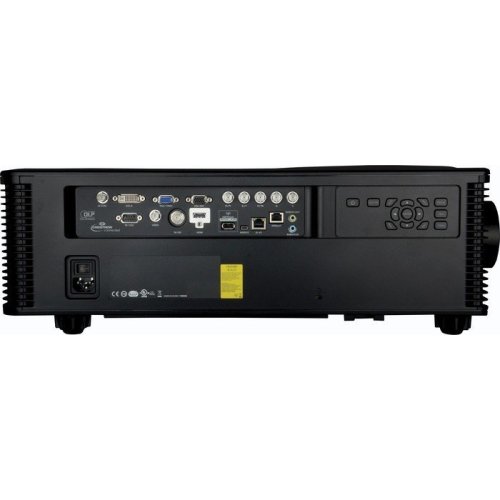

I/O Connectors	HDMI V1.4b, DVI-D, VGA (YPb/Pr), 5 BNC, HDBaseT, 3G-SDI, Composite, USB Wireless, VGA Out, RJ45, RS-232, Wired Remote (in/out), Service Port, 3D Sync
Keystone Correction	Vertical ±20°, Horizontal ±20°
Weight (kg)	23.8
Dimensions (W x D x H) (mm)	520 x 591 x 194mm (without protrusions)
Aspect Ratio	16:10 native, 16:9 and 4:3 compatible
Projection Screen Size	50" - 500" (dependent upon lens)
Projection Distance	0.9m - 77.6m (dependent upon lens)
Projection Lens	Six lens options - no lens supplied as standard
Uniformity	90%
Maximum Resolution	WUXGA (1920 x 1200)
Computer Compatibility	WUXGA, HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
Video Compatibility	PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
Horizontal Scan Rate	15kHz to 100kHz
Vertical Scan Rate	25Hz to 85Hz
Displayable Colours	16.7 million
Noise Level (Eco mode)	39dB (Bright mode) / 36dB (Eco mode)
Noise Level	39dB (bright mode) / 36dB (eco mode)
Power Supply	100 - 240V AC, 50 – 60Hz
Power Consumption	1080W bright mode, 870W eco mode, <0.5W standby
Lamp Type	465W x 2
Operating Conditions	0˚C - 40˚C, 85% max humidity, 3000m max altitude
Operating Temperature	0m to 750m: 0˚C - 40˚C 750m to 1500m: 0˚C - 35˚C 1500m to 3000m: 0˚C - 30˚C
Heat Dissipation	3683 BTU/hr
Security	Kensington Lock port, PIN code
On Screen Display	10 Languages: English, German, French, Italian, Spanish, Russian, Japanese, Korean, Simple Chinese, Traditional Chinese
Remote Control	Infra-red remote control, wired connection supported
Standard Accessories	AC mains power cable, VGA cable, Remote control handset, 'AAA' batteries, User manual CD, Quick start card, WEEE card, Warranty card
Optional Accessories	Short ceiling mount, Long ceiling mount, Projector base plate, Rich Colour wheel 6 segment RGBCYM
Optional Wireless	Yes
360’ Operation	Yes (around horizontal axis)
Portrait Mode	Yes
Colour Wheel	Bright wheel 6 segment RGBCYW (standard) Rich Colour wheel 6 segment RGBCYM (optional)
Warranty	3 Years
Conformances	CE, TUV-GS, CB
RoHS	RoHS and WEEE
Projection method	Front, rear, ceiling mount, table-top, 360° (horizontal axis), portrait
Features	6x optional lens, motorised lens shift, dual lamps, mechanical shutter, 3G-SDI, 360° operation, portrait projection, edge blending
Warranty	3 years

¹Lamp based projectors brightness and lifetime will vary depending on selected projector mode, environmental conditions and usage. As is common with all lamp based projectors, brightness will decrease over the lamp lifetime. LED projectors do not have a replaceable lamp and the brightness does not decay significantly over the product lifetime.

²Typical lamp life achieved through testing. Will vary according to operational use and environmental conditions

³ +/- 5% tolerance
