Specifications
Output resolution (per channel) XGA60Hz, WXGA60Hz, 1080p 30/50/60Hz* and WUXGA 60Hz
AP: Support Win 7 OS
I/O Connectors Power Switch
HDMI Input x 2, DVI-D x 2 (Supporting HDCP)
HDMI Output x 2,VGA Output x 2
Control Interface: LAN control x 2 ports, via LAN hub Static IP.
RS-232 for control x 1 (For debugging only)
Power supply interface :DC 19V power portx1
Operating Noise 26 dB (typical) / 28 dB (Max )
Power Consumption AC 100 ~ 240V，50/60Hz / 32W -110VAC (Power Adapter)
Dimensions (W x D x H) / Weight 42.85 cm x 19.85 cm x 4.35 cm/ 1.9 Kg (4.185 pounds)
Auto blending: 30 days trial license (included on CD).
Full version available separately. Please visit www.optoma.com for more information.
(Compatible cameras: Logitech C920 Pro, Canon 500D, 650D, 40D, 60D)
Accessories: Power cable, External Power Supply, User Manual / QSG / software CD (Manual blend/warp tool), Rack-mount ears.
* Output resolution and timing will vary depending on the configuration of projectors in your project. When using GB-200 to pre-cut the image the maximum resolution is 1080p 30Hz.
For more information, please refer to the user manual.

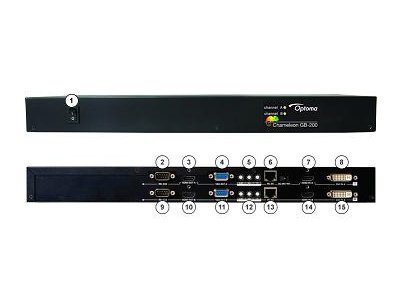

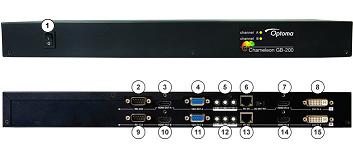

Power switch
RS232 1 (for service only)
HDMI Out 1
VGA Out 1
IP address adjustment 1
RJ45 1
HDMI In 1
DVI In 1
RS232 2 (for service only)
HDMI Out 2
VGA Out 2
IP address adjustment 2
RJ45 2
HDMI In 2
DVI In 2
