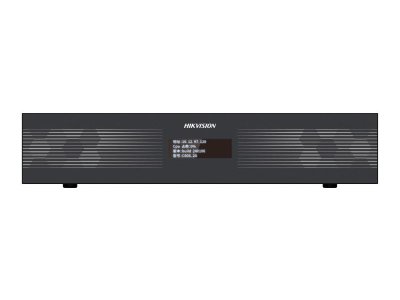

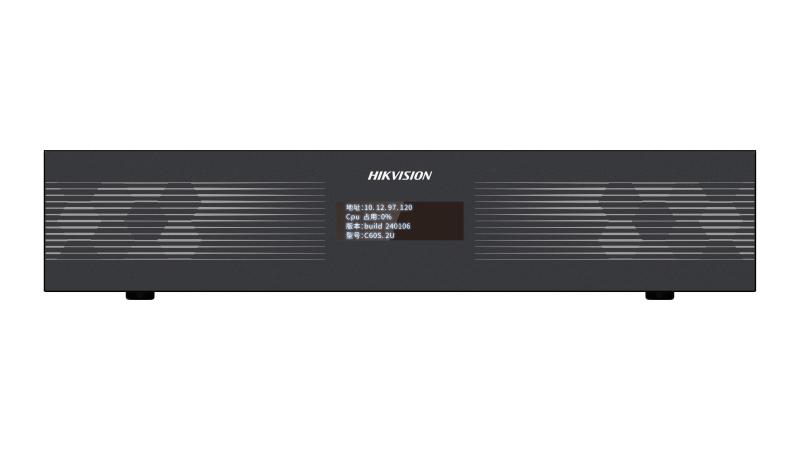

Model DS-C60S-S6
Device
Power Interface 100 VAC to 240 VAC, 50/60 Hz
Dimensions (W × H × D)
Chassis: 442 mm × 88.1 mm × 385 mm (17.40 inch × 3.47 inch × 15.16 inch)
Board: 192 mm × 20.1 mm × 223.5 mm (7.56 inch × 0.79 inch × 8.80 inch)
Chassis Height 2 U
Main Control Board Slot 1
Installed Main Control
Boards
1
Installed Power Supplies 1
Power Consumption ≤ 150 W (full configuration)
Chassis
Bus Type High speed bus
Main Control Board Slot 1
Service Board Slot 6
Net Weight
≤ 7.6 kg (16.76 lb.)
Full configuration, chassis net weight: 5.21 kg (11.49 lb.), net weight for each board: 0.46 kg
(1.01 lb.)
Environment
Working Temperature 0 °C to 50 °C
Working Humidity 10% to 90%
Main Control
Board
(DS-C60S-MCU)
Serial Interface
1 × debug serial port + 1 × RS-485 port (Phoenix contact, baud rate: 115200; valid data bit:
8 bits) + 1 × RS-232 port (Phoenix contact, baud rate: 115200; valid data bit: 8 bits)
Audio Input Interfaces 2 × 3.5 mm input ports
Audio Output Interfaces 4 × 3.5 mm output ports
Control Network Port 1 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
HDMI Input Board
(DS-C60S-04HI)
Occupied Slot Input slot
Audio Input Interfaces 4
Audio Input Interface
Type
HDMI composite audio
Audio Sampling Rate 32K / 48K sampling rate
Audio Channel Dual channels
Video Input Interface
Type
HDMI 1.4
Video Input Interfaces 4
Video Input Resolution
1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz,
1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720p@50 Hz,
1280 × 720p@60 Hz, 1920 × 1080p@50 Hz, 1920 × 1080p@60 Hz, 1920 × 1200@60 Hz
Custom resolution: width ranges from 800 to 2560, height ranges from 600 to 2560. Width
must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz.
When configuring 30 Hz frame rate, the resolution ranges from 1280 ×720 to 2048 ×1152.
When configuring 60 Hz frame rate, the resolution ranges from 800 ×600 to 2048 ×1152.
Max. Video Input
Resolution
1080p
DVI Input Board
(DS-C60S-04DI)
Occupied Slot Input slot
Video Input Interface
Type
DVI-D
Video Input Interfaces 4
Video Input Resolution
1024 ×768@60 Hz, 1280 ×1024@60 Hz, 1366 ×768@60 Hz, 1440 ×900@60 Hz,
1680 ×1050@60 Hz, 1280 ×960@60 Hz, 1600 ×1200@60 Hz, 1280 ×720p@50 Hz,
1280 ×720p@60 Hz, 1920 ×1080p@50 Hz, 1920 ×1080p@60 Hz, 1920 ×1200@60 Hz
Custom resolution: width ranges from 800 to 2560, height ranges from 600 to 2560. Width
must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz.
When configuring 30 Hz frame rate, the resolution ranges from 1280 ×720 to 2048 ×1152.
When configuring 60 Hz frame rate, the resolution ranges from 800 ×600 to 2048 ×1152.
Max. Video Input
Resolution
1080p
4K HDMI Input
Board
(DS-C60S-02HI/4K)
Occupied Slot Input slot
Audio Input Interfaces 2
Audio Input Interface
Type
HDMI composite audio
Audio Sampling Rate 32K / 48K sampling rate
Audio Channel Dual channel
Video Input Interface
Type
HDMI 2.0
Video Input Interfaces 2
Video Input Resolution
4096 ×2160@60 Hz, 4096 ×2160@30 Hz, 3840 ×2160@60 Hz, 3840 ×2160@30 Hz,
1920 ×1200@60 Hz, 1920 ×1080p@60
Custom resolution: width ranges from800 to 8192, height ranges from 600 to 8192. Width
must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz.
When configuring 30 Hz frame rate, the resolution ranges from 1920 ×1080 to 4096 ×
2160. When configuring 60 Hz frame rate, the resolution ranges from 800 ×600 to 4096 ×
2160.
Max. Video Input
Resolution
4K
