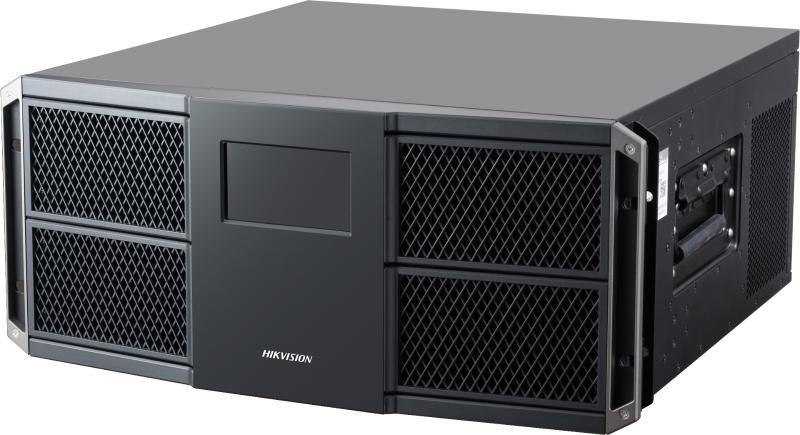

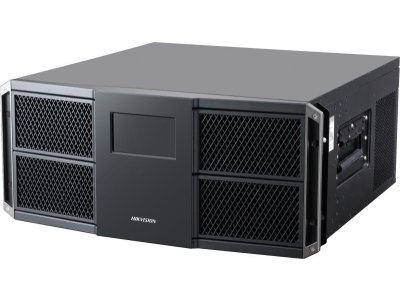

Chassis
Chassis Height 4.5 U
Bus Type 10 GB network switching
Signal Sampling Quality YUV 444
Mixed Installation of Service
Boards
Supported
Main Control Board Slot 2
Service Board Slot 11
Installed Main Control Boards 1
Max. Input Slot 10
Max. Output Slot 10
Power Supply Slot 3
Installed Power Supplies 1
Fans 4
Dual Device Hot Backup Supported

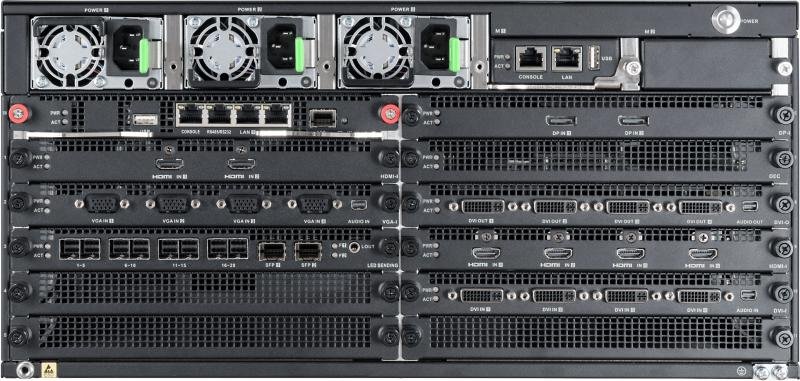

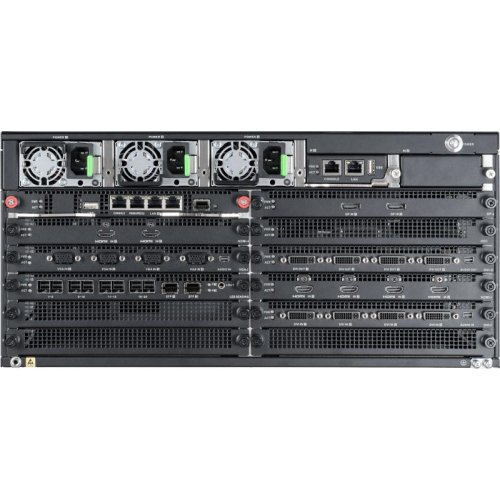

Interface
USB Interface No. 2 × USB 2.0
Serial Interface
2 × Console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45, baud
rate:115200, valid data bit: 8 bit)
Screen Type
4.3 inch non-touch screen, length × width: 105.42 mm × 67.07 mm (4.15 inch × 2.64
inch), resolution: 480 × 272
Power
Power Interface 100 VAC to 240 VAC, 50/60 Hz
Device Power Consumption ≤ 550 W (full configuration)
Environment
Working Temperature 0 °C ~ 50 °C
Working Humidity 10 ~ 90%
Network
Management Network Interface
2 × 10/100/1000 Mbps auto-sensing Ethernet interface (2 network ports on the
switching board and 1 network port reserved on the main control board)
Transmission Protocol SDK, RTSP, ONVIF
Video Wall
Video Walls 8
Video Wall Scale 40
Split Window Supported
Open Windows 16
Window Division per Output
Port
1, 4, 6, 8, 9, 16
Input Source Copy Capability
Each output board can duplicate eight 2K images from the input source but the LED
controller board does not have copy capability.
Layers Per Port 8 × 1080p layers or 4 × 4K layers
Layers per Device 512 (fully installed with the output boards)
Scenes 128
Scene Auto-Switch Delay 400 ms
Plans 128
Live View Resolution
16-channel D1 or 32-channel CIF; 4-channel D1 or 16-channel CIF when previewing the
image of a video wall on a client with all service boards installed in the device
UHD Fusions ≤ 16
Background Image
Total: 8; One background image on each video wall.
Resolution: 16382 × 8192
Format: JGP, JPEG
Subtitles Total: ≤ 12; Single video wall: ≤ 3
Input OSD Supported
Input Image Clipping
Supported
200 pixel points on top, bottom, left, and right.
Local Signal Source Decoding
Delay
50 ms
Network Signal Source Decoding
Delay
200 ms
Display Video Wall Image Supported
General
Net Weight
≤ 33.39 kg (73.65 lb.)
Full configuration, including 21.84 kg (48.16 lb.) chassis and 1.05 kg (2.31 lb.) for each
service board
(2.31 lb.) for each service board
Gross Weight
≤ 51.32 kg (113.13 lb.)
Full configuration, including 29.1 kg (64.15 lb.) chassis and 2.02 kg (4.45 lb.) for each
service board
Dimensions (W × H × D) 442 mm × 207.8 mm × 447 mm (17.4 inch × 8.18 inch × 17.59 inch)
Packing List
1 × grounding cable, 1 × audio adapter cable, 1 × serial port cable, 1 × AC power cord, 1
× power supply, 1 × regulatory compliance and safety information manual
Device Parameters
Device Decoding Capability 128 channels of 1080p 30 fps
Device Splicing Capability 40 channels
