Chassis
Occupied Slot
Input slot
Audio Input
Audio Input Interfaces
4
Audio Input Interface Type
Mini-DP to 4 channels of 3.5 mm
Audio Sampling Rate
48K sampling rate
Audio Channel
Dual channel
Video Input

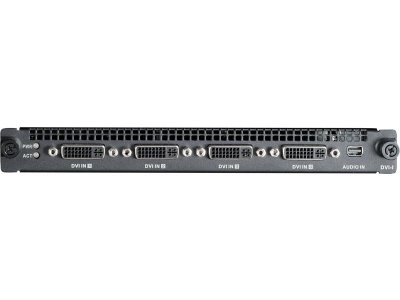

Video Input Interface Type
DVI-D
Video Input Interfaces
4
Max. Video Input Resolution
1080p
Video Input Resolution
1024 × 768@60 Hz, 1280 × 1024@60 Hz, 1366 × 768@60 Hz, 1440 × 900@60 Hz,

1680 × 1050@60 Hz, 1280 × 960@60 Hz, 1600 × 1200@60 Hz, 1280 × 720p@50 Hz, 1280 × 720p@60 Hz, 1920 × 1080p@50 Hz, 1920 × 1080p@60 Hz, 1920 × 1200@60 Hz

Custom resolution: width ranges from 800 to 2048, height ranges from 600 to 2560. Width must be a multiple of 4 and height must be a multiple of 2. Frame rate is 30 Hz or 60 Hz. When configuring 30 Hz frame rate, the resolution ranges from 1280 × 720 to 2048 × 1152. When configuring 60 Hz frame rate, the resolution ranges from 800 × 600 to 2048 × 1152.
