Dane techniczne:

Panel

Screen Size

55"

Panel Technology

OLED

Aspect Ratio

16 : 9

Native Resolution

1,920 x 1,080 (FHD)

Brightness (APL25%, Typ., cd/m²)

400

Brightness (APL100%, Typ., cd/m²)

150

Contrast Ratio

150,000 : 1

Viewing Angle (H x V)

178 x 178

Life Time (Typ.)

30,000 Hrs

Operation Hours

18 Hrs / 7 Days (Moving Video Only)

Orientation

Landscape & Portrait

Connectivity

Input

HDMI, DP, USB 2.0 (2)

Output

DP, Audio (Fixed/Off/Variable)

External Control

RS232C In/out, RJ45 In/out, IR In

Physical Specification

Bezel Width (T/B/L/R)

0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)

5.0 / 10.6 / 7.6 / 7.6 mm (Flat, On Bezel)

Monitor Dimension (W x H x D)

1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut)

1,224.9 x 696.2 x 12.4 mm (Head Only)

Signage Box: 413 x 353 x 57.3 mm

Weight

6.6 kg (Head)

Signage Box: 3.5 kg

Carton Dimensions (W x H x D)

1,350 x 837 x 250 mm

Packed Weight

17 kg (Head)

Environment Conditions

Operation Temperature

0°C to 40°C

Operation Humidity

10 % to 80 %

Power

Power Supply

100-240V~, 50/60Hz

Power Type

Built-In Power

Power Consumption (Typ. / Max.)

309 W / 318 W (Based on 8 color bar)

Certification

Safety

CB / NRTL

EMC

FCC Class “A” / CE / KC

ErP / Energy Star

Yes (EU Only) / No

Media Player Compatibility

OPS Type Compatible

No

Software Compatibility

Content Management Software

SuperSign CMS

Control and Monitoring Software

SuperSign Control+ / Control

Signage365Care

Yes

Accessories

Basic

Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, RS232 Cable(4P-4P), LC Cable(VLC), Tapes, Screws, Shield Cover Ass'y, Tiling Set Fixers, Flex Bars

Optional

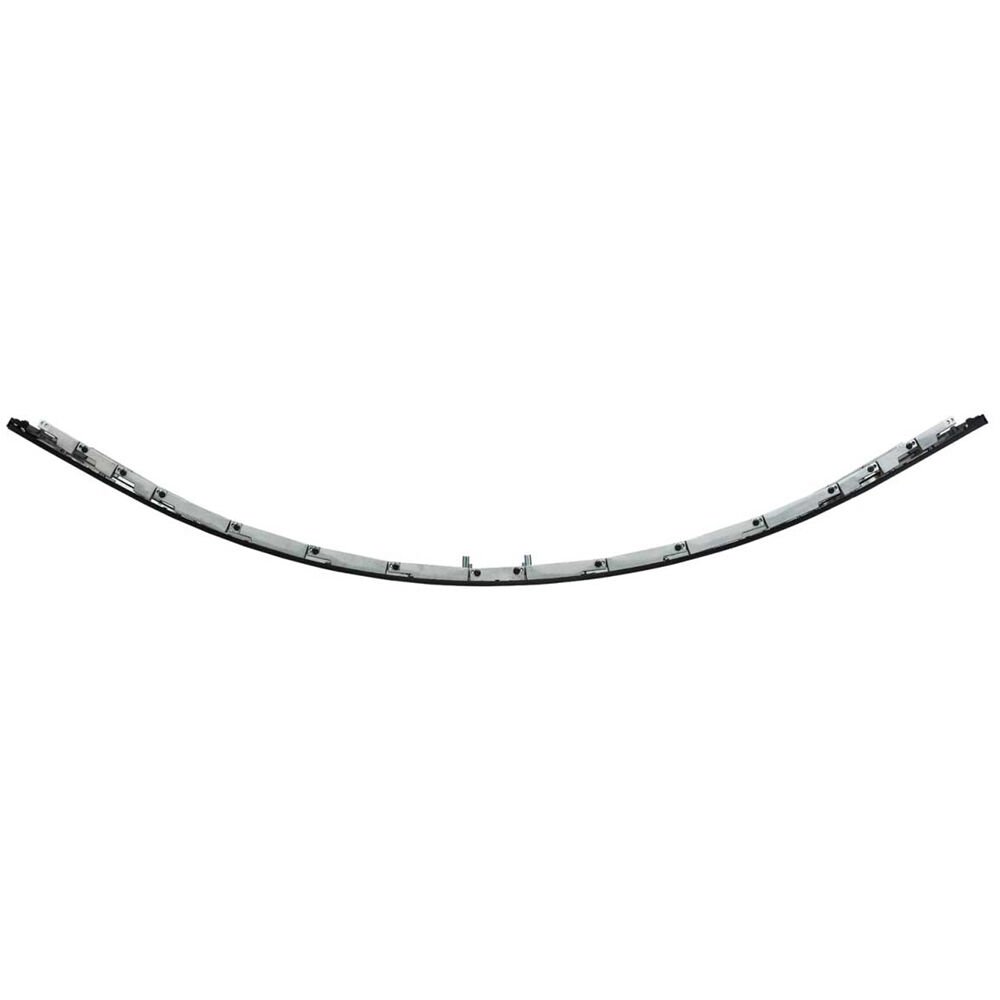

Curvature Calibrator (ACC-CC-EF5E)
