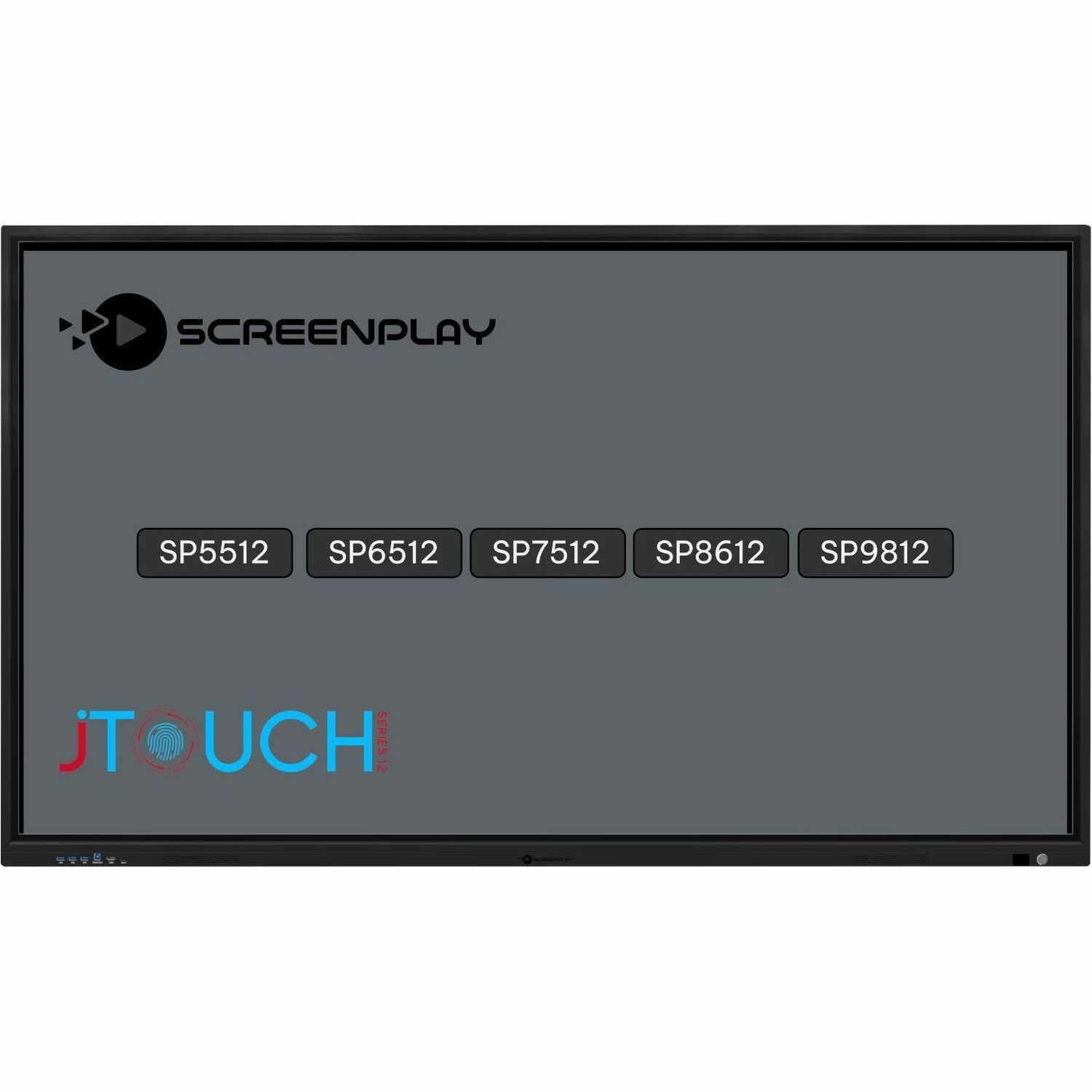

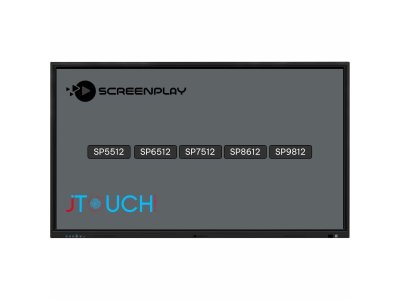

SP8612

Display
Product Series
ScreenPlay JTouch Series 12
Screen Size (Diagonal)
86
Backlight
D-LED
Native Resolution
4K 3840 x 2160
Aspect Ratio
16:9
Contrast Ratio
1200:1
Dynamic Contrast Ratio
4000:1
Brightness (Maximum cd/m2)
500
Response Time (ms)
84mm
Display Colours (billion)
1.07
Refrate (Hz)
60
Viewing Angle (H-V°)
178 / 178
Glass Treatment (mohs)
Antiglare, 7
Sensors
Light & Temperature
Audio (w)
2 x 15
Lifetime Maximum (hrs)
50000
Frame Material
Aluminium Alloy
Supported Orientation
Landscape
Connectivity
Inputs
1x Mini D-sub 15-pin (VGA), 1x HDMI™ 2.0, 2x HDMI™ 2.0 ARC/CEC, 1x USB-A 2.0, 3x USB-A 3.0, 2x USB-B, 1x 3.5 mm Stereo Mini Jack, 1x USB Type C 2.1, 1x NFC
Outputs
1x 3.5 mm Stereo Mini Jack, 1x SPDIF, 1x USB Type C 2.1
Networking & Control
2x Built-In Wi-Fi (5G) /Hotspot (5G), 2x RJ45 - LAN 10/100/ 1000, 1x RS232
Expansion
1x Open Pluggable Specification (OPS) Slot, 1x TF Card Slot up to 128GB
Power
Power Supply (V / Hz)
AC 100 - 240, 50/60
Power Consumption Minimum [W]
155
Power Consumption Minimum with OPS [W]
198
Power Supply - Maximum ( W )
500
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Touch System
Touch Technology
IR
Touch Points Maximum
32 Android, 50 Windows
Typical Response Time (ms)
<6
Accuracy (mm)
1
Minimum Object Size Single Touch (mm)
>3
Minimum Object Size Multi Touch (mm)
>8
Supported Operating Systems
Windows, Linux, Mac OS, Chrome
Embedded System
Operating System & Version
Android 12
System on Chip (SoC)
V100
Central Processing Unit (CPU)
ARM Cortex™ Octa Core A55 1.4Ghz, A55 x8
Graphics Processing Unit (GPU)
ARM Mail Quad Core G52 600 MHz, G52 x4
Random Access Memory (RAM) GB DDR4
8
Read Only Memory (ROM) GB EMMC
128
Included Applications
Browser, WPS, Calendar, Calculator, Easy Upload, Gallery, Timer, Airgo Cast, VoteKit, Camera, File Manager, Screen Record, Whiteboard, Welcome,
Bluetooth
5.0
Optional Upgrades
SPOPS1
SCREENPLAY, OPS SLOT-IN PC, INTEL® CORE™ i5-6300U, 8GB, 256GB, SPOPS1
SPOPS2
SCREENPLAY, OPS SLOT-IN PC, INTEL® CORE™ i7-11700, 16GB 512GB SSD, SPOPS2
SPOPS3
SCREENPLAY, OPS SLOT-IN PC, EDLA 8GB, 128GB, SPOPS3
General
Product Dimensions (L x W x H) (mm / in)
1953 x 88 x 1165 / 76.9 x 3.5 x 45.9
Product Weight (kg / lb)
70 / 154
Shipping Dimensions (L x W x H) (mm / in)
2080 x 180 x 1295 / 81.9 x 7.1 x 51.0
Shipping Weight (kg / lb)
83 / 183
Mounting VESA MIS-F
400 x 800
Operating Temperature (°C / F)
0 ~ 40 / 32 ~ 104
Operating Humidity [%]
10 ~ 90
Operating Altitude (m / ft)
16404
Storage Temperature (°C / F)
-20 ~ 40 / -4 ~104
Storage Humidity [%]
10 ~ 90
Security
NFC Profiles, PIN, Kensington Lock
Safety and Regulatory
CB, CE EMC, IC, FCC, UL, NOM,
Environmental
RoHS, WEEE, EU Energy
In the Box
Interactive Display, Simplified Users Guide, VGA Cable, Regional Power Cord, Remote Control (no Battery), USB Cable, HDMI Cable, Wall Mount
