Specifications

Display

PC

System

Diagonal Size

75"

Resolution — Native

4K UHD (3840 x 2160)

Display Technology

Direct-LED backlight

Touch Screen Features

Multi-touch, 10-point gestures, Anti-glare, Anti-Fingerprint

Glass Strength

4mm thick, heat treated

Scratch Resistance

7 Mohs

Contrast Ratio

1,200:1

Display Brightness

450 cd/m2

Refresh Rate

60 Hz

Response Time

8.0 ms

Pixel Pitch

0.429 mm

Viewing Angle

178°

Speakers

Stereo 10W x 2

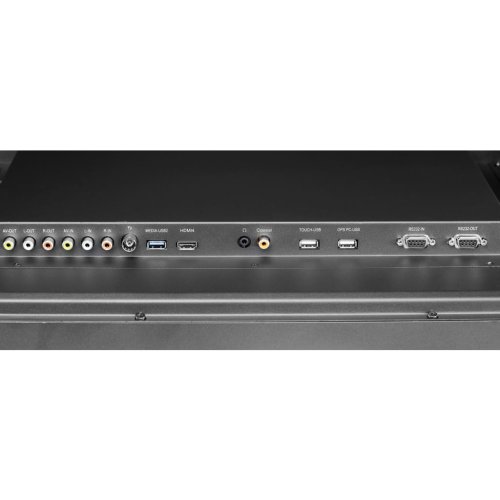

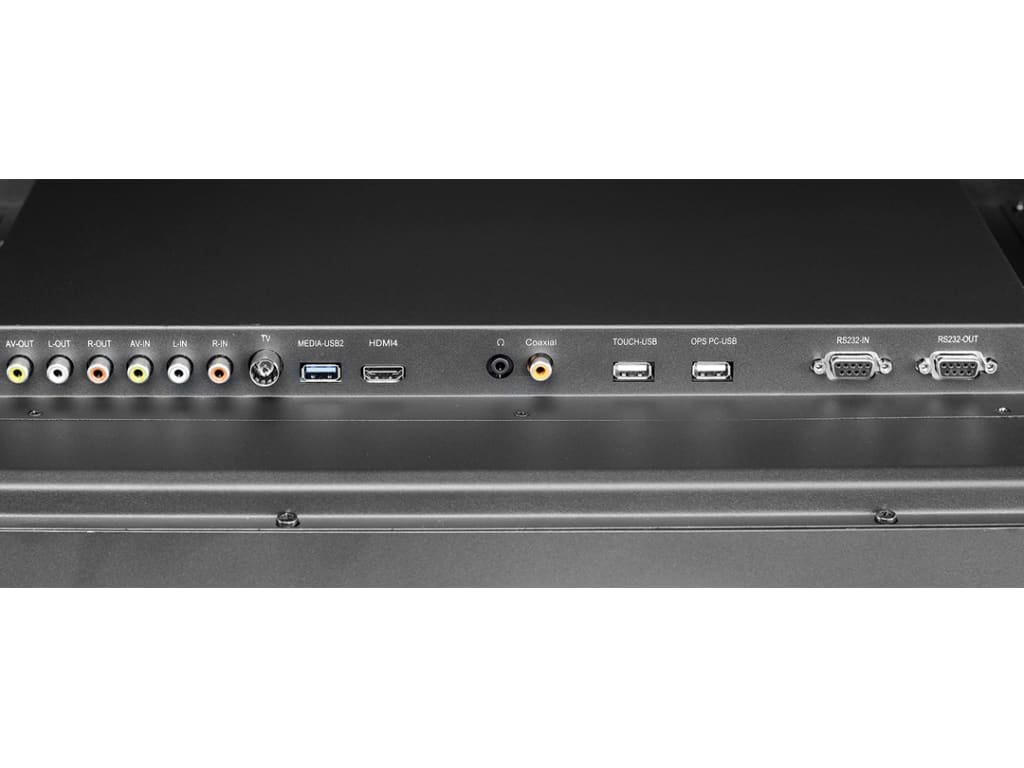

Display Connectors — Inputs

RS232, Component video, Composite video, HDMI x 5, RJ-45 (Ethernet), VGA, USB 3.0 x2, Media USB (Android), PC Audio In (stereo, VGA Audio source), 1/8" Microphone (Mono linked to OPS), USB 2.0 x2, OPS PC USB x2, RCA L/R audio

Display Connectors — Outputs

RS232, 3.5mm PC audio, HDMI, SPDIF, 3.5mm Headphone, RCA L/R audio, USB-B x5 for Touchscreen Control

Power Standard

AC 100 to 240V, 50/60

Panel Brightness Lifetime

50,000 hours (minimum)

Storage

256 GB SSD

Memory

16 GB RAM

Operating System

Windows 10 Pro (64-bit) / Android 5.0

Processor

i7-7500U Intel HD Graphics 620

Connectors — Inputs

3.5mm stereo audio, RJ45 (Ethernet) ×2, USB 3.0 Type-A x2

Connectors — Outputs

HDMI

Network Hardware

Dual band 802.11 a/b/g/n MIMO PCIe half mini card, 2.4 GHz with Intel, AMT support, 802.3 10/100/1000 Base-T with Wake on LAN ×2

Included Accessories

Power cord, Remote, Stylus, HDMI Cable, USB cable, Quick Start Guide, USB WiFi Adapter, Wireless Keyboard with Integrated Touchpad (where allowed)

Audible Noise

< 40 dBA at 77°F / 25°C

Operating Conditions

41 to 95°F at 0 to 10000 ft /

5 to 35°C at 0 to 3048 m

Power Consumption

400.0W max

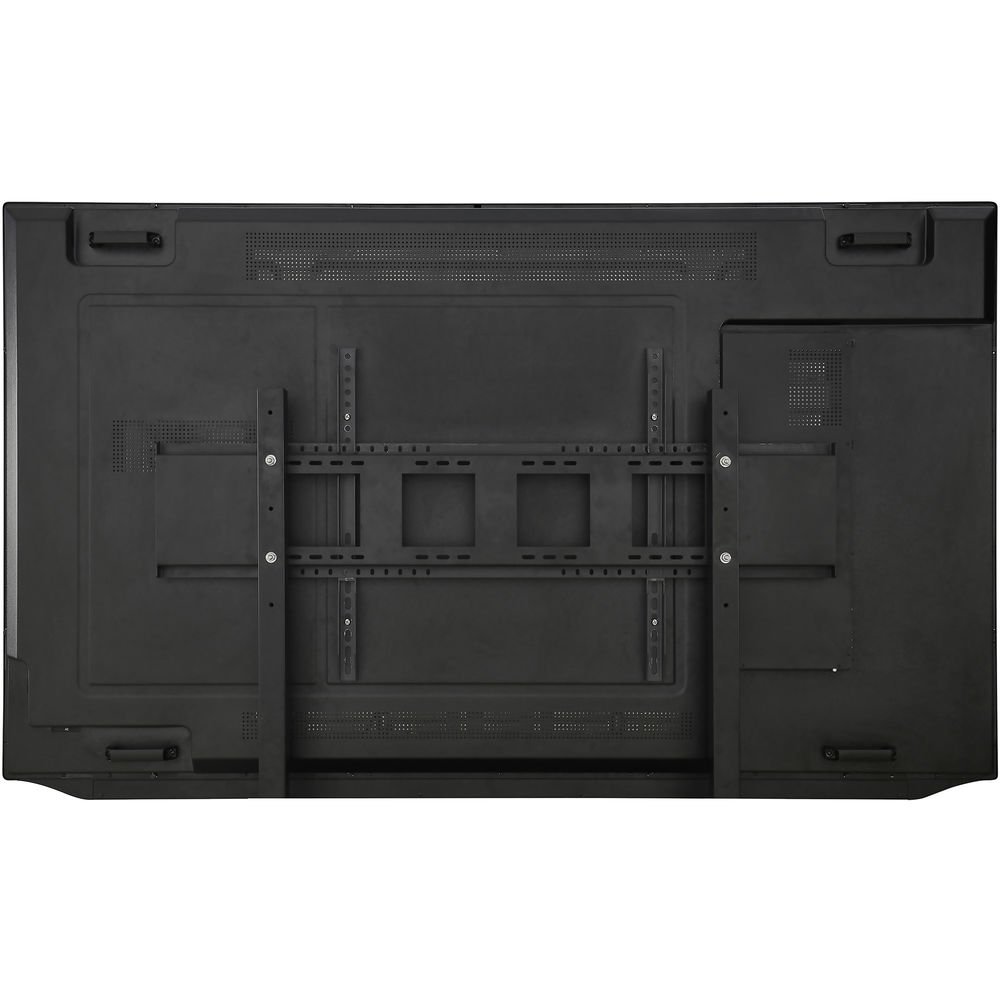

Mounting Pattern

VESA 400×600mm with M8 screws

Product Warranty

1 year

Product Dimensions

41.6 x 68.4 x 4.4 in /

1056.6 x 1737.4 x 111.8 mm

Product Weight

139 lbs / 63 kg

Shipping Dimensions

45.7 x 74 x 11 in /

1160.8 x 1879.6 x 279.4 mm

Shipping Weight

182 lbs / 82.6 kg
