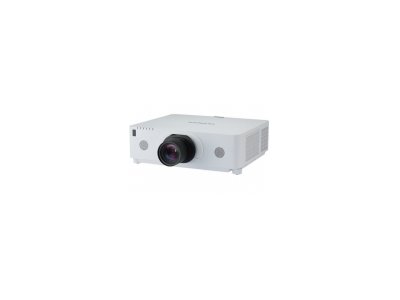

Projektor Hitachi CP-WU8700 (bez obiektywu)
-
Optical
-
LCD Panel
0.76" aspect ratio 16:10
-
Resolution
WUXGA (1920 x 1200)
-
Brightness
7000 ANSI Lumens (Normal Mode) / 5200 ANSI Lumens (Eco Mode)
-
Contrast Ratio
10,000:1
-
Lens
Powered focus, Powered zoom
-
Lamp Wattage
430W
-
Lamp Life
2000 hours (Normal Mode)/4000 hours (Eco Mode)*
-
Distance to width ratio (:1)
1.7 (WIDE) / 3.0 (TELE)
-
Diagonal display size
30"~600" (76cm~1,524cm)
-
Lens shift
Vertical 10:-1 ~ 1:1, Horizontal 6:4 ~ 4:6 at Vertical 1:1
-
Number of colours
16.7M colours
-
Keystone
Vertical 10:0 shift, Normal at + 12.8° ~ 7.6° projection angle
-
Compatibility
-
Computer compatibility
VGA, SVGA, XGA, WXGA, SXGA, SXGA+,
UXGA compressed, MAC 16" -
Composite/S-Video
NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43
-
HDMI
525i(480i), 525p(480p), 625i(576i), 1125i(1080i@50/60), 750p(720p@50/60), 1125p(1080p@50/60)
-
Features
-
Basic functions
Freeze, Magnifying, Blank, Auto adjustment, Auto Signal Search
-
Picture Adjustments
Aspect selection, Equalising digital gamma correction, 2-3 Pull Down for NTSC, Progressive scan, Noise reduction, Mirror Reverse Image, Up-side Down Image, Equalising colour temperature adjustment, Frame lock, Perfect Fit
-
Digital keystone
Horizontal ±5°, Vertical ±5°
-
Advanced Features
Audio pass through, Audio ports assign, Auto Eco Mode, Blending, Filter timer, Lens memory, My Button, My Memory, My Text, MyScreen, Overscan, PC-less presentation, Picture modes (normal, cinema, dynamic, blackboard, greenboard, whiteboard, daytime, DICOM simulation), Resolution setting, Source naming (English), Template, Instant stack, 360° vertical tilt, A ctive iris, Eco mode (Normal, Eco), Mechanical shade, Picture by Picture/ Picture in Picture, Remote ID, Status monitor, Accentualizer technology, iOS Connectivity, HDCR, Warping
-
Outward
Easy lamp replace from side, Easy filter replace from side
-
Power on & off
Direct power on, Auto power off
-
Security Systems
Password/My Screen Password, PIN lock, Key lock
-
Network
AMX Device Discovery Command Control via the Network Configuring and Controlling the Projector via a Web Browser Controlling the Projector via Scheduling (backup available) Crestron RoomView® (not accessible through the wireless adapter) Displaying text data transferred via network failure and warning alerts via E-mail My Image (still image transfer), display, network bridge, network presentation (PC still picture transfer), PJLink TM, projector management via SNMP
-
OSD Languages
English, French, German, Spanish, Italian, Norwegian, Dutch, Portuguese, Japanese, Traditional Chinese, Simplified Chinese, Korean, Swedish, Russian, Finnish, Polish, Turkish, Persian, Arabian, Thai, Danish, Czech, Hungarian, Romanian, Slovenian, Croatian, Lithuanian, Estonian, Latvian, Greek, Brasileiro, Indonesian, Vietnamese
-
Connections
-
Digital input
2 x HDMI (HDCP compliant), HDBaseT (RJ-45) x1, DisplayPort x1, SDI x1
-
Computer Input
Mini-D-Sub 15-pin connector x 1
-
Monitor output
Mini-D-Sub 15-pin connector x 1
-
Video Input
RCA connector x 1
-
Audio Input
2 (3.5mm stereo mini connector x 1, RCA connector L/R x1)
-
Audio output
3.5mm stereo mini connector x 1
-
Control
(RS232C) D-sub 9-pin connector x 1
-
HDBase T
RJ-45 connector x 1
-
USB
USB type A x 1 (Used for wireless network)
-
Wired Remote Control
Yes
-
Wired network
RJ-45 x1
-
Wireless network
IEEE802.11b/g/n (Optional USB wireless adaptor is required)
-
Power
-
Power Supply
AC 100V-120V / AC 220V-240V (50/60 Hz)
-
Power Consumption/Standby
560W/<0.35W (AC220-240V)
-
Physical
-
Dimensions (W X H X D)
498 x 156 x 426 mm (excluding extrusions)
-
Weight
11Kg
-
Noise Level
40dB (Normal) / 33dB (Eco)
-
Air Filter
Hybrid (up to 20,000 hours)
-
Accessories
-
Accessories Supplied
Remote control with batteries (HL02801), power cord, security label, user manual (CD & book), application CD, adaptor cover
-
Optional Accessories
Replacement lamp DT01881, USB wireless adaptor USB-WL-11N, Remote Control, filter set UX40821
