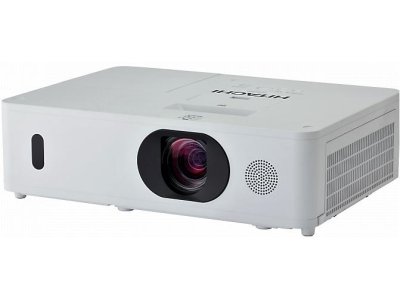

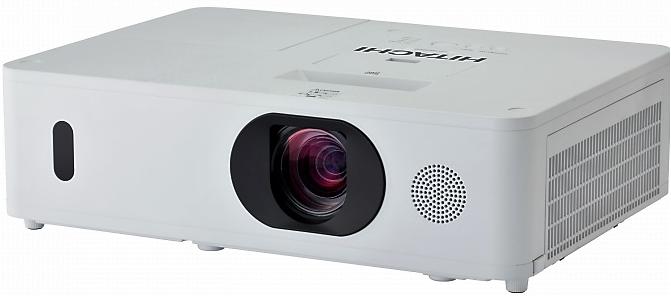

Projektor Hitachi CP-WU5506M
-
Optyka
-
Panel Size
16mm (0.67 inches)
-
Panel Structure
3LCD, 16:10 Aspect Ratio
-
Rozdzielczość
WUXGA (1920 x 1200)
-
Jasność
5200 ANSI lumens (Normal Mode) / 3640 ANSI lumens (Eco Mode)
-
Współczynnik kontrastu
10,000:1
-
Lamp Life (Hours)
4000 (Normal), 6000 (Eco)
-
Obiektyw
Built-in
-
Lens Zoom
Manual Zoom x 1.7
-
Lens Focus
Manual Focus
-
Przesunięcie obiektywu
Vertical: 0 ~ +50% (1:1 ~ 10:0), Horizontal: +/-4.4%
-
Projection Lens F Number
f = 1.65 ~ 2.15
-
Throw Distance
0.8m ~ 8.9m (Wide) / 1.5m ~ 15.2m (Tele)
-
Throw Ratio (distance: width)
1.4 (Wide) / 2.3 (Tele)
-
Display Size Diagonal
30 – 300 inches
-
Cechy i funkcje
-
Cyfrowa korekcja trapezu
(Horizontal: +30 degree Vertical: +30 degrees)
-
Picture Modes
Standard, Natural, Cinema, Dynamic, Board (Black), Board (Green), Whiteboard, Daytime, DICOM Sim
-
Korekty obrazu
Eco Mode (Normal, Eco), Equalizing Color temperature Adjustment, Equalizing Digital Gamma Correction, Magnify 4 times (WXGA) by RS232C/Remote control, Mirror Reverse Image, Up-side Down Image
-
Operating Features
Audio pass through, Audio ports assign, Audio out (standby) and Monitor out / selectable source with MENU, Auto Power Off, Auto signal search & Source skip, Blending, Direct Power On/OFF, Eco Mode (Normal, Eco), Equalizing Color temperature Adjustment, Equalizing Digital Gamma Correction, Filter timer / selectable interval time to show the message for air filter cleaning, (10,000 hours is the default, Hybrid filter), Frame Lock (Data signal with vertical frequency of 49 to 51 Hz, 59 to 61 Hz), HDBaseT, HDCR, Image blank by RS232C/Remote control, Serial number displayed on EASY MENU and on the side of projector, Source naming (in English)
-
Sieć
AMX Device Discovery, Command Control via the Network, Configuring and Controlling the Projector via a Web Browser, Controlling the Projector via Scheduling, Crestron RoomView® (Not accessible through the wireless adapter), Displaying text data transferred via network, Extron XTP system, Failure and Warning Alerts via E-mail, My Image (still image transfer) Display, Network Bridge, PJLink TM, Projector Management via SNMP, Multimedia Function, Support USB-WL-5G (Not support USB-WL-11n) (*This projector does not support Bluetooth), Simple Access Point (SAP) mode / Infrastructure mode, Miracast, Web control, 4 screens can be displayed simultaniously (still image), Moderator mode, LiveViewer Pro (Not support conventional LiveViewer), Mirroring (Win / MacOSX), Streaming Video (Supported Format: MP4, MOV), Streaming Audio (Supported Format: MP3, AAC), Dual IP, MAC Address filltering (with SAP mode)
-
Security
PIN security lock, MyScreen password lock, MyText password lock, Key lock (key pad, remote control)
-
Złącza
-
Wejście cyfrowe
HDMI x 2, HDBaseT x 1
-
Analogue Input
15 pin Mini D-Sub x 2, RCA Jack x 1
-
Video Output
15-pin mini D-sub x 1
-
Wejście audio
3.5mm Stereo Mini Jack x 1, RCA Jack (L/R) x 1
-
Audio Output
3.5mm Stereo Mini Jack x 1
-
Sterowanie (RS-232C)
9-stykowe złącze D-sub x 1
-
Bezprzewodowa sieć LAN
Yes (included)
-
Wired LAN
Yes
-
USB Type A
USB type A x 1 for wireless adapter
-
USB typu B
Mini USB type B x 1 for service
-
Moc
-
Zasilanie
AC 100~120 / 200~240V, 50 / 60Hz
-
Power Consumption Operating / Standby
470 W / 450 W / Less than 0.5W
-
Parametry fizyczne
-
Masa
6.8kg
-
Wymiary (szer. x wys. x głęb.)
460 x 138 x 334mm
-
Noise
38dB (Normal), 29dB (Eco)
-
Filter Life (hours)
10000
-
Akcesoria
-
Supplied Accessories
Remote Control with Batteries, USB Wireless Adapter (USB–WL–5G), Power Cord, Computer Cable, Lens Cover, Adapter Cover, Terminal Cover, Application CD, User's Manual (Book, CD–ROM), Security Label, Hook Metal, Screw, Cable Tie, HDMI Cable Holder
-
Pilot zdalnego sterowania
HL03037
-
Replacement Lamp / Filter
DT01931, UX41161
-
Projector/ Lamp Warranty
3 years / 6 months (for education and extended warranties please contact your local dealer.)
Hitachi CP-WU5506M Connection Ports
