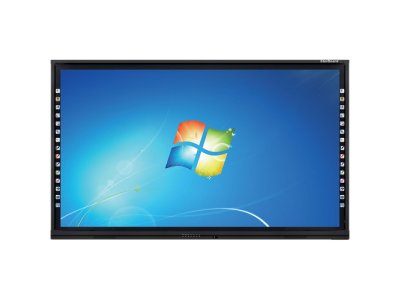

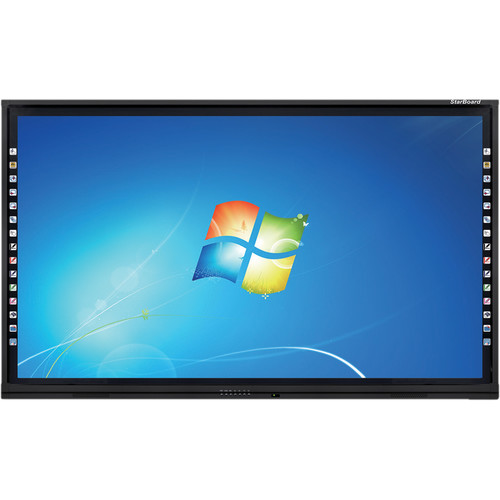

Monitor Interaktywny HITACHI TE-SN-98
Dane techniczne:
Display Details
Display area 2158.8*1214.4 mm
BacklightType LED
Brightness 500cd/m2
Display ratio 16:9
View Angle 89°
Contrast Ratio 1400:1
View Angle 178°
Picture model 16:9/4:3/dot to dot/full screen
Resolution UP to 3480*2160
Orientation Landscape
Displayable Colors RGB
Minimum life length panel 50.000 hours Standard Energy Star
Monitor Details
Video Mode PAL, NTSC, SECAM
Sound Mode D/K,B/G,I, M
Resolution 1280*720/1280*960/1280 *1024/1024*768/1360*768/1440* 900/1600*1200/1920*1080/ 3480*2160
Response time <25ms
Input port USB input 2 x USB-A (horizontal)
PC-RGB input 2 x D-SUB 15Pin (blue)
PC Audio Input 2 x HDMI
RS232 1 x RS232
output port PC-RGB output 1 x D-SUB 15Pin (black)
Touch Monitor Details
Technology infrared
Glass Tempered glass/Anti-Glare glass Protective glass with 7 MOHS strength
Response Object Finger, Display Pen, Any transparent object
Points input 10
Accuracy Φ<3mm
Positioning resolution 4096*4096/16384*16384/32768*32768
Continuous speed <8ms
Cursor speed >120dot/s
PC port USB
OS(system) WINDOWS all/LINUX/MAC /Android
PC response System auto response
Electrical Details
Voltage range AC(90~240)V-50/60HZ
Power consumption standby:<1W / Rated power:<510W
Work temperature 32~1040C
Work Humidity 0~90%
Storage temperature -4~140C
Storage Humidity 0~90%
Optional Parts
OPS i3 CPU, 4GB RAM,500GB HDD
i5 CPU, 4 GB RAM, 500 GB HDD
i7 CPU, 4 GB RAM, 500 GB HDD
Dimensions and Weight
Product dimension 2227*1292*120 mm /±2mm Package
Size 2378*1455*307 mm/±5mm
Weight Net approx.158 kg /±2 kg
Weight Gross approx.190kg
