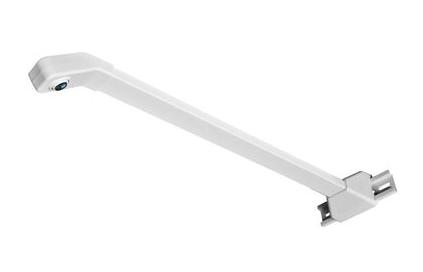

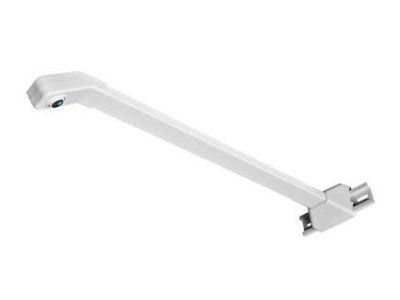

Camera Unit (with Attachment Arm & USB Cable)
Screen Size
60~100" (1.52~2.54m) (4:3, 16:10)

Calibration points
9 or 25 points

Pointing accuracy
Up to 6 dots (@ 25 point calibration, WXGA)

Capturing rate
<16ms

Response time
<160ms

Applicable wave length
850nm (IR)

Power source
Via USB

Power Consumption
Up to 180mA (USB 5V)

Connector
USB mini B plug (4m from edge of the pole)

Indicator
Green (power on), Orange (IR detection)

Dimensions (W x D x H)
109 x 750 x 107mm

Weight
780g (Including attachment arm and USB cable)

Electronic Pen
IR wave length
About 850nm

IR frequency
DC

Power source
Capacitor charge

Time to full charge
About 1 minute

Time in use
About 1 hour (varies with conditions of use) (time in continuous drawing is about 10 minutes)

Power Consumption
5V 500mA (max) (when charging via USB)

Indicator
Red (for capacitor remaining, charge condition)

Dimensions
Length 185mm, diameter 19mm

Weight
40g

Pen Case
Number of pens for storage
2

Power Consumption
When charging USB: 5V 500mA (max)

Dimensions (W x D x H)
220 x 120 x 30mm

Weight
Approximately 270g

USB Cable
Connector
USB A, USB mini B

Dimensions
Length 500mm

Certification
Certification IM-1
CE EN 55022, EN 55024, WEEE/RoHS compliant

Environmental Conditions
Ambient temperature
operating: 5~35°C/storage: -20~60°C

Humidity
operating/storage: 10~85% RH (without condensation)

Compatible Models
Compatible Models IM-1P
All projectors*, except for Short Throw and Ultimate Short Throw models, with a throw distance greater than 85cm to achieve a diagonal display size of 80" (203.2cm)

Note IM-1
*Please consult your dealer for further information
