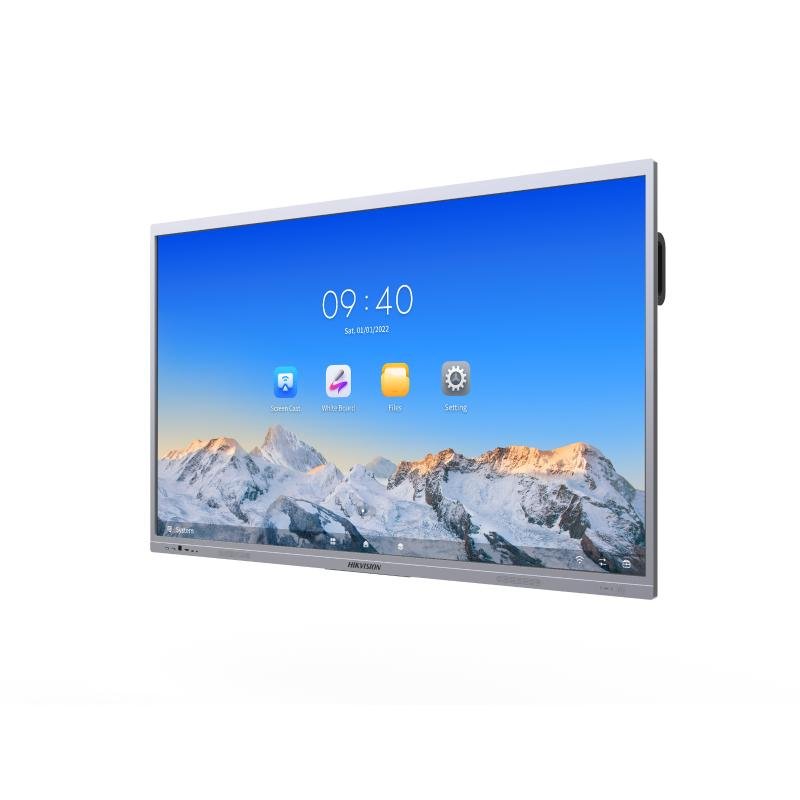

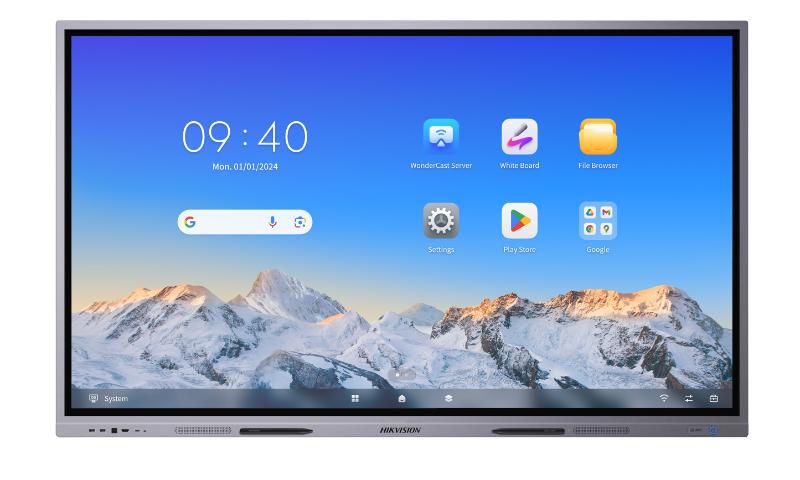

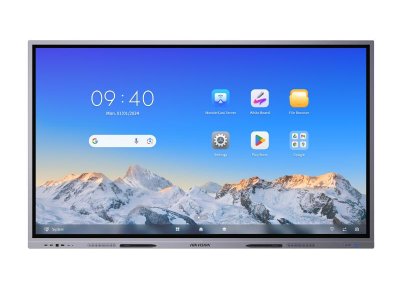

Product Model DS-D5C98RB/A
Display
Screen Size 98 inch
Backlight DLED
Pixel Pitch 0.5622 (W) × 0.5622 (H) mm
Resolution 3840 × 2160 @60 Hz
Brightness 600 cd/m² (Typ.)
Color Depth 10 bit
Display Color 1.07 G
Response Time 5 ms
Panel Type VA
Contrast Ratio
5000:1 (Static)
30,000:1 (Dynamic)
Color Gamut 72% NTSC (CIE1931) (Typ.)
Refresh Rate 60 Hz
Viewing Angle 178° (H)/178° (V)
Aspect Ratio 16:9
Surface Hardness
9H (Pencil)
7 (Mohs)
Surface Glass Anti-Glare Glass
Surface Haze 25% Haze
Glass Bonding Method Zero Lamination
Display Area 2158.848 mm × 1214.352 mm
Working Duration 7 × 16 H
Transmittance 88% ± 3
Lifespan 50,000 hours
Touch
Type Infrared Touch Screen
Touch Point Up to 50-point multi-touch
Touch Response Time ≤ 2 ms
Minimum Touch Object ≥ 1.5 mm (≥ 90% touching area)
Touch Precision ± 0.5 mm (≥ 90% touching area)
Touch Resolution 32767 × 32767
Built-in System
Operation System Android 13.0
Memory 8 GB
Built-in Storage 128 GB
Processor Quad-core Cortex-A76 × 4（2.4 GHz）and quad-core Cortex-A55 × 4（1.8 GHz）
GPU Mali-G610 MC4
HDCP Version 2.3
Internal Function
Loudspeaker Built-in 2 × 20 W + 25 W loudspeaker;
Bluetooth Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1
NFC Support screen mirroring by Android phones
Light Sensor Yes
Interface
Video & Audio Input HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1
Video & audio output HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1
Control interface TOUCH-USB 3.0 × 3, RS232 × 1
Network Interface
LAN (1000 Mbps) × 2
WIFI AP & Station, 2.4G/5G
WIFI 6, IEEE 802.11 a/b/g/n/ac/ax 2 × 2 MIMO (2.4 GHz and 5 GHz) authentication
protocols WEP, WPA, WPA2, PSK and 802.1X EAP
Data Transmission Interface
USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging
functions; side charging 15 W, front charging 65 W)
Power
Power Supply 100 to 240 VAC, 50/60 Hz
Standby Consumption ≤ 0.5 W
Average Consumption < 325 W
General

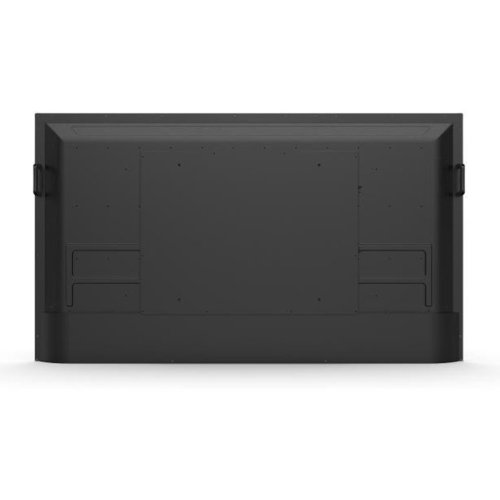

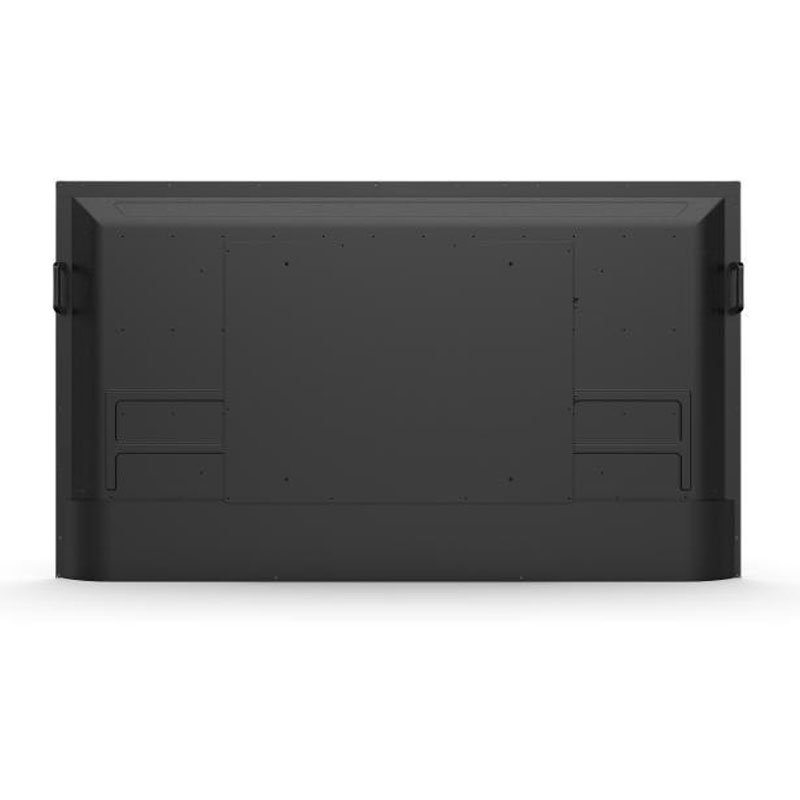

VESA 1000 mm × 400 mm (4 × M8-20 mm)
Product dimensions 2219.8 mm × 1336.4 mm × 105.7 mm
Accessory
Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB
cable, 3.5 M HDMI cable (2.0), power cable , bluetooth remote control.
Package Dimensions (W × H × D) 2520 mm × 330 mm × 1700 mm
Net Weight 94 kg
Gross Weight 137 kg
Working Environment
Working Temperature 0 °C to 40 °C (32 °F to 104 °F)
Working Humidity 10%~90% RH
 Physical Interface
Interface Description Interface Description
1.SPDIF SPDIF interface 2.Line OUT Audio output interface
3.Line IN Audio input interface 4.VGA IN
Video devices connection
interface
5.TYPE-C 2 Type-C interface 6.DP IN Display input interface
7.TOUCH-USB 2 Peripheral touch interface 8.HDMI IN 2 HDMI 2 input interface
9.TOUCH-USB 1 Peripheral touch interface 10.HDMI IN 1 HDMI 1 input interface
11.USB USB interface 12.MULTI-USB 2
Multi-functional USB
interface
13.MULTI-USB 1
Multi-functional USB
interface
14.HDMI OUT HDMI output interface
15. RS 232 RS 232 interface 16. LAN 1 Network interface 1
17.LAN 2 Network interface 2 18. Power Button Power Button
19. Power Switch Power Switch
A. USB USB interface B. USB USB interface
C. MULTI
-USB
Multi
-functional USB
interface
D. HDMI IN HDMI IN interface
E. TOUCH
-USB TOUCH
-USB interface
