Product
Model

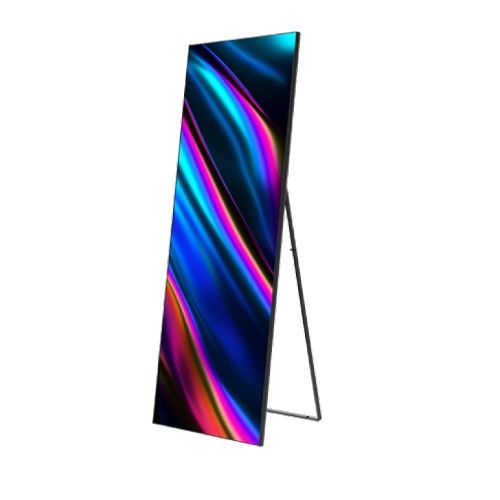

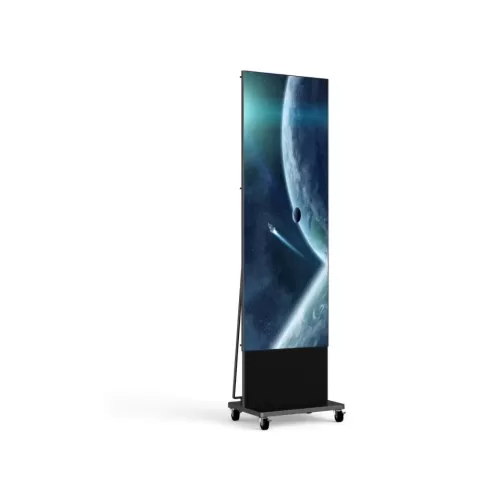

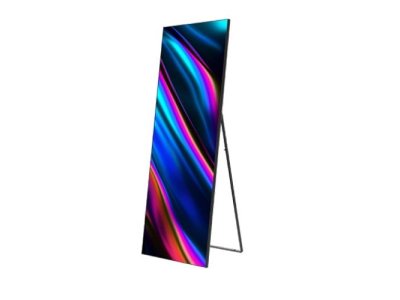

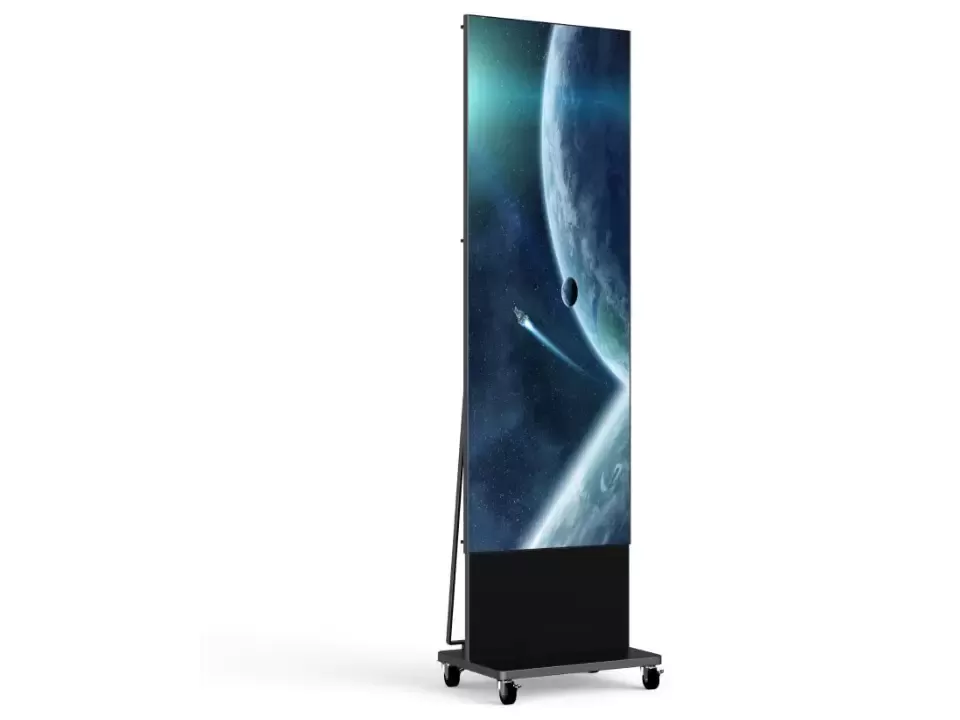

Product Model DS-D4215MI-070(B)
Cabinet
Pixel Configuration SMD Triad LED
Pixel Pitch Category P1.5
Pixel Pitch 1.5625 mm
Modules Component Cabinet × 5, single cabinet (2 × 4)
Dimensions (W × H × D) 613 × 1695.5 × 68.1 mm (24.1 × 66.8 × 2.7 inch)
Resolution 384 × 1080
Area 1.0125 m²
Weight 29 kg (64.0 lb.)
Pixel Density 409600 dots/m²
Lamp Board Housing Without housing, glue potting
Cabinet Material Aluminum alloy
Maintenance Method Front maintenance for cabinet, and rear maintenance for system backpack
Display
White Balance
Brightness
600 cd/m²
Color Temperature 3000 to 10000 K adjustable
Viewing Angle Horizontal 160°, vertical 160°
Contrast Ratio ≥ 3000:1
Color Uniformity ± 0.003 Cx, Cy
Brightness Uniformity ≥ 97%
Processing
Performance
Driving Method Constant current driving
Frame Frequency 60 Hz
Refresh Rate Up to 3840 Hz
Grey Level Up to 16 bit
Power
Power Supply 110 to 220 VAC ± 15%
Max. Consumption ≤ 450 W/m²
Average Consumption < 150 W/m²
Working
Environment
Working Temperature -10 to 40 °C (14 to 104 °F)
Working Humidity 10% to 60% RH (non-condensing)
Storage Humidity 10% to 85% RH (non-condensing)
Storage Temperature -20 to 60 °C (-4 to 140 °F)
General
Package Dimension
(W × H × D)
1831 × 1082 × 246 mm (72.1 × 42.6 × 9.7 inch)
Gross Weight 35 kg (77.2 lb.)
Packing List Power cord × 1, HDMI × 1, Wi-Fi antenna × 2
