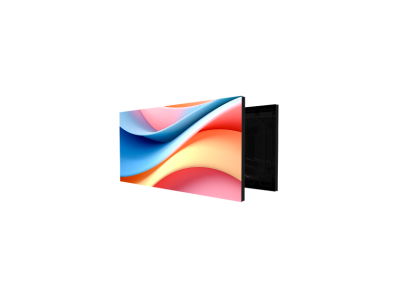

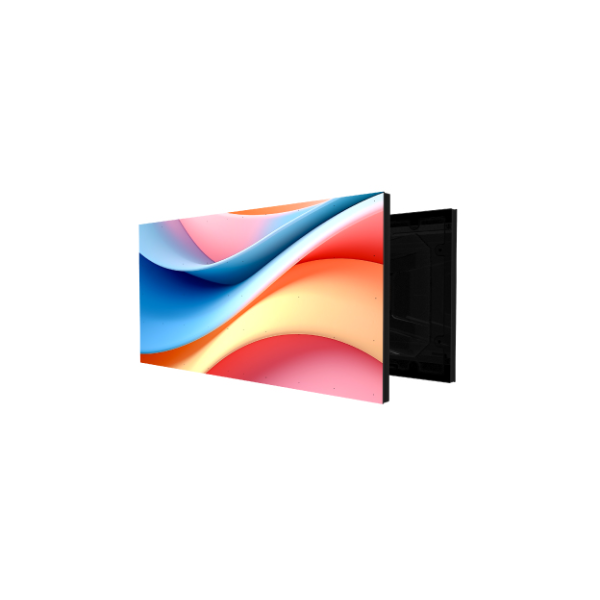

DS-D43Q40CA-1PN,outdoor,4.0mm,320*160mm,1920hz

Model DS-D43Q40CA-1PN
Cabinet
Pixel Configuration 1R1G1B
Pixel Pitch Category P4
Pixel Pitch 4 mm
Dimensions (W × H × D) 320 mm × 160 mm × 18 mm (12.60'' × 6.30'' × 0.71'')
Resolution 80 × 40
Pixel Density 62500 dots/m²
Lamp Board Housing With housing

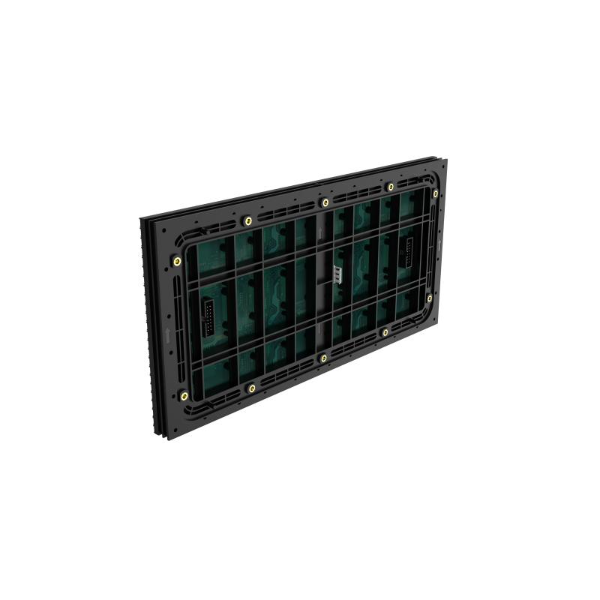

Maintenance Method Back maintenance
Cabinet Flatness 0.2 mm
Protection Level IP65 (Front)
Key Material
Lamp Encapsulation 1921
Control System
DS-D42C08-H
DS-D42C16-H
Display
White Balance Brightness 4500 nits
Color Temperature 2000 K to 14000 K adjustable
Viewing Angle Horizontal 140°, vertical 120°
Contrast Ratio ≥ 5000:1
Color Uniformity ≤ ± 0.003Cx, Cy
Brightness Uniformity ≥ 97%
Processing
Performance
Driving Method Constant current driving
Frame Frequency 60 Hz
Refresh Rate Up to 1920 Hz
Grey Level Up to 14 bit
Power
Power Supply 110 to 220 VAC ± 15%
Max. Consumption ≤ 500 W/m² (4500 nits)
Average Consumption ≤ 170 W/m² (4500 nits)
General
Package Dimensions (W ×
H × D)
634 (W) mm × 410 (H) mm × 380 (D) mm (25'' × 16'' × 15'')
Net Weight 22450 g (40 pcs in 1)
Working
Environment
Working Temperature -20 °C to 50 °C (-4 °F to 120 °F)
Working Humidity 10% RH to 80% RH
Storage Humidity 10% RH to 90% RH
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
