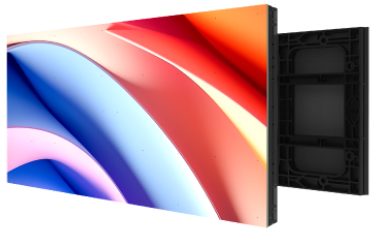

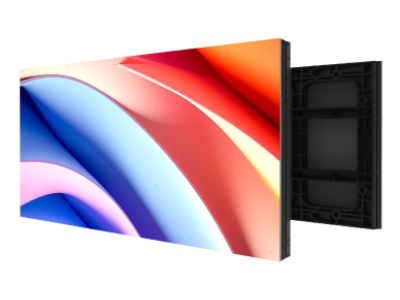

DS-D41Q25CA-1PH/DH,indoor,2.5mm,320*160mm,3840hz,2121,double hub

Product Model DS-D41Q25CA-1PH/DH
Module
Pixel Configuration SMD Triad LED
Pixel Pitch Category P2.5
Pixel Pitch 2.5 mm
Lamp Bead Dimensions 2121
Dimensions (W × H × D) 320 mm × 160 mm × 16.6 mm (12.60 '' × 6.30 '' × 0.65 '')
Resolution 128 × 64
Pixel Density 160000
Signal Source Interface HUB75E
Display
White Balance Brightness 550 cd/m2
Color Temperature 3000 K to 10000 K adjustable
Viewing Angle 160° (H)/160° (V)
Brightness Uniformity ≥ 97%
Color Uniformity ≤ ± 0.003Cx, Cy
Contrast Ratio 3000:1
Refresh Rate 3840 Hz
Processing Performance
Scanning Amount 32
Grey Level Up to 16 bit
Power
Max. Consumption ≤ 420 W/m2
Average Consumption < 180 W/m2
Input Voltage DC: 4.5 V to 5 V
Working Environment
Working Temperature -10 °C to 40 °C (14 °F to 104 °F)
Working Humidity 10% RH to 80% RH (without condensation)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity 10% RH to 85% RH (without condensation)
General
Package Dimensions (W × H × D)
673 (W) mm × 453 (H) mm × 390 (D) mm (26.50'' × 17.83'' × 15.35'')
(40 cabinets in 1 box)
Packing List
Several LED lamp beads and IC components
Several signal cables and power cables
Gross Weight 20 kg (4.41 lb)
Net Weight 16 kg (3.53 lb)
