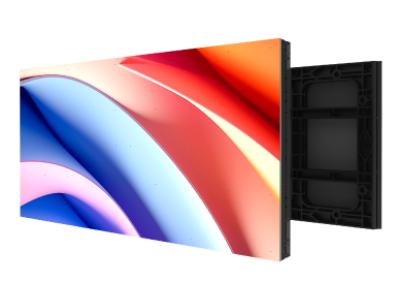

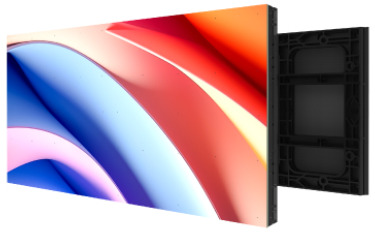

DS-D41Q15CA-1PH,indoor,1.5mm,320*160mm,3840hz

Product
Model
Product Model DS-D41Q15CA-1PH
Module
Pixel Configuration SMD
Pixel Pitch 1.538 mm
Lamp Bead Dimensions 1212
Dimensions of Module 320 mm × 160 mm
Module Resolution 208 × 104
Pixel Density 422500
Signal Source Interface HUB320
Display
White Balance Brightness 550 nits
Color Temperature 3000K to 10000K adjustable
Viewing Angle 160°(H)/160°(V)
Brightness Uniformity ≥ 97%
Color Uniformity ≤ ± 0.003Cx, Cy
Contrast Ratio 3000:1
Refresh Rate 3840 Hz
Processing
Performance
Scanning Amount 52
Grey Level Up to 16 bit
Power
Max. Consumption ≤ 600 W/m2
Average Consumption < 290 W/m2
Input Voltage DC: 4.5 V to 5 V
General
Package Dimensions (W × H × D)
673 (W) mm × 248 (H) mm × 390 (D) mm (26.50'' × 9.76'' × 15.35'')
(20 cabinets in 1 box)
Packing List
Several high magnetic brackets
Several LED lamp beads and IC components
Several signal cables and power cables
Gross Weight 0.55 kg (1.21 lb)
Net Weight 0.48 kg (1.06 lb)
Working
Environment
Working Temperature -10 °C to 40 °C (14 °F to 104 °F)
Working Humidity 10% RH to 80% RH (without condensation)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Storage Humidity 10% RH to 85% RH (without condensation)
