Product Model
Product Model DS-DT60V-03HI06NO
Product Type
Product Type LED controller
Processing Performance
Brightness Control 1 to 100 tunable (level-by-level white balance)
Input Frame Rate 25 Hz to 60 Hz
Grey Level 256
Display Color 16 MP
Processing Depth 8 bit
Image Scaling Supported
Chassis
Chassis Height 1 U
Chassis Width Half width
Sending Card Interface
Light Sensor Port Not supported
LED Controller Power
Average Consumption 16.5 W
Power Interface Quantity 1
Power Interface 100 to 240 VAC, 50/60 Hz
Interface
USB Interface 1 channel of USB 2.0
Network
Control Network Port
2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
Connects to the external network and supports multi-device network cascade
management.
Video Wall
Open Windows
3 signal source windows + 2 image windows + 1 scrolling text window + 1 background
window
Layers per Device 7
Scenes 10
Background Images 1
Background Resolution Min.: 640 × 480, Max.: 1920 × 1200
Background Format JPG/JPEG
Subtitles 1
Subtitle Width 32760
Subtitle Font Supports Xiaomi font and custom font
General
Screen 128 × 64, OLED screen
Working Temperature -10°C to 50°C
Storage Humidity 10% to 90%
Working Humidity 10% to 90%
Storage Temperature -10°C to 50°C
Packaging Size (W × H × D) 353 mm × 237 mm × 89 mm (13.9 inch × 9.33 inch × 3.50inch)
Net Weight 1.18 kg (2.60 lb)
Gross Weight 1.62 kg (3.57 lb)
Dimensions (W × H × D) 210 mm × 180 mm × 42 mm (8.27 inch × 7.09 inch × 1.65 inch)
Packing List
1 × AC power cord, 1 pair of connecting brackets, 1 pair of mounting brackets, 1 ×
RS-485 green Phoenix contact for central control device, 1 × regulatory compliance
and safety information manual, 1 × RF remote control
Audio Input
Audio Input Interfaces 3
Audio Input Interface Type 3 channels of HDMI input with embedded audio
Video Input
Video Input Interfaces 3
Video Input Interface Type HDMI 1.4
Max. Video Input Resolution 1080p
Video Input Resolution
HDMI 1.4 port:
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4. Interlacing signal input is not supported.
Video Input Processing Feature
Processing depth: 8 bit
Sampling format:
RGB: 444
YUV: 444
YUV: 422
Video Output
Max. Video Output Resolution 3900000
Loading Capacity for Video
Output to LED
Single port load 650000,
Width 144 - 5120,
Height 64 - 5120,
Width must be a multiple of 2 and height must be a multiple of 1
LED Loading Interfaces 6
LED Loading Interface Type RJ-45
Video Live View Output
Interfaces
1
Type of Video Live View Output
Interface
HDMI 1.4
Video Live View Output
Resolution
720p@60 Hz
Loading Mode
Mini loading: single port load 650000
Standard loading: single port load 2925000 (only available on network ports 1 and 2)
Audio Output
Audio Output Interface 1 × 3.5 mm audio
Wireless
Remote Control Supports IR remote control and RF remote control
Device Parameters
Button
+: increase brightness
-: decrease brightness
Source: change signal source
Serial Interface
1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port
(green Phoenix contact) Baud rate: 115200, data bit: 8
Power Switch Button switch

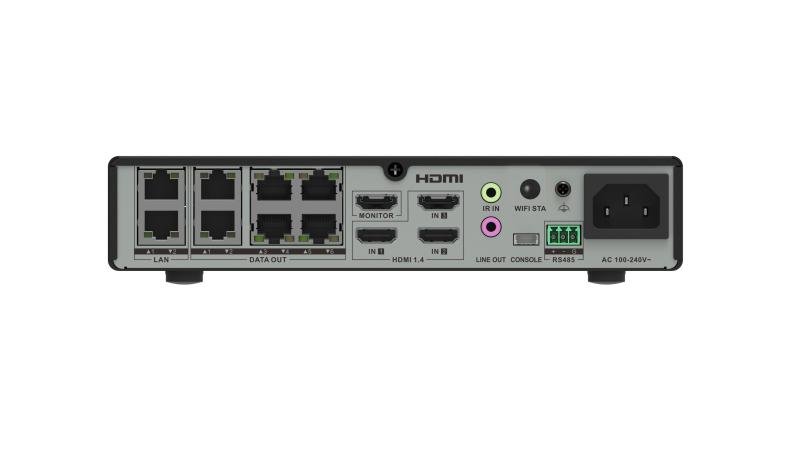

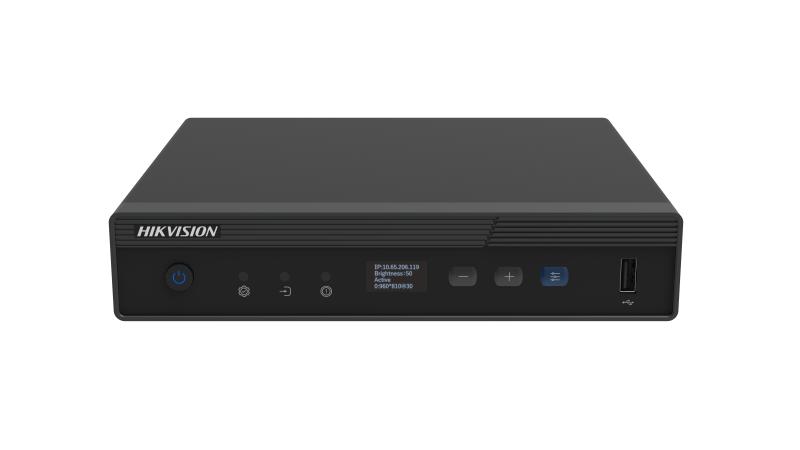

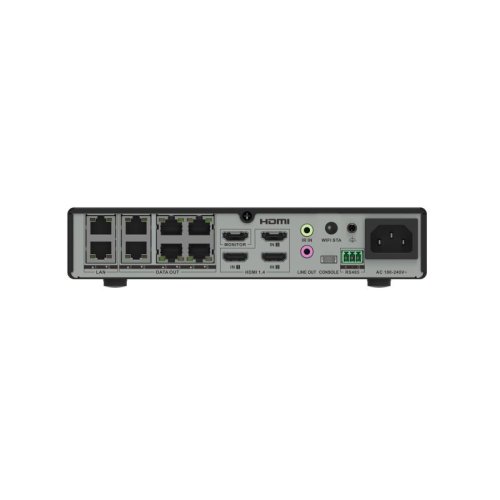

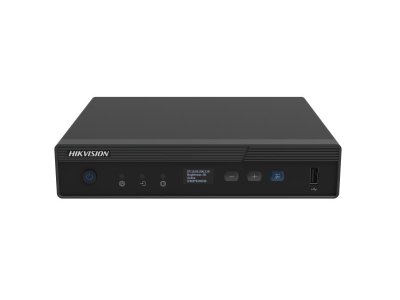

Front Panel
Indicator
Active: The device is running.
Source: The signal source is accessed.
Error: The device operation exception occurs.
Power Switch
On: The device is started and running.
Off: The device is not powered on or is not started.
Control Interface
IR Input
1 × 3.5 mm connector
Supports the access of IR remote control.
