Product Model
Product Model DS-DT60V-03HDI20NO/U
Product Type
Product Type LED controller
Processing Performance
Brightness Control 1 to 100 tunable (level-by-level white balance)
Input Frame Rate 25 Hz to 120 Hz
Grey Level 256
Display Color 16 MP
Processing Depth 8 bit
Image Scaling Supported
Chassis
Chassis Height 1 U
Chassis Width 440 mm (17.32 inch)
Sending Card Interface
Light Sensor Port Supported
LED Controller Power
Average Consumption ≤43 W
Power Interface Quantity 1
Power Interface 100 to 240 VAC, 50/60 Hz
Interface
USB Interface 1 channel of USB 2.0
Network
Control Network Port
2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)
Connects to the external network and supports multi-device network cascade
management.
Video Wall
Open Windows
3 signal source windows + 2 image windows + 1 scrolling text window + 1 background
window
Layers per Device 7
Scenes 10
Background Images 1
Background Resolution Min.: 640 × 480, Max.: 1920 × 1200
Background Format JPG/JPEG
Subtitles 1
Subtitle Width 32760
Subtitle Font Supports Xiaomi font and custom font
General
Working Temperature -10°C to 50°C
Screen 128 × 64, OLED screen
Storage Humidity 10% to 90%
Working Humidity 10% to 90%
Storage Temperature -10°C to 50°C
Packaging Size (W × H × D) 589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)
Net Weight 3.30 kg (7.28 lb.)
Gross Weight 4.50 kg (9.92 lb.)
Dimensions (W × H × D) 440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)
Packing List
1 × AC power cord, 1 pair of mounting brackets, 2 × RS-485 green Phoenix contact for
central control device, 1 × regulatory compliance and safety information manual, 1
pair of rubber feet, 1 × RF remote control
Audio Input
Audio Input Interfaces 2
Audio Input Interface Type 1 channel of HDMI input with embedded audio + 1 channel of HDMI in-band audio
Video Input
Video Input Interfaces 3
Video Input Interface Type 1-channel HDMI 2.0 + 1-channel HDMI 1.4 + 1-channel of DVI
Max. Video Input Resolution HDMI 2.0:4K; HDMI 1.4: 1080p; DVI: 1080p
Video Input Resolution
HDMI 2.0 port:
Max. resolution: 4096 × 2160@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz
Max. width: 144 to 8192, alignment: 2 alignment
Max. height: 144 to 8192, alignment: 1 alignment
Supports HDCP 2.2
Interlacing signal input is not supported.
HDMI 1.4 port:
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4
Interlacing signal input is not supported.
DVI port:
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4
Interlacing signal input is not supported.
Video Input Processing Feature
Processing depth: 8 bit
Sampling format:
RGB: 444
YUV: 444
YUV: 422
YUV: 420
Video Output
Max. Video Output Resolution 13000000
Loading Capacity for Video
Output to LED
Single port load 650000,
Width 144 - 8192,
Height 64 - 8192,
Width must be a multiple of 2 and height must be a multiple of 1
LED Loading Interfaces 20
Video Output Resolution RJ-45
Video Loop Output Interface 2
Type of Video Loop Output
Interface
1 channel of HDMI 2.0 + 1 channel of DVI
Video Loop Output Resolution
HDMI 2.0 port:
Max. resolution: 4096 × 2160@60 Hz
Min. resolution: 320 × 180@60 Hz
Output resolution maintains consistency with the video input resolution.
Max. width: 144 to 8192, alignment: 2 alignment
Max. height: 144 to 8192, alignment: 1 alignment
Supports HDCP 2.2
DVI port:
Max. resolution: 1920 × 1200@60 Hz
Min. resolution: 320 × 180@60 Hz
Output resolution maintains consistency with the video input resolution.
Max. width: 144 to 4096, alignment: 2 alignment
Max. height: 144 to 4096, alignment: 1 alignment
Supports HDCP 1.4
Video Live View Output
Interfaces
1
Type of Video Live View Output
Interface
HDMI 1.4
Video Live View Output
Resolution
720p@60 Hz
Loading Mode
Mini loading: single port load 650000
Standard loading: single port load 2925000 (available on any network port)
Audio Output
Audio Output Interface 1 × 3.5 mm audio
Wireless
Remote Control Supports IR remote control and RF remote control
Device Parameters
Button
+: increase brightness
-: decrease brightness
Source: change signal source
Serial Interface
1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port
(green Phoenix contact) + 1 × RS-485 serial port for light sensor (green Phoenix
contact)
Baud rate: 115200
Data bit: 8
Power Switch Button switch

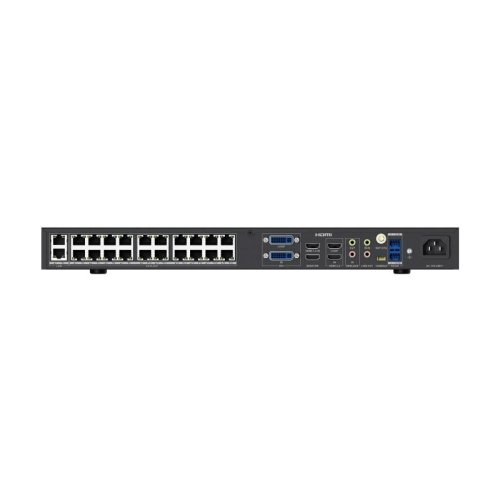

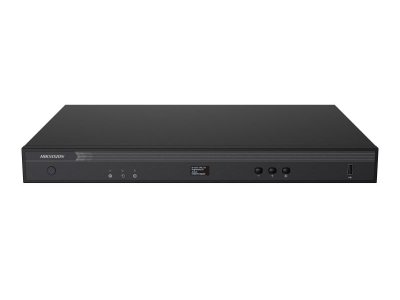

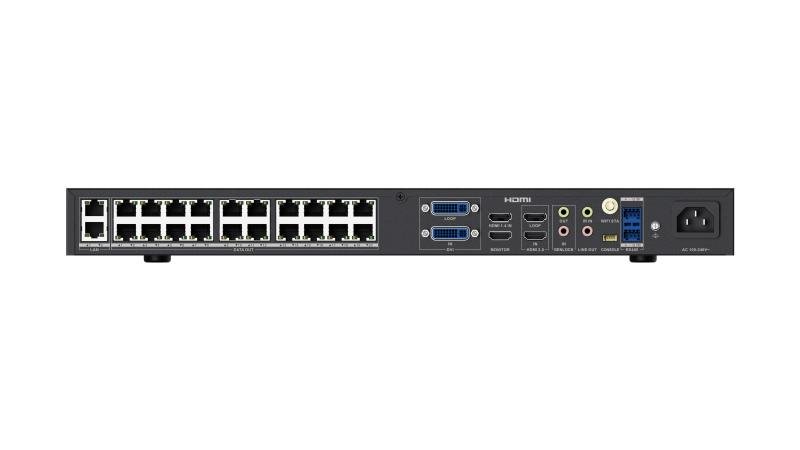

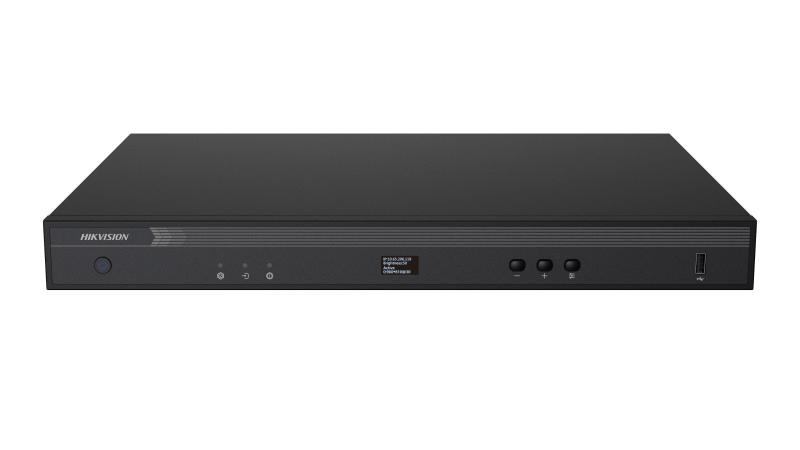

Front Panel
Indicator
Active: The device is running.
Source: The signal source is accessed.
Error: The device operation exception occurs.
Power Switch
On: The device is started and running.
Off: The device is not powered on or is not started.
Control Interface
IR Input
1 × 3.5 mm connector
Supports the access of IR remote control.
