Processing Performance
Brightness Control
1 to 100 tunable (level-by-level white balance)
Input Frame Rate
25 Hz to 60 Hz
Grey Level
256
Display Color
16 MP
Processing Depth
8 bit
Image Scaling
Supported
Product Model
Product Model
DS-DT60C-01HI04NO
Chassis
Chassis Height
1 U
Chassis Width
Half-width
Product Type
Product Type
LED controller
Sending Card Interface
Light Sensor Port
Not supported
LED Controller Power
Average Consumption
≤ 13 W
Power Interface Quantity
1
Power Interface
100 to 240 VAC, 50/60 Hz
Interface
USB Interface
1 channel of USB 2.0
Network
Control Network Port
2 × 10/100/1000 Mbps self-adaptive Ethernet port (RJ-45)

Connects to the external network and supports multi-device network cascade management.

Video Wall
Background Images
2
Background Resolution
Min.: 640 × 480, Max.: 1920 × 1200
Background Format
JGP/JPEG
General
Working Temperature
-10°C to 50°C
Storage Humidity
10% to 90%
Working Humidity
10% to 90%
Storage Temperature
-10°C to 50°C
Packaging Size (W × H × D)
353 mm × 237 mm × 89 mm (13.90 inch × 9.33 inch × 3.50inch)
Net Weight
1.1 kg (2.43 lb)
Gross Weight
1.52 kg (3.35 lb)
Dimensions (W × H × D)
210 mm × 180 mm × 42 mm (8.27 inch × 7.09 inch × 1.65 inch)
Packing List
1 × AC power cord, 1 × connecting bracket, 1 × mounting bracket, 1 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 1 × RF remote control
Audio
Audio Input Interfaces
1
Audio Input Interface Type
1 channel of embedded HDMI input
Audio Output Interfaces
1
Audio Output Interface Type
3.5 mm audio output
Video Input
Video Input Interfaces
1
Video Input Interface Type
HDMI 1.4
Max. Video Input Resolution
1080P
Video Input Resolution
HDMI 1.4 port:

Max. resolution: 1920 × 1200@60 Hz

Min. resolution: 320 × 180@60 Hz

Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz

Max. width: 144 to 4096, alignment: 2 alignment

Max. height: 144 to 4096, alignment: 1 alignment

Supports HDCP 1.4. Interlacing signal input is not supported.

Video Input Processing Feature
Processing depth: 8 bit

Sampling format:

RGB: 444

YUV: 444

YUV: 422

Video Output
Max. Video Output Resolution
2600000
Loading Capacity for Video Output to LED
Single port load 650000,

Width 144 - 5120,

Height 64 - 5120,

Width must be a multiple of 2 and height must be a multiple of 1

LED Loading Interfaces
4
LED Loading Interface Type
RJ-45
Loading Mode
Mini loading: single port load 650000

Standard loading: single port load 2925000 (only available on network ports 1 and 2)

Wireless
Remote Control
Supports IR remote control
Device Parameters
Button
+: increase brightness

-: decrease brightness

Source: change signal source

Serial Interface
1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact)

Baud rate: 115200, data bit: 8

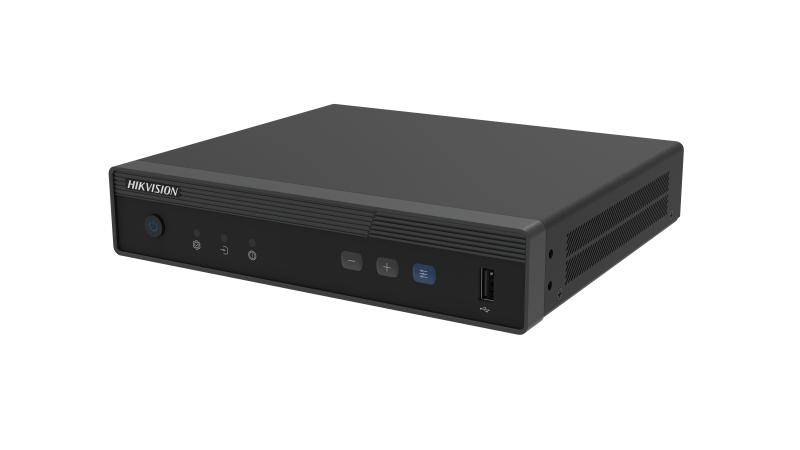

Front Panel
Indicator
Active: The device is running.

Source: The signal source is accessed.

Error: The device operation exception occurs.

Power Switch
On: The device is started and running.

Off: The device is not powered on or is not started.

Control Interface
IR Input
1 × 3.5 mm connector

Supports the access of IR remote control.
