SYSTEM
Effective Freq. Range
65 Hz-20 kHz (-10dB)
Coverage angle / Dispersion
142°x142° (HxV)
Power handling
100 W RMS / 400 W Peak
Sensitivity
88 dB (1W/1m)
Maximum SPL
108 db continuous / 114 dB peak
Power options (Hi Z Multi-tap)
100V: 60W / 30W / 15W / 7,5W / 8Ω
70V: 60W / 30W / 15W / 7,5W / 3,75W / 8Ω
Recommended amplifier power
200 W RMS
TRANSDUCERS
Ways
2-ways full range
Low frequency driver
8" woofer
High frequency driver
1" tweeter
Nominal impedance
8Ω
PHYSICAL
Environmental
IP65 rated
Enclosure material
ABS
Grille material
Aluminium

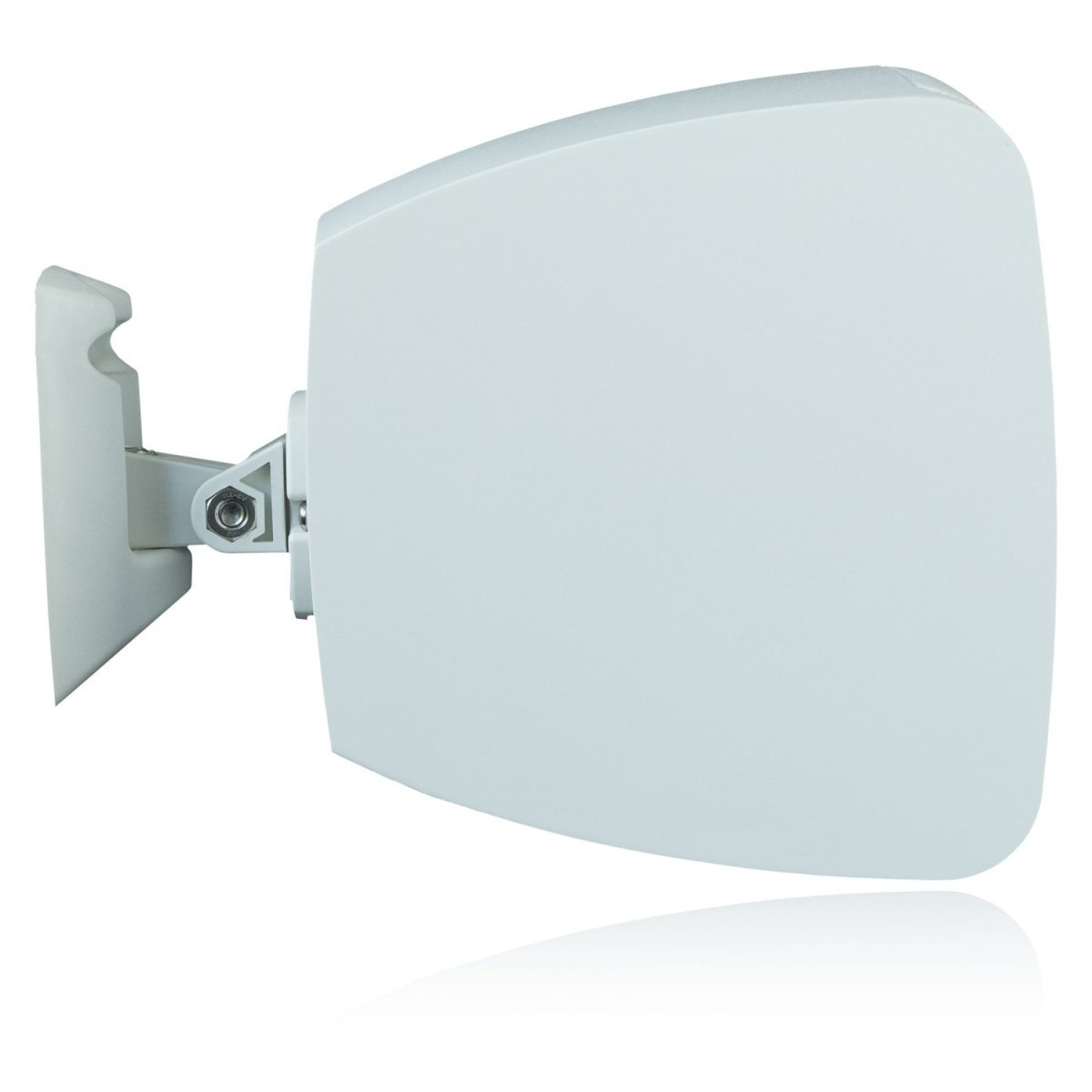

Mounting system
Cabinet
Operating temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Operating humidity
<85% HR
Storage temperature
Min: -10°C ; 14°F
Max: 40°C ; 104°F
Storage humidity
<90% HR
Included accessories
Wall-mount bracket, security steel cable
Finished colour
White (RAL 9003) or black (RAL 9005)
Dimensions
264 x 269 x 234 mm / 10.39 x 10.59 x 9.21 in. (WxHxD)
Including brackets: 264 x 269 x 322 mm / 10.39 x 10.59 x 12.68 in. (WxHxD)
Weight
4.25 kg / 9.37 lb
including accessories:
4.75 kg / 10.47 lb
Pieces per box
Sold in pairs
Shipping dimensions
720 x 390 x 300 mm / 28.35 x 15.35 x 11.81 in. (WxHxD)
Shipping weight
5.3 kg / 11.68 lb
