Display Type 0.67" 1chip DMD
Resolution WUXGA (1920 x 1200)
Aspect Ratio 16:10
Brightness 16,000lm
Contrast Ratio 100,000:1
Projection Light Source Laser (Blue) + Phosphor
Light Source Life 20,000 hours
Image Diagonal Depends on lens (See below table)
Lens (F Value / Focal length) Depends on lens (See below table)
Zoom / Focus Adjustment Motorized
Zoom Ratio Depends on lens
Throw Distance Depends on lens
Throw Ratio Depends on lens
Lens Shift (Motorized) V: +60%, H: +/-10% (AH-AC21020)
Keystone Correction Vi +/-30 degrees, H: +/-30 degrees 4-Comer
Projection Elevation Adjustment Up to 5 degrees
Scanning Frequency H Sync: 15.73- 91.14 kHz, V Sync: 23.98 - 119.85 Hz
Dot Clock 162 MHz
Input Signals - Computer WUXGA (1920 x 1200) -VGA (640 x 480)
Input Signals - Video 1080 i/p, 720 p, 576 i/p, 480 i/p

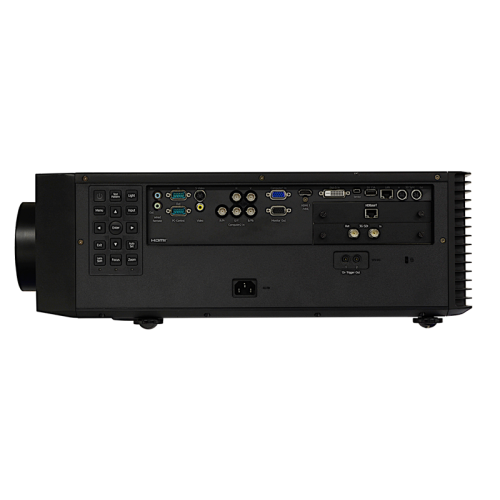

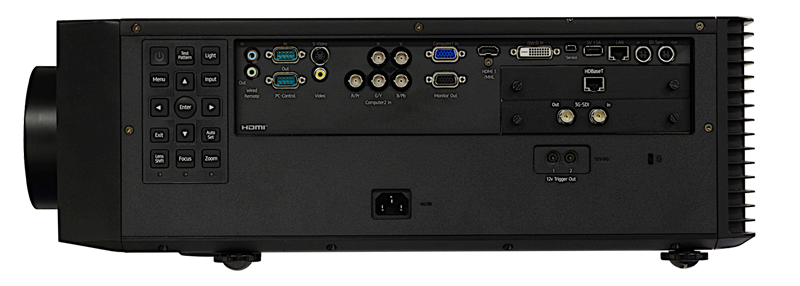

Terminal
3G-SDI BNC x 2 (IN / OUT)
HDBaseT R145 x 1
HDMI HDMI x 1 (Ver 1.4)
DVI-D DVI-D x 1
VGA D-Sub 15 x 2 (IN / OUT)
RGBHV/ Component 5 BNC x 1
S-Video Mini Din 4 Pin x 1
Video RCA (Yellow) x 1
USB USB Type A x 1 (Power Out)
USB USB Type B x 1 (Service)
LAN R145 x 1
RS-232C D-sub 9 x 2 (IN / OUT)
3D Sync MINI DIN 3 pin x 2 (IN / OUT)
Remote Control 3.5mm Mini Jack x 2 (IN / OUT)
12V Out 3.5mm Mini Jack x 2 (Max 0.5A)
Fan Noise (Eco / Normal) 39 dB / 43 dB
Dimensions (W x H x D) 21.6 x 7.4 x 21.8" (548x 189 x 553 mm)
Weight 58.4 lb (26.5 kg) without lens
Power Requirements AC 100 - 240 V, 50/60 Hz
Power Consumption (Eco / Normal) 1290 W
Thermal Dissipation 4,606 BTU
Standard Accessories AC Power Cord x 2 (U.S.A. & Euro), VGA cable x 1, Remote Control (with AAA batteries x 2), Quick Start Guide, Safety Guide, Lens Cover x1
Tech Specs
Projectors Attributes
Aspect Ratio 16:10
Brightness 5000 Lumens & Greater
Input 1 X HDMI, S-Video, USB, VGA/D-Sub
Lens Throw Type Standard
Technology DLP, Laser
Resolution WUXGA (1920 x 1200)
Projector Use Business, Educational
