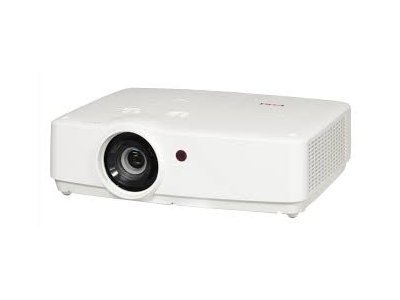

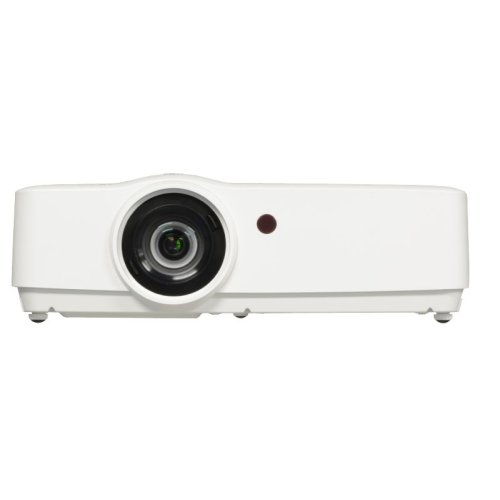

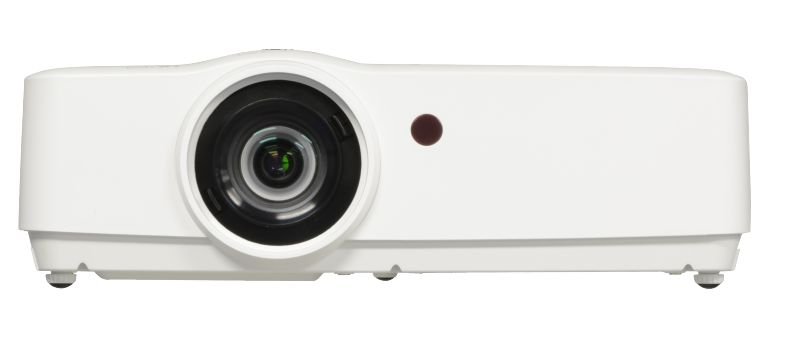

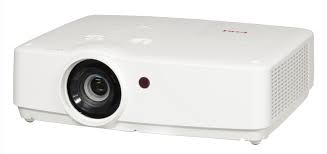

Projektor Eiki EK-303U
Brightness 4,500 ANSI Lumens
Contrast Ratio 8,000:1
Illumination Uniformity 80%
Resolution and Aspect Ratio WUXGA (1920x1200), 16:10
Color Reproduction 10-bit (16.7 million colors)
Projection Lamp 280 Watts UHP
Estimated Lamp Life (Eco / Normal) 4,000 / 3,000 hours
Total Pixels 6,912,000 (1920x1200) x 3
Imaging System 0.64 in (16 mm) inorganic LCD Panels x 3
Scanning Frequency Auto: H Sync. 15-100 kHz, V Sync. 48-85 Hz
Pixel Clock up-to 150 MHz
Lens Attached - Manual Zoom and Focus
Lens Specs f : 1.65-2.65; FL: 0.716-1.156 in (18.2-29.38 mm)
Lens Ratios Zoom Max:Min: 1.6:1; Throw:Width 1.3-2.11:1
Image Diagonal 40-300 in (101.6-762 cm)
Image Width 2.6-20 ft (0.79-6.1 m)
Throw Distance 2.9-35.5 ft (0.88-10.83 m)
Projector Elevation Adjustment (legs) up-to 10°
Maximum Pitch Up-to 30° Up or Down
Vert/Horiz. Keystone Correction Digital:V:+/- 30° (Auto) - H: +/- 15° (Auto), Corner Keystone
Lens Shift Vertical: 45% (Manual) Horiz.: 10% (Manual)
Image Orientation Normal, Reversed, Inverted
Local Control / Power Management Full Function / Auto Shutdown
Remote Control Wireless x 1
RS-232 Control Dsub9 x 1
LAN Port RJ45 x 1
Computer Input in Pixels Up-to 1600x1200 (4:3), 1920x1200 (16:10)
Analog 4x3 Inputs UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Analog Wide Inputs WUXGA, WSXGA+, WXGA
Digital 4x3 Inputs UXGA, SXGA+, SXGA, XGA, SVGA, VGA, MAC
Digital Wide Inputs WUXGA, WSXGA+, WXGA
Video Formats NTSC / PAL / SECAM
Video Input Analog 480i/p, 575i/p
Video Input Digital 480p, 575p, 720p, 1080i/p
Image Signal Resizing Smart Scaling Technology

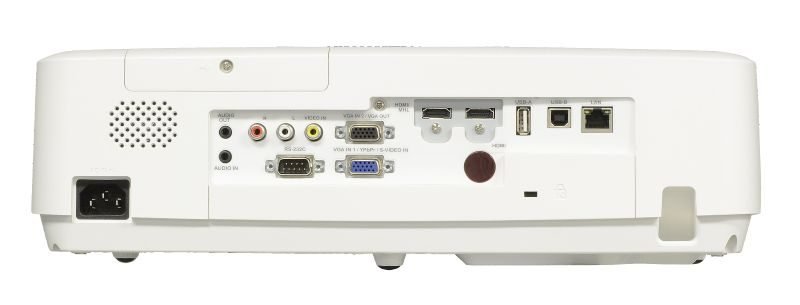

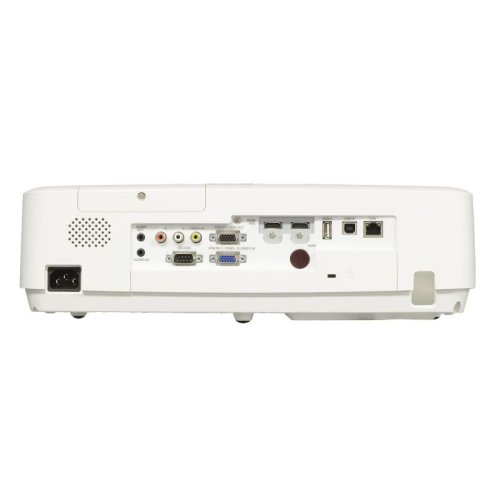

Image Signal Inputs Dsub15 x 1
Computer 1 (Component / S-Video) Dsub15 x 1
Computer 2 (switchable Monitor Out) Dsub15 x 1
Digital Video (w/ HDCP & MHL) HDMI x 2
USB Type A - Memory Viewer USB Type A x 1
USB Type B - USB Display / Firmware USB Type B x 1
Composite Video RCA x 1
Computer Audio MiniStereo x 1
Video Audio RCA x 2 (L/R)
Computer Monitor (Computer 2) Dsub15 x 1
Audio Output Variable, Stereo: MiniStereo x 1
Amplifier Mono: 10 Watt
Speaker 1.4 in (3.7 cm) x 1 (Mono)
Fan Noise (Eco / Normal) 35.5 dB / 40.0 dB
Cabinet Size (HxWxD) - excluding legs 5.0 x 12.5 x 15.5 in (12.7 x 31.7 x 39.4 cm)
Weight 9.9 lb (4.5 kg)
Packaged Cabinet Size (HxWxD) 8.4 x 16.7 x 18.8 in (21.4 x 42.4 x 47.9 cm)
Packaged Weight 13.2 lb (6 kg)
Operating Temperature 41-95°F (5-35°C)
Electrical Safety Compliance IEC / UL / cUL
Electromagnetic Compatibility FCC Class B, CE Mark
Power Requirements 100-240V AC, 50/60 Hz
Power Consumption 0.5 W in Eco Standby mode, up-to 345 W
Heat up-to 1177 BTU/hr
Security Facilities Kensington® Security Slot
UPC 4571194678345
User Maintenance Clean Filter, Replace Lamp
Limited Warranty to the original end use customer only
Projector *3 years / 6000 hours
Lamp *1 year ownership / 500 hours use
