Communications
Ethernet 100 Mbps, auto-switching, auto‑negotiating, auto‑discovery, full/half duplex, TCP/IP, UDP/IP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), IEEE 802.1x, Active Directory authentication, HTTPS web browser setup and XiO Cloud service
AirMedia Via Ethernet: IPv4, mDNS, TLS, AES2;
Via wireless access point: IEEE 802.11/b/g/n/ac, 2.4 GHz or 5 GHz

NOTE: The wireless access point requires the AM‑USB‑WIFI or AM‑USB‑WF‑I AirMedia USB Adapter with Wi‑Fi Connectivity (sold separately).1
USB Host USB 2.0 for optional AV Bridge (ZUMMESH‑AVBRIDGE or ZUMMESH‑AVBRIDGE‑I (sold separately)) for use with wireless keypad control and occupancy sensing9 or the AirMedia USB Adapter with Wi‑Fi Connectivity (AM‑USB‑WIFI or AM‑USB‑WF‑I (sold separately)) for use with Miracast screen mirroring technology
USB Device USB 2.0 for computer console (installer setup and firmware update)
RS-232 2-way display device control up to 115.2k baud with hardware and software handshaking
IR/Serial 1-way display device control via infrared up to 1.1 MHz or serial TTL/RS-232 (0-5V) up to 19.2k baud
DigitalMedia™ DM 8G+, HDCP 1.4 or 2.2 EDID, Ethernet, PoDM sourcing4
HDMI Input HDCP 1.4, EDID; Supports management of HDCP and EDID
HDMI Output HDCP 1.4 or 2.2, EDID, CEC; Supports management of HDCP and EDID
AirMedia2
OS Support Apple® iOS®, Android™, Windows® 7, Windows 8, Windows 10, macOS®, Chrome OS™
Video Frame Rate Up to 30 fps, audio supported

Note: Audio is not supported on Android devices
Output Resolutions 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x800@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60)

Note: All video inputs will be scaled to the selected HDMI output resolution.
Bitrate Peak 0.25 to 8.5 Mbps, variable depending on content complexity
Bitrate Average 1.4 Mbps typical

Notes:
The bitrate for Apple native mirroring may deviate from above depending on the OS version and content
The AirMedia Extension for the Google® Chrome browser relies on web technologies for screen sharing that are built-in to the web browser. Performance variations with motion video (quality and frame rate) may occur based upon the encoding capabilities of the Chrome OS device and the nature of the content being displayed (i.e., high-motion video).
Audio Format Stereo
Video
Input Signal Types AirMedia, DM 8G+, HDMI (DVI & Dual-Mode DisplayPort™ compatible3);
Simultaneous display of two sources with AirMedia Canvas6
Output Signal Types HDMI (DVI compatible3)
Maximum Input Resolutions
Input Type Scan Type Resolution Frame Rate Color Sampling Color Depth
DM 8G+ Progressive
4096x2160 DCI 4K
or
3840x2160 4K UHD 24 Hz 4:4:4 30 bit
30 Hz 4:4:4 24 bit
30 Hz 4:2:2 36 bit
60 Hz 4:2:0 24 bit
2560x1600 WQXGA 60 Hz 4:4:4 36 bit
1920x1080 HD1080p 60 Hz 4:4:4 36 bit
Interlaced 1920x1080 HD1080i 30 Hz 4:4:4 36 bit
HDMI Progressive 1920x1080 HD1080p 60 Hz 4:4:4 36 bit
Note: Common input resolutions are shown; other custom input resolutions are supported at pixel clock rates up to 300 MHz for the DM 8G+ input, or 148 MHz for the HDMI input; interlaced video is not supported via the HDMI input.
Output Resolutions 1920x1080@60Hz (1080p60), 3840x2160@30Hz (4K UHD)

Note: All video inputs will be scaled to the selected HDMI output resolution.
Background & Logo File Support GIF, JPEG, PNG
Audio
Input Signal Types AirMedia, DM 8G+, HDMI (Dual-Mode DisplayPort compatible3)
Output Signal Type HDMI
DM Input Formats Up to 8 channel LPCM
HDMI Input Formats 2 channel LPCM
HDMI Output Formats Up to 8 channel LPCM
Note: Audio input signals are passed to the output without any processing. Volume control capability requires a display device with discrete volume, up, down, and mute commands available via CEC, IP, IR, or RS‑232.

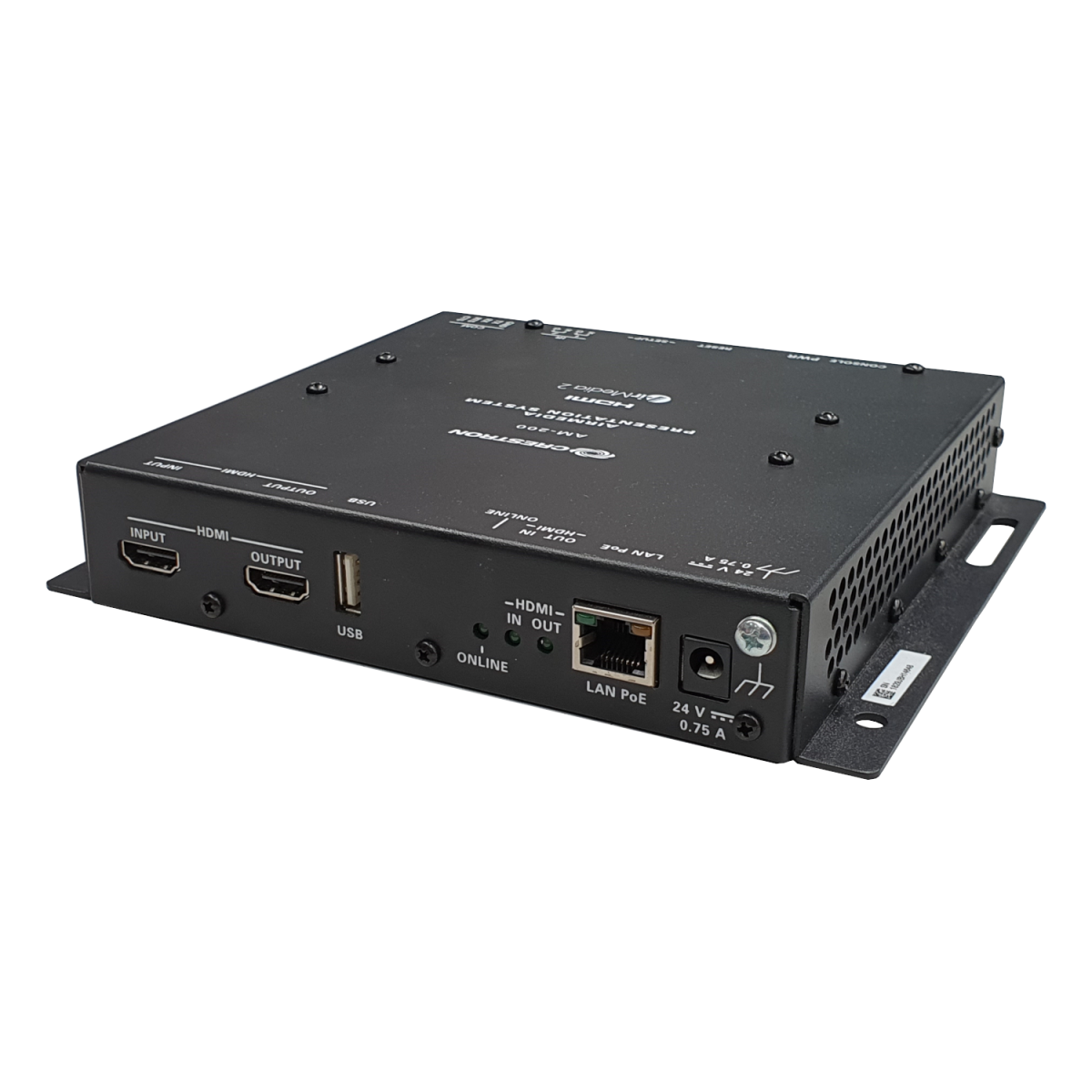

Connectors
Console (1) Micro-USB Type B connector, female;
USB 2.0 device port for computer console (installer setup)
IR (1) 4-pin 3.5 mm detachable terminal block;
IR/Serial output port for display device control;
IR output up to 1.1 MHz;
1-way serial TTL/RS-232 (0-5V) up to 19200 baud

Note: IR port #2 is not used. IRP2 emitter sold separately.
COM (1) 5-pin 3.5 mm detachable terminal block;
Bidirectional RS-232 port for display device control;
Up to 115.2k baud, hardware and software handshaking support
HDMI INPUT (1) HDMI Type A connector, female;
HDMI digital video/audio input;
(DVI & Dual-Mode DisplayPort compatible3)
HDMI OUTPUT (1) HDMI Type A connector, female;
HDMI digital video/audio output;
(DVI compatible3)
USB (1) USB Type A connector, female;
USB 2.0 host port for AV Bridge (ZUMMESH‑AVBRIDGE or ZUMMESH‑AVBRIDGE‑I (sold separately)) or AirMedia USB Adapter with Wi‑Fi Connectivity (AM‑USB‑WIFI or AM‑USB‑WF‑I (sold separately))
LAN (1) 8-pin RJ-45 connector, female;
100Base-TX Ethernet port
DM IN (1) 8-pin RJ-45 connector, female, shielded;
DM 8G+ input and PoDM PSE port4,5
24VDC 2.5A (1) 2.1 x 5.5 mm DC power connector;
24VDC power input;
PW‑2420RU power pack included
Ground (1) 6-32 screw;
Chassis ground lug

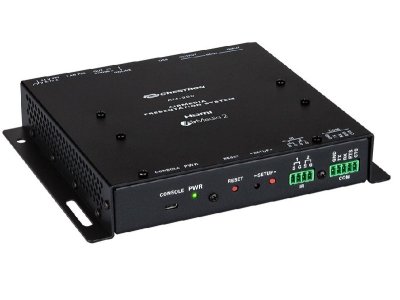

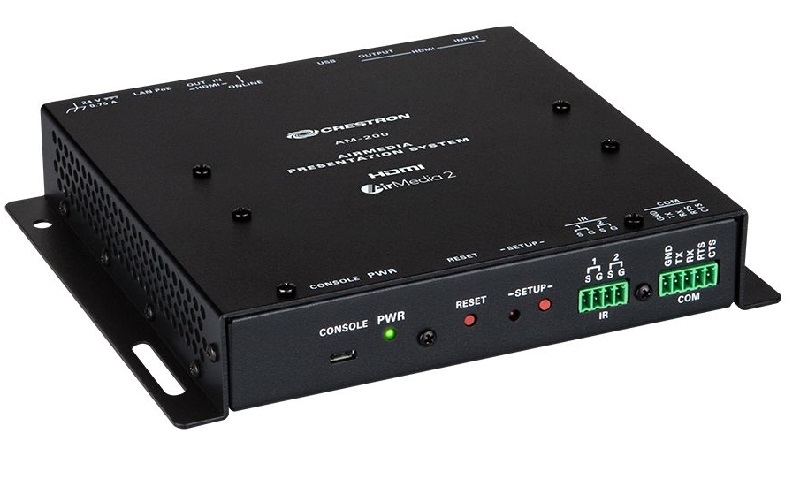

Controls & Indicators
PWR (1) Green LED, indicates operating power supplied via the local power pack or PoE, flashes while booting
RESET (1) Recessed push button for hardware reset
SETUP (1) Red LED and (1) recessed push button, not used
ONLINE (1) Green LED (not used)
HDMI IN & OUT (2) Green LEDs, indicate HDMI signal presence at the HDMI input or output
LAN PoE (2) LEDs, green LED indicates Ethernet link status, amber LED indicates Ethernet activity
DM IN (2) LEDs, green LED indicates DM link status, amber LED indicates video and HDCP signal presence
Power
Power Pack
(included) Input: 100-240VAC, 50/60 Hz;
Output: 2.5A @ 24VDC;
Model: PW-2420RU
Power Consumption 24 W (typical without a PoDM PD connected)
Environmental
Temperature 32° to 104°F (-0° to 40°C)
Humidity 10% to 95% RH (non-condensing)
Heat Dissipation 81.9 BTU/hr
Enclosure
Chassis Metal, black finish, with (2) integral mounting flanges, vented sides
Mounting Freestanding, surface mount, or attach to a single rack rail
Dimensions
Height 7.93 in. (201 mm)
Width 9.28 in. (236 mm)
Depth 1.36 in. (35 mm)
Weight
1 lb 9.6 oz (726 g)
