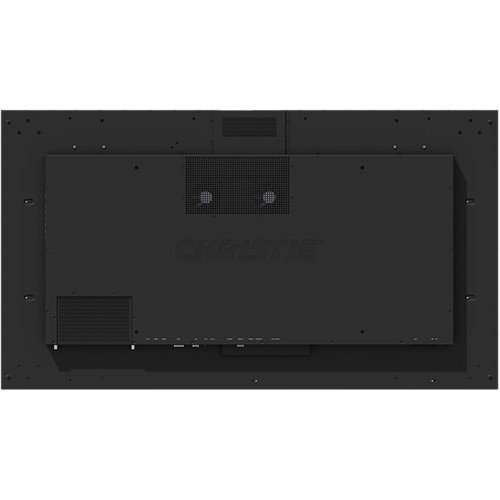

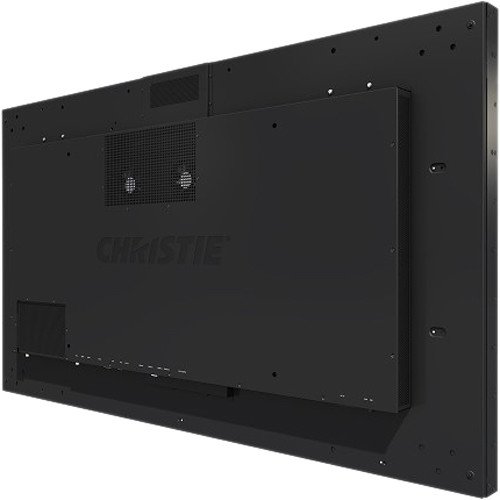

Wyświetlacz Christie FHD553-XE-HR Extreme Series (135-013105-01)
FHD553-XE-HR – Extreme-narrow bezel LCD panel with remote power supply and high brightness

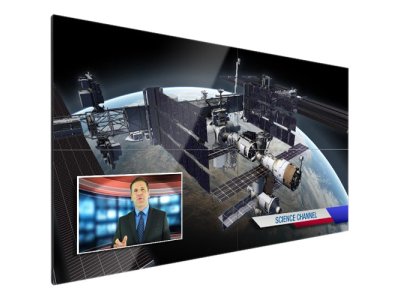

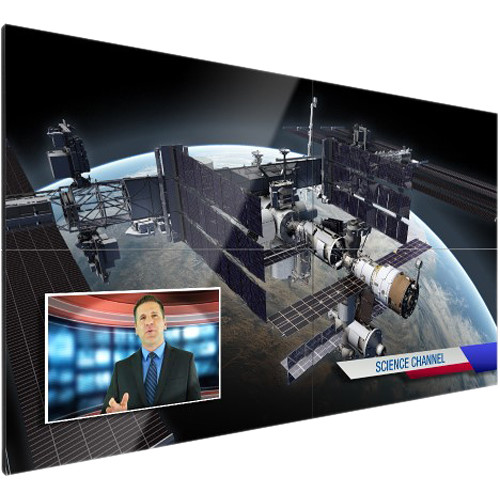

Christie® Extreme Series to wysokiej jakości panele LCD o bardzo wąskiej ramce o szerokości 1,7mm, które służą do tworzenia imponujących, prawie bezszwowych ścian wideo. Dzięki zaawansowanemu dopasowaniu jasność i kolor każdego panelu są skalibrowane, eliminując wiele wymaganych ustawień obrazu podczas instalowania ścian wideo. Funkcja Smart Light Control może automatycznie dostosować jasność każdego panelu do jednolitości całej ściany wideo i zapewnia spójną wydajność przez cały okres użytkowania.
Kluczowe cechy:
System zasilania i chłodzenia
Komercyjny panel LCD z podświetleniem LED
Standardowy rozmiar OPS
Wspiera Christie Phoenix EP
Wbudowane przetwarzanie obsługuje ściany wideo do 10 x 10
Transport wielostrumieniowy obsługuje maks. Cztery panele (UHD przy 60 fps)
Powłoka antyrefleksyjna
Kompensacja szybkiego ruchu (anty-rozrywanie)
SNMP do monitorowania
Pilot zdalny i przycisk
Pixel Orbiting (IRFM)
Kompensacja ramki
Zamek Kensington
Zaawansowane dopasowanie panelu
Screen size (diagonal)
55"/139.7cm
Native resolution
1920 x 1080 (16:9)
Backlight
Direct-lit LED
LED lifespan
50,000 hours to 50% brightness
Display orientation
Portrait and landscape
Pixel pitch
0.63 x 0.63mm
Nominal bezel size
1.7mm combined bezel to bezel
Brightness
700 nits (cd/m2) typical
Contrast ration (full field)
4000:1 typical
Viewing angle (CR 10:1)
178° h/v
Refresh rate
50-60Hz
Response time
8 ms typical
Color space (CIE 1931)
72% typical
Display colors
8 bit, 16.7 million
Signal inputs
2 x HDMI (Ver 1.4, HDCP)
DisplayPort (Ver 1.2, HDCP)
DVI-D (HDCP)
VGA
IR window
IR wire extender
Signal outputs
DisplayPort (daisy chains DisplayPort, HDMI, and DVI inputs up to 16 panels from one source)
Control inputs
RS-232 via D-Sub9
RJ-45 LAN
Keypad
Control outputs
RJ-45 for control looping
Power input rating
48 VDC from remote power supply unit
Power consumption
165 W(Typ.)
225 W(Max.) without OPS1
Operating temperature
41-95°F (5-35°C)
Operating humidity
20-90% RH non-condensing
Physical size (without handles)
(WxHxD) 47.7 x 26.9 x 3.6" (1211.5 x 682.3 x 92.0mm)
Physical weight (without handles)
62.8lbs (28.5kg)
Mounting
Works with Christie ML20 mount for a depth of ≤ 4" (100mm)
VESA (WxH) 400 x 400mm, M8 (15mm internal depth)
Runtime
Designed for 24/7 operation featuring a reliable power supply and cooling system2
Features
Commercial-grade LCD with LED backlight
Standard size OPS
Christie Phoenix EP supported
Built-in processing supports video walls up to 10x10
Multi-stream transport supported across up to four panels (UHD at 60 fps)
Anti-glare coating
Smart Light Control sensor automatically matches video wall display brightness
Fast motion compensation (Anti-tearing)
SNMP for monitoring
Remote and button lock
Pixel Orbiting (IRFM)
Bezel compensation
Kensington lock
Included accessories
Panel ships with DisplayPort cable
IR remote control
External IR receiver
Power cable (AC or DC daisy chain)
Control daisy chain cable
Alignment brackets
User Manual
Optional accessories
ML20 6-axis landscape mount for mounting depth of ≤ 4"(100mm)
Accessories for remote power
Remote Power Supply Unit Shelf allowing for redundancy
Power Supply Unit Module (Rectifier) and 240 V line cord
First cable options ranging from 6M (~20") to 75M (246"), and field termination options are available
Warranty
Three year parts and labor limited warranty
Contact an authorized Christie representative for full details of our limited warranty
