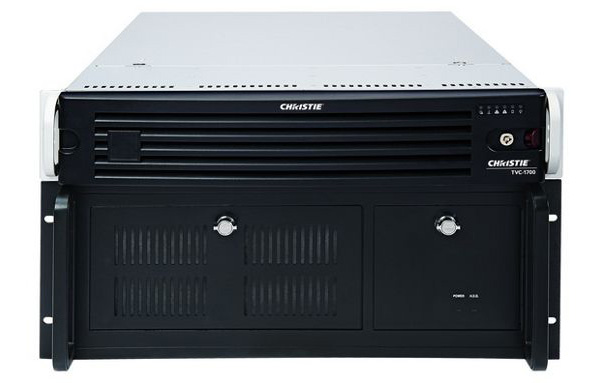

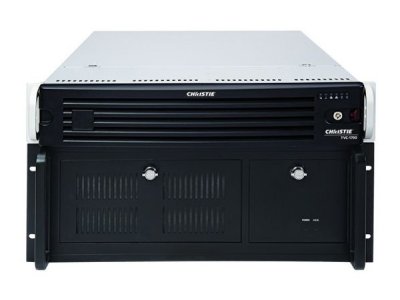

Base hardware system

Chassis
2U form factor
CPU
2.4 GHz Quad-Core Xeon CPU
Operating system
Microsoft 7 Ultimate (x64bit)
Memory
8GB DDR3 SDRAM, optional 32GB DDR3 SDRAM
Hard disk
1 x 1TB 3G SATA 7200RPM, optional 3x 1TB 3 G SATA 7200RPM hot-swappable, redundant, hard drive space (RAID 1 with hot spare)
Storage
DVD SATA Optical Drive
Networking
2 x Gigabit ethernet, option for up to 6 Gigabit ethernet interfaces
Interface
Keyboard, mouse
Control
4 x USB 2.0 ports, 1 x RS-232 serial port video-wall control

Software

Video-wall control
Full featured Christie MASTERSuite™

Remote desktop inputs

Input
RJ-45
Maximum # of remote desktops displayable
100 (simultaneous), nearly unlimited (defined)
Input resolution capability
From XGA (1024 x 768) to WQXGA (2560 x 1600) – depends on supported resolution on client PC wall placement
Wall placement
Anywhere on the video wall

Composite video inputs

Type/formats
NTSC M, NTSC J, NTSC N, NTSC 4.43 50/60, PAL I, PAL B, PAL D, PAL G, PAL H, PAL M, PAL N, PAL NC, PAL4.43 60, SECAM B, SECAM D, SECAM G, SECAM K, SECAM L, SECAM LD
Frame (refresh) rate
30fps (NTSC)
25fps (PAL)
Maximum video inputs/system*
128 (simultaneous)
Advanced processing
3D comb filtering with advanced processing
Wall placement
Anywhere on the video wall

RBG / DVI input expansion

Maximum number of input sources per system*
48
Analog input connection type
DVI-I (comes with VGA adapter)
Digital (DVI) input connection type
DVI-I
Maximum analog resolution/source
2048 x 1536
Maximum digital resolution/source
2560 x 1600 (with optional DL-DVI input board)
Supported for non-interlaced sources
Yes
Form factor
64 bit

Display outputs

Maximum number of display channels*
64
Maximum resolution/channel (analog with optional digital to analog converter)
2048 x 1536 @ 60Hz
Maximum resolution/channel (digital DisplayPort or DVI with included adapters)
2560 x 1600 @ 60Hz
Graphics memory
512MB per card

Switch fabric expansion

Form factor
4U
Number of expansion slots
9
Effective overall bandwidth
20GB/second
Cooling
Three chassis cooling fans
Four chassis extraction fans

Dimensions

Main chasis (2u)
(LxWxH): 25.5 x 17.2 x 3.5" (648 x 437 x 89mm)
Switch fabric expansion chassis (4RU)
(LxWxH): 19.68 x 17.28 x 6.97" (500 x 439 x 177mm) not including faceplate or handles

Environment

Operating temperature
40-95°F (5-35°C)
Non-operating temperature
-40-140°F (-40-60°C)
Humidity
8-85% non-condensing
8-90% non-condensing (non-operating)
Altitude
0-3000m (0-10,000ft)
0-9100m (0-30,000ft) non-operating

Power rating (base system capability)

Voltage
100-240V AC ±10% @ 50/60Hz
Current
Rating: 11A @ 110-127V, 3A @ 200-240V

Power consumption

Consumption
based on configuration (ask for details)

Reliability and serviceability

MTBF
>50,000 hours of major modules
MTTR

Regulatory safety

Safety
CAN/CSA C22.2 No. 60950-1
UL 60950-1
IEC 60950-1 emissions
FCC CFR47, Part 15, Subpart B, Class A – unintentional radiators
CISPR 22/EN55022 Class A – information technology equipment immunity
CISPR 24/EN55024 EMC requirements – information technology equipment environmental
Directives: (EC) 2002/95/EC (RoHS); 2002/96/EC (WEEE); Regulation (EC) No. 1907/2006 (REACH)
Certification marks (check with Christie for latest update): cULus (Canada & US), CE (EU), CCC (China), GoST-R (Russia), KC (Korea), PSE (Japan), C-Tick (Australia & New Zealand)

Manufacturing location

Location
Designed, manufactured and tested by Christie Digital Systems Canada Inc.'s facility in Kitchener, Ontario. Christie Digital Systems Canada Inc.'s management system is registered to ISO9001 and ISO14011

Warranty

Timing
Limited two years parts and labour
