Up to 6,300 ANSI lumens
2,500-10,000:1 FOFO
650:1 ANSI
Electronically adjustable iris (manual or dynamic)
Display technology and resolution
3-chip 0.96" DMD
Native WUXGA 1920 x 1200
Frame delay: as little as one frame
Input signal compatibility
Native dual-link DVI-D
Analog BNC (optional)
Frame-doubled 3D - dual-link DVI, VGA (HDMI, analog BNC & SDI optional)
Inputs, control & networking
RS232 in/out
RS422 in
Ethernet (10/100)
USB device
GPIO (RS232 9-pin male connector)

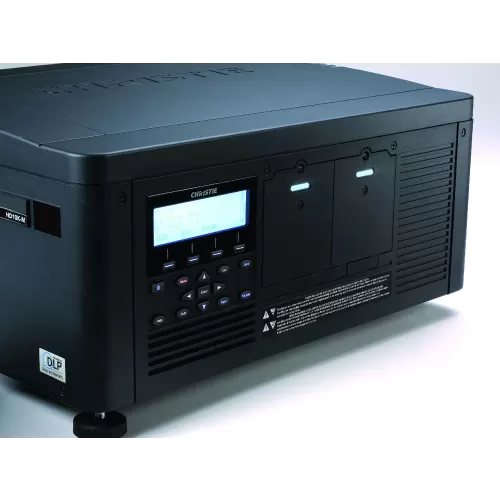

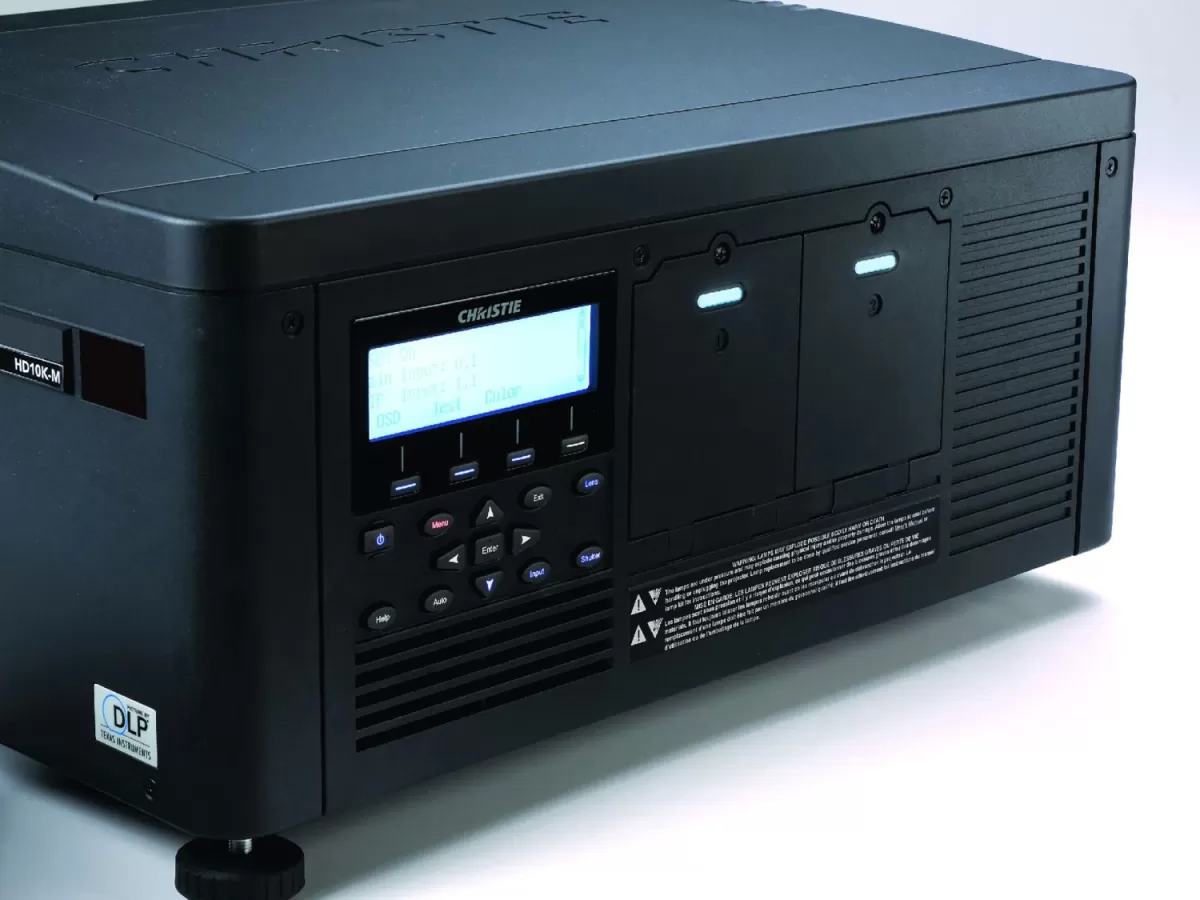

Built-in backlit LCD keypad
Remote control (with optional wired XLR connection)
Slot 1-2 standard (populated): dual-link DVI-D (330MHz) and VGA (165MHz)
Slots 3-4 are available for option cards
Optional input modules
Full bandwidth analog BNC
Dual-link DVI input card (330MHz), - VGA (165MHz)
Dual SD/HD-SDI
Video decoder
Twin HDMI
Advanced feature set
Embedded Christie Twist™ - internal advanced warping and edge-blending
LiteLOC™
Electronically adjusted iris (manual or dynamic)
Dust-sealed, filter-free design
Reduced power requirements (as compared to competitive products on the market today) – at maximum brightness the unit only draws 870W; standby power consumption (phantom power draw) is less than 20W
Reduced noise levels
LCD keypad – active keys are amber to indicate whether function selected will be seen by the audience
Motorised yellow notch filter
Built-in portrait display capabilities*
*Christie M Series stacking frame is required in portrait orientation.

Lens mount
Motorised horizontal and vertical lens offset
Scheimpflug (tilt) adjustment
Built-in light shutter
Tool-free lens insertion system
All lenses are optional
Lamp
Dual Osram PvIP 200W lamps
Lamp life: 2000 hours @ 200W , 3000 hours @ 150W
Light output control (LITELOC™)
Provides constant brightness tracking and monitors lamp output. It also automatically adjusts the power to ensure constant, uniform brightness across the image – on a multiple-projector screen or multiple-screen display.
Power requirements
100V AC to 240V AC @ 50/60 Hz
Power consumption: 870W maximum
Thermal dissipation: 2971BTU/hr
Operating current: 9A @ 100V
Dimensions (excluding lens)
Weight: 55lb (25kg) without lens
Shipping weight: 87 lb (38 kg)
Size: 19.7" W x 22.1" L x 10.2" H (500mm W x 561mm L x 259mm H)
Standard accessories
User manual
IR remote
Line cord
Two dual-link DVI-D cards
3D sync cable
Optional accessories
Coarse dust filter
ILS lens adapter kit
Stacking frame
Dual HD/SDI input card
Twin HDMI input card
Dual-link DVI input card
Video decoder input card*
*may not include 3D support

Operating environment
Operating temperature: 40-104°F (5-40°C)
Humidity (non-condensing): 20-80% non-condensing
Regulatory approvals
UL/CSA/IEC 60950 (3rd edition)
FCC Class A, CE, CCC
This product conforms to all relevant European directives, standards, safety, health and environmental concerns
RoHS, WEEE
Warranty
3 years parts and labour (including light engine)
