Crossover : Linear phase, asymmetric, 2-way, passive @ 1.6kHz, 24dB/octave
Depth : 264.16 mm Depth : 10.40 in
Enclosure :
Closed box alignment
Heavily damped and braced
Height : 828.04 mm
Impedance : 8 ohm
Input Connectors : 2 position barrier strip
Sensitivity : 93.50 dB
Width : 238.76 mm
Accessories (optional) :
Christie S115 subwoofer
BKT-LA1 tilt bracket (for mounting on Christie S115)
BKL-LA1 "L" bracket (for flying under Christie S115)
Allen Products Omnimount 120.0ST-MP MM-120 (for wall mount)
Recommended Amplifier Power : 450 to 850W (FTC) @ 8 ohms
Mounting Options :
On subwoofer using BKT-LA1 tilt bracket
Flown under subwoofer using BKL-LA1 "L" bracket
Wall mounted using 4 x M8 points
Includes a total of 7 x M10 fly points for total versatility
Power Handling : 1000W (IEC) short term (12dB crest factor)
Power Handling : 500 Watt

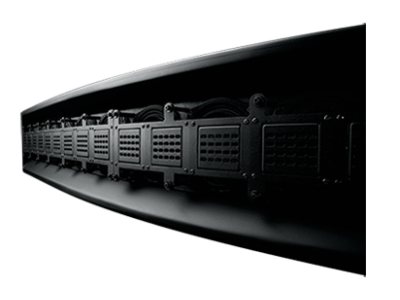

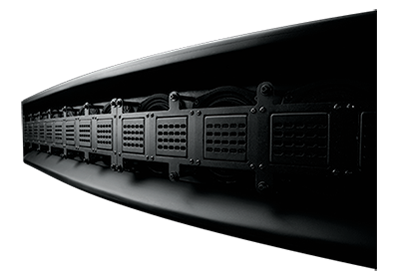

System Type : Coaxial articulated ribbon driver line array, 2-way, passive, in a single sealed enclosure
Maximum SPL (Sound Pressure Level) : 135 dB
Maximum SPL Continuous : 123dB
Driver Components :
9 x 3.5" ribbon drivers with Neodymium magnets
6 x 5.25" paper/Kevlar composite cone drivers
Coverage Horizontal : 120 degrees
Coverage Vertical : 30 degrees
Warranty (Length/Type) : 5 Years Limited
Construction : 18mm marine plywood
Speaker Diameter (Driver) : 88.90 mm
Net Weight : 17.01 kg
