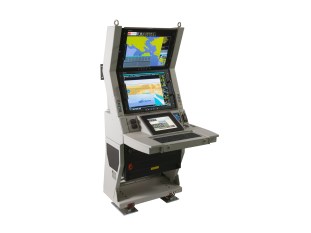

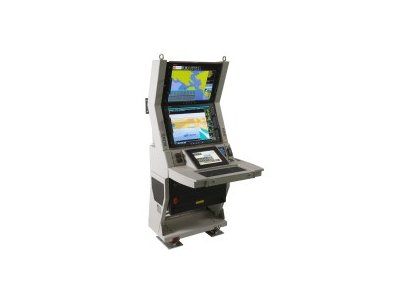

Vista 4500 Networked multi-function console

Name: Vista 4500 Networked multi-function console
Brand: Barco
Availability: OutOfStock

OTRZYMAJ RABAT DODATKOWY NAWET 40%_{* W każdej chwili możesz się wypisać}

Cena na telefon

Produkt niedostępny

Power	115-220 VAC, 50-60 Hz
Display	From 19’’ to 30’’ LCDs. Different display layouts possible, including Dual Head Top/Down or Side by Side, Single head
Desk	Foldable. Large range of input devices supported (Keyboard, track ball, joystick, throttle)
Human factors	MIL-STD-1472
Touch input display	10” LCD panel with touch screen, Optional embedded computer
Control terminal	2.2” LCD panel for health status, control buttons
Extensions	Function keys, external USB port, audio, ...
Dimensions HMI unit	Dual Head Top/Down: 650 x 1540 x 950 mm max, Weight < 190 kg Dual Head Side by Side: 1200 x 1300 x 950 mm max, Weight < 220 kg Single Head: 650 x 1300 x 950 mm max, Weight < 170 kg
CPU	Intel CoreTM i7-3770 3.4GHz
Graphics accelerator	PCIe high-performance graphics board
Media	SATA HDD 1TB system disk
Operating temperature	0° C to 50° C
Storage temperature	-35° C to 70° C
Humidity	95% at 40°C non-condensing
Vibration	MIL-STD-167-1
Shock	MIL-STD-810E
EMI / EMC	MIL-STD-461D/E
Degree of enclosure	MIL-STD-810E, 45°
Acoustic Noise	MIL-STD-740-1 (SH) Grade C, 54 dB(A)
Electrical standard	MIL-STD-1399 Section 300A, STANAG 1008 ed9
