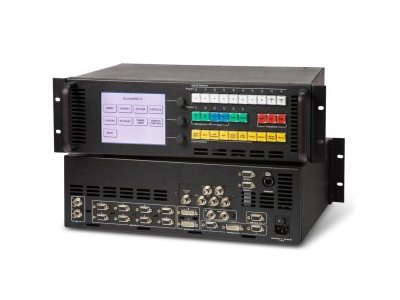

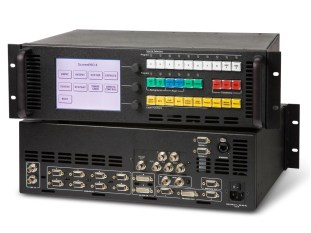

ScreenPRO-II series Multi-layer video display system

OTRZYMAJ RABAT DODATKOWY NAWET 40%* W każdej chwili możesz się wypisać
Zapisując się do Newslettera, otrzymasz RABAT do 40%* Możesz wypisać się w każdej chwili
Pola wymagane
Cena na telefon

Zapytanie o produkt ScreenPRO-II series Multi-layer video display system

TokenZmień
Pola wymagane
Produkt niedostępny

Negocjuj cenę

TokenZmień
Pola wymagane
downloadPobierz kartę produktu
Video inputs
Input 1: DVI-I
  • Digital formats; all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 Specification and all dual-link DVI formats up to 300 Mhz; Max H Active: 4096 Max V Active: 3072
  • Analog formats: NTSC/PAL composite and Y/C video, SD YPbPR with bi-level sync, HD YPbPr with tri-level sync, RGBHV/RGBS/RGsB computer video with bi-level sync
  • Analog sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to 1920x1200p, 2048x1080p
  • Active loop-through output of all input signals, including HDCP and EDID
  • EDID version 1.3 compatible HDCP version 1.4 compatible

Note: Dual Link resolutions not available on ImagePRO-II Jr
Input 2: HD-15 VGA
  • Format: NTSC/PAL composite and Y/C video SD YPbPr with bi-level sync HD YPbPr with tri-level sync per SMPTE 274, RGBHV/RGBS/RGsB computer video with bi-level sync
  • Sampling: sources with pixel rates up to 170 Mhz are sampled 1:1; sources with pixel rates above 170 Mhz are filtered and sampled at 170 Mhz, including but not limited to: 1920x1200p, 2048x1080p
  • Active loop-through output of all input signals
  • EDID version 1.3 compatible
Input 3: HDMI (type A) (not available on ImagePRO-II Jr)
  • Formats: RGB and YCbCr; Resolutions up to 2048x1080p @ 60 Hz per HDMI 1.4 specification and 1,920 x 1,200p @ 60 Hz
  • EDID version 1.3 compatible
  • HDCP version 1.4 compatible
  • Deep color (30/36 bits)
Input 4: DisplayPort (not available on ImagePRO-II Jr)
  • Formats: resolutions up to 2560x1600 @ 60Hz (30 bits) per DisplayPort 1.1a specification
  • HDCP version 1.4 compatible
Input 5 & 6 (dual output option): SD/HD/3G SDI on BNC
  • Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
  • Re-clocked loop-through output
  • Dual link HDSDI per SMPTE 372 (dual output option)
Video outputs
SD/HD/3G and BarcoLink SDI
  • Formats: SD-SDI per SMPTE 259M-C (NTSC/PAL resolution); HD-SDI per SMPTE 292M, 296M; 3G-SDI per SMPTE 424
  • Dual link HDSDI per SMPTE 372 (dual output option)
NTSC/PAL composite video CVBS on BNC connector
Note: dedicated composite output not available on ImagePRO-II Jr
DVI-D
  • Formats all single-link DVI digital formats up to 165 Mhz, per DVI 1.0 specification
  • All dual-link DVI formats up to 330 Mhz
  • EDID version 1.3 compatible
  • HDCP version 1.4 compatible
HD-15 VGA
  • Formats: NTSC/PAL composite on green, NTSC/PAL Y/C video with bi-level sync on Y only, (Y: Green, C: Red); SD YPbPr with bi-level sync; HD YPbPR with tri-level sync per SMPTE 274; RGBHV/RGBS/RGsB computer video with bi-level sync
  • EDID version 1.3 compatible
HDMI (type A) (not available on ImagePRO-II Jr)
  • Formats: RGB and YCbCr at 4:4:4, YCbCr at 4:2:2, per HDMI 1.4 specification; Resolutions up to 2,048 x 1,080p @ 60Hz and 1,920 x 1,200 @ 60Hz
  • EDID version 1.3 compatible
  • HDCP version 1.4 compatible
Output 3: DisplayPort (not available on ImagePRO-II Jr)
  • Formats: resolutions up to 2560x1600 @ 60Hz (30 bits) per DisplayPort 1.1a
  • HDCP version 1.4 compatible
Other
Genlock Analog Ref Input/Loop/Output on BNC connectors; Bi-level and Blackburst at SD and Tri-level at HD or locked to any input
Remote Control
  • USB 1.1
  • Ethernet RJ-45, 10/100 Mbps Autosense
  • Computer, tablet, smartphone, or external Encore or ScreenPRO-II Controller via Ethernet link.
  • Control functions include: source input configuration, output format selection, test pattern selection, transition effect selection and control
Dimensions
  • Height: 1.75 in (4.4 cm) - 1 RU Rackmount
  • Width: 17 in (43.2 cm)- without chassis handles, 19.06 in (48.4cm) with chassis handles attached
  • Depth: 17.09 in (43.4 cm) from front panel to rear panel, 18.51 in (47 cm) overall
Weight 15.75 lbs (7.144 kg)
Input power Power 100-240 VAC, 47-63 Hz, auto-selecting 2.0A maximum
Environmental temperature 0-40° Celsius
Environmental humidity 0-95% noncondensing
Warranty Full three-year parts and labor warranty.
