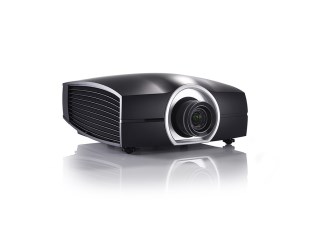

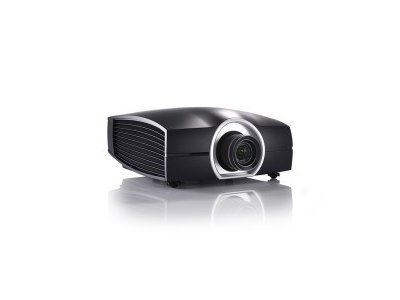

Projector type WUXGA single-chip DLP projector
Technology 0.67" DMD
Resolution 1,920 x 1,200 WUXGA
Brightness 6,000 ANSI lumens*
Contrast ratio 11,000:1*
Brightness uniformity 90%*
Aspect ratio 16:10
Lens type G lens
Lenses 1.22-1.53:1; 0.95-1.22:1; 1.52-2.92:1; 2.90~5.50
Optical lens shift Vertical: -100% to +100% / horizontal: -30% to +30%
Color correction Yes
Light source Laser diode
Light source lifetime 20,000 hours (bright mode)
Sealed DLP™ core yes
Advance Picture in Picture yes
Orientation Ceiling/floor, front/rear, 360 degree free installation, portrait
Integrated web server Yes
3D N/A
Keystone correction app. +/-20° vertical
Inputs VGA-in, VGA-out, HDMI, DVI, CVBS, LAN, RS232, 12V out, 5V out;
Input resolutions up to WUXGA (1,920 x 1,200) 60Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection 10/100 base-T, RJ-45 connection
Power requirements 100-240V / 50-60Hz
Max. power consumption 580 W
Noise level (typical at 25°C/77°F) 35 dBA (bright mode)/ 32 dBA (eco mode)
Operational ambient temperature 5-40°C / 41°-104°F (sea level)
Operational humidity 10-85%
Dimensions (WxLxH) 506 x 516 x 251 mm (without cable cover)
Weight 17.5 kg
Shipping dimensions (WxLxH) 796 x 595 x 378mm
Standard accessories Power cord, wireless remote control, lens cover
Certifications CB test certificate, US emc, US safety, CE emc and safety, CCC emc and safety
Warranty Limited 3 years parts and labor. Extendable up to 5 years.
* Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
