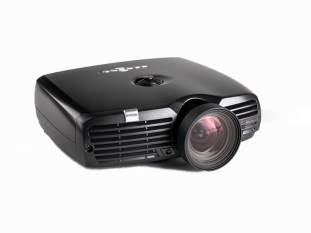

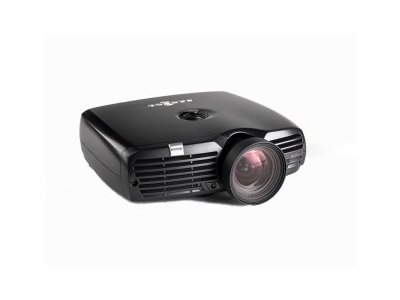

Product specifications F22 SERIES
General specifications
Concept optical lens shift design
Resolution SXGA+ (1,400 x 1,050) / 1080p (1,920 x 1,080) / WUXGA (1,920 x 1,200)
Brightness Up to 3,300 lumens
Technology single-chip DLP® projector
Contrast Up to 2,500 : 1 (Nominal full field on/off)
Aspect ratio 16:9 (720p) / 4:3 (SXGA+) / 16:9 (1080p) / 16:10 (WUXGA)
Display colors Less than 1 Billion colours, 30-bit RGB
Latency ~22ms frame on graphics port
Computer graphics formats 1,920 x 1,200 -640 x 480 pixel resolution (model dependent) / RGBHV, RGBS, RGsB
Horizontal scan frequencies 15 -150 kHz (resolution dependant)
Vertical scan frequencies 48 -190 Hz (resolution dependant)
Video formats EDTV (576p, 480p) / SDTV (576i, 480i) / HDTV (1080p, 1080i, 720p) /NTSC, PAL, SECAM
Lens operation Focus, shift and manual zoom
Lenses -Wide Angle EN17 lens -throw ratios: 1.09 : 1 (720p) / 1.00 : 1 (SXGA+) / 0.92 : 1 (1080p) / 0.92 : 1
(WUXGA)
-Ultra Wide Angle EN19 lens -throw ratios: 0.88 : 1 (720p) / 0.80 : 1 (SXGA+) / 0.74 : 1 (1080p) / 0.74 : 1
(WUXGA)
-Standard projection lens EN35 -throw ratios: 1.89 -2.62 : 1 (720p) / 1.73 -2.39 : 1 (SXGA+) / 1.60 -2.21 :
1 (1080p) / 1.60 -2.21 : 1 (WUXGA)
F22 lenses are not interchangeable
Image width 0.7 -2.5 m
Light source 220W UHP lamp
Lamp lifetime Up to 2,250 hours (full power) / up to 3,000 hours (Eco mode)
Computer inputs 1 x HDMI 1.3a, 1 x DVI-I, 1 x VGA
Video Input 1 x HDMI 1.3a, 1 x DVI-I, 1 x S-video, 1 x Composite, 1 x YPbPr
Control possibilities 1 x RJ-45 TCP/IP, 1 x 9-pin D-SUB RS232, 1 x USB
Dimensions 278 x 94 x 234 mm (WxHxD)
Weight 2.9 kg
Shipping Dimensions 440 x 440 x 310 mm (WxHxD)
Shipping Weight from Factory 7.4 kg
Power requirements 3.0-1.3A, ~100-240V, 50-60Hz
Conformances CE, FCC Class A and cNus
Operating temperature 10 -40 °C
Storage temperature -20 -60 °C
Operating humidity 20 -80% RH
Storage humidity 10 -90% RH
Color Black metallic
Warranty 3 years standard warranty, 500 hours or 90 days on lamp (whichever comes first). Optional 2 years,
24/7 operation warranty. Conditions apply.
MTBF 27,838 hours
BTU per hour Less than 1,061
