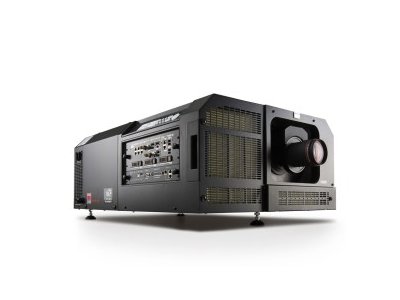

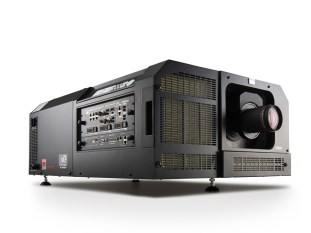

Product specifications DP2K-8S
General specifications
Housing Hermetically sealed DMDs and optical assembly
Lamp 1.6kW, short-arc Xenon
Light output 6,000 lumens (1.6kW lamp)
Screen size Up to 8m/26 ft wide (screen gain 1.0 @ 14ftl)
Contrast ratio 1,850:1
Digital MicroMirror Device™ 3 x 0.69" DC2K dark metal devices
Native resolution 2,048 x 1,080 pixels
Prime lenses Fully motorized
1.2 -1.7
1.34 -1.9
1.5 -2.15
1.7 -2.55
2.0 -3.9
Control I/O 3x Ethernet (RJ 45)
8x GPIO (DB 25)
3D interface
USB interface
Integrated Cinema Media Processor DCI 4K 2D up to 60fps
DCI 4K 3D (24 or 30 fps per eye)
DCI High Frame Rates 2K 3D up to 120fps (60fps per eye)
JPEG 2000 bit-rates up to 625Mbps
Dual-channel color-correction
MPEG-2 (4:2:0 and 4:2:2 up to 60fps)
2x HDMI2.0a (up to 4K 2D 60fps)
2x 3G-SDI inputs
16x AES/EBU audio channels (2x RJ45)
8x GPI, 8x GPO (4x RJ45)
2x Gbe for content connectivity & ingest
2x front-accessible USB 3.0 for fast ingest
2x front-accessible USB 2.0
Video watermarking: Civolution NexGuard
Audio watermarking: Civolution
Closed captioning devices: Support for SMPTE 430-10
Integrated storage 1.9TB effective storage (RAID-5) / 3x 1TB Hot-swappable 2.5" hard-drives
3.9TB effective storage (RAID-5) / 3x 2TB Hot-swappable 2.5" hard-drives
02
Product specifications DP2K-8S
Barco Web Commander Projector Dashboard
Projector Control Board
Show Player/Editor/Scheduler
Automation, 3D, Ingest
Dynamic DCP playlists & intermission
TMS integration
Smart Projector Status
Via HTML5 web-browsers including iOS & Android tablets
Dual projector 3D: passive and active
Auro 11.1 decoding
Barco Communicator Projector installation & configuration
Projector update & maintenance
Power requirements 220 V
Projector dimensions (HxWxD) 325 x 625 x 910 mm
12.8 x 24.6 x 35.8 inch
Projector weight Recessed handles for easy carrying
56.5 kg / 125 lbs for carrying (lamp-house removed)
(66.5 kg / 147 lbs total weight)
Ambient temperature 35°C / 95°F Max.
Exhaust airflow 140 – 180 CFM (4 – 5 m³/min)
Safety requirements Class 1 risk group 3
Options 3D add-ons
Touch screen monitor, inc. Barco Commander & Communicator
Pedestal
CineCare Web
Auro 11.1 license
Barco Escape license
Live 3D***
*** Software roadmap
