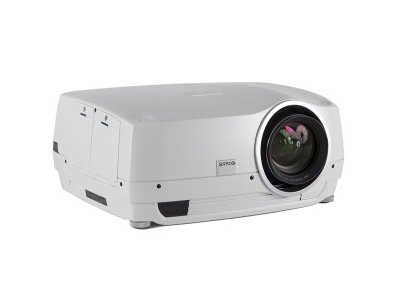

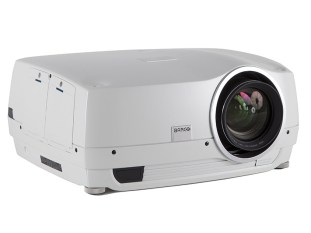

Projector type single-chip DLP projector
Technology LVDC DMD™ with DarkChip3™
Resolution 2,560 x 1,600 (WQXGA)
Brightness 7,000 ANSI lumens
Contrast ratio 6,500:1
Brightness uniformity >90%
Aspect Ratio 16:10
Lens type All glass lenses
Lenses wide angle lens EN42 (0.8:1), ultra wide zoom lens EN46 (0.8-1.21:1), wide angle lens EN43 (1.2-1.7:1), standard zoom EN41 (1.7-2.5:1), long throw zoom EN44 (2.50-4.60 :1), ultra wide fixed EN47 (0.65 : 1)
Optical lens shift Vertical: -144% to +144%; Horizontal: -70% to +70% (on zoom lenses)
Color correction RealColor™
Lamps 2 x 300W UHP Vidi
Lamp lifetime Up to 2,000 hours (full power) / Up to 2,500 hours (eco mode)
Lamp house, quick replace yes
Lamp warranty 500 hours or 90 days
Sealed DLP™ core Yes
Orientation table - ceiling
Inputs 2 x DVI-I; 2 x HDMI 1.3a; 2 x VGA; Video inputs; 1 x component; 1 x S-video
Input Resolutions Up to 2,560 x 1,600 pixels input on all models. Output resolution depends on native resolution; HDTV (1080p, 1080i, 720p); EDTV (576p, 480p); SDTV (576i, 480i); NTSC, PAL, SECAM; progressive scan
Software tools Projector Toolset, ProNet
Control 1 x RJ-45 TCP/IP; 1 x 9-pin D-SUB RS232; 2 x 12V programmable trigger (3.5mm mini jack); 1 x Wired Remote 3.5mm mini jack; 2 x USB
Network connection 10/100 base-T, RJ-45 connection
Power requirements 100-240V / 50-60Hz
Power consumption 912W
Noise Level 34 dB
Operational ambient temperature 10-40°C / 50°-104°F
Operational humidity 20-80% RH
Dissipation BTU max 3,109 BTU/h
Dimensions (WxLxH) 510 x 376 x 233 mm / 20.08 x 14.80 x 9.17 inches
Weight 12.7 kg (28.0 lbs)
Standard accessories Power cord, wireless remote control
Certifications Compliant with FCC, part 15 Class A and CCC, cCSAus, cUL, UL and CE
Warranty Limited 3 years parts and labor. Extendable up to 5.
