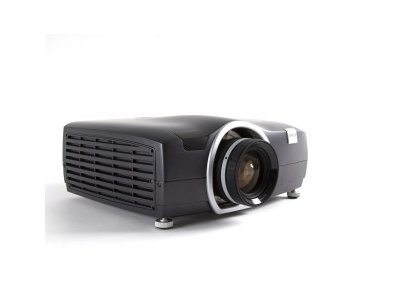

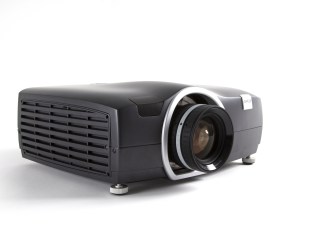

Projekotr Barco F50
Unmatched image quality
With its cutting-edge optics that deliver razor-sharp images, the F50 displays flawless images with vivid colors, and rich in contrast. Producing low noise levels, it also features RealColor™ color management, Smear Reduction Processing™ and high frame rates. The F50 boasts four different digital input sources and a wide range of expansion modules and high-quality projection lenses.
Key benefits
- Choose from WQXGA, Panorama, WUXGA or Full HD resolution
- Small, compact and ruggedized
- Ultimate reliability and low TCO
- Low operational noise level
- Active 3D stereo
- Smear Reduction Processing™/ 120Hz Refresh Rates / High Frame Rates
Projector type Single chip DLP digital projector
Technology LVDS DMD™ with DarkChip3™
Resolution 2,560 x 1,600 (WQXGA) / 2,560 x 1,080 (Panorama)/ 1,920 x 1,200 (WUXGA)/ 1,920 x 1,080 (Full HD)
Brightness 5,000 ANSI lumens (High Brightness WQXGA)/2,500 ANSI lumens (VizSim Bright WQXGA)/1,800 ANSI lumens (VizSim WQXGA)
3,800 ANSI lumens (High Brightness Panorama)/1,900 ANSI lumens (VizSim Bright Panorama)/1,500 ANSI lumens (VizSim Panorama)
5,500 ANSI lumens (High Brightness WUXGA)/2,700 ANSI lumens (VizSim Bright WUXGA)/2,000 ANSI lumens (VizSim WUXGA)
5,500 ANSI lumens (High Brightness Full HD)/2,700 ANSI lumens (VizSim Bright Full HD)/2,000 ANSI lumens (VizSim Full HD)
Contrast ratio up to 5,300:1
Brightness uniformity >80%
Aspect Ratio 16:10
Lens type All pure glass lenses
Lenses
Ultra Wide Fixed EN53 (0.79@1.65m), Wide Fixed EN52 (0.99), Super Wide Zoom EN55 (0.86 - 1.16), Wide Zoom EN56 (1.14 - 1.74), Zoom EN51 (1.71-2.37), Ultra short throw EN57 (0.28 - 0.3)
Optical lens shift Vertical: +121%; Horizontal: +/-82% (lens dependant)
Color correction RealColor™
Lamps 1 x 350W UHP (dimmable)
Lamp lifetime Up to 2,000 hours (Full power), Up to 2,500 hours (Eco mode)
Lamp house, quick replace Yes
Lamp warranty 500 hours or 90 days
Sealed DLP™ core Yes
Orientation Table - ceiling (360 degrees through lamp axis)
3D Up to 2,560 x 1,600 @ 120Hz
Inputs 2x DisplayPort 1.2 (HBR2), 1 x DVI-Dual Link, 1 x HDMI 1.4a, 1 x VGA, 2x 3G-SDI, 1x HDBaseT
Input Resolutions 2,560 x 1,600 - 640 x 480 pixel resolution, RGBHV, RGBS, RGsB, custom formats available, HDTV (1080p, 1080i, 720p), NTSC, PAL, SECAM
Max. pixel clock Up to 600 Mhz (2,560 x 1,600@120 Hz max) DP 1.2
Up to 330 Mhz Dual link DVI
Software tools SimCAD, Projector Toolset
Control IR, RS232, Ethernet, USBA, 2x BNC sync, 1x MiniDIN
Network connection 10/100/1000 base-T, RJ-45 connection, RS-232
Power requirements 100-240V 50-60Hz
Power consumption less than 530W
Operational ambient temperature 10 - 40 °C /50 - 104 °F, 0-3,000m (Storage temperature: -20 - 60 °C/-4 - 140 °F)
Operating humidity 20 - 80% RH (Storage Conditions: 10 - 90% RH)
Dissipation BTU max 1,807 BTU/h
Dimensions (WxLxH) 342 x 306 x 143 mm / 13.46 x 12.05 x 5.63 in
Weight 7.5 kg / 16.5 lbs
Standard accessories Power cord, wireless remote control
Certifications Compliant with FCC, part 15 Class A and CCC, cCSAus, cUL, UL and CE
Warranty Limited 3 years parts and labour
